Dell PowerConnect 5324 User Manual

Configuring System Information 159
Defining the Local User Databases
The Local User Database page contains fields for defining users, passwords and access levels. To
open the
Local User Database page click System > Management Security > Local User Database
in the tree view.

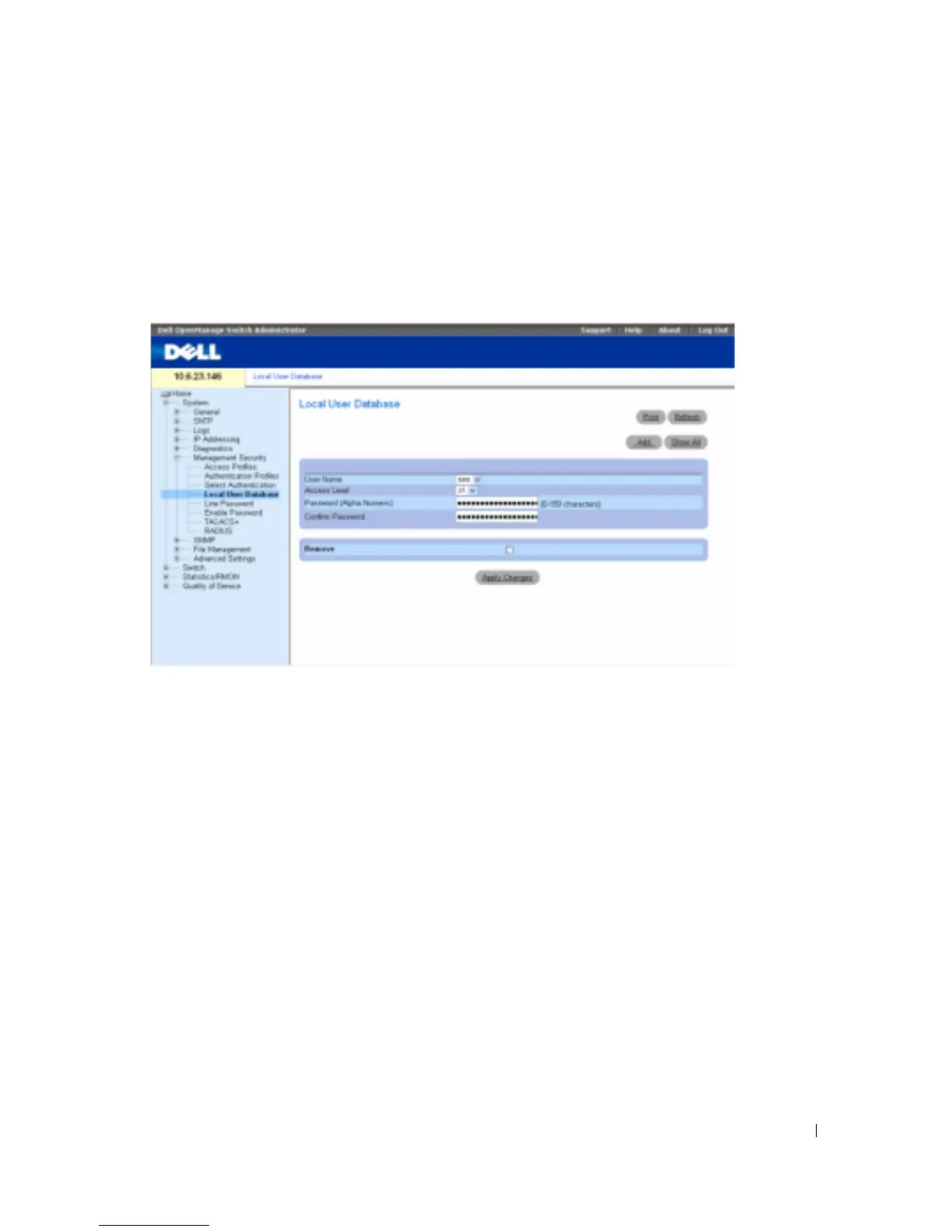

Figure 6-59. Local User Database
User Name — List of users.
Access Level — User access level. The lowest user access level is 1 , and the highest user access level
is
15 .
Password (0-159 Characters) — User-defined password. Local user database passwords can have a
maximum of 159 characters.
Confirm Password — Confirms the user-defined password.
Remove — When selected, removes users from the User Name list.
Assigning Access Rights to a User:
1 Open the Local User Database page.
2 Select a user in the User Name field.
3 Define the fields.
4 Click Apply Changes .
The user access rights and passwords are defined, and the device is updated.

Dell PowerConnect 5324 Specifications

General

Switching Capacity	48 Gbps
VLAN Support	Yes
Rack Mountable	Yes
Device Type	Switch
MAC Address Table Size	8K entries
RAM	64 MB
Flash Memory	8 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Jumbo Frame Support	Yes
Ports	24 x 10/100/1000 + 2 x SFP
Management	Web-based, SNMP, CLI
Enclosure Type	Rack-mountable
Routing Protocol	Static IP routing
Remote Management Protocol	SNMP 1, 2, 3
Features	Flow control, auto-negotiation, port mirroring, Quality of Service (QoS)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Operating Temperature	0 °C to 45 °C
Storage Temperature	-20 °C to 70 °C
Humidity	5% to 95% (non-condensing)
Layer	Layer 2
