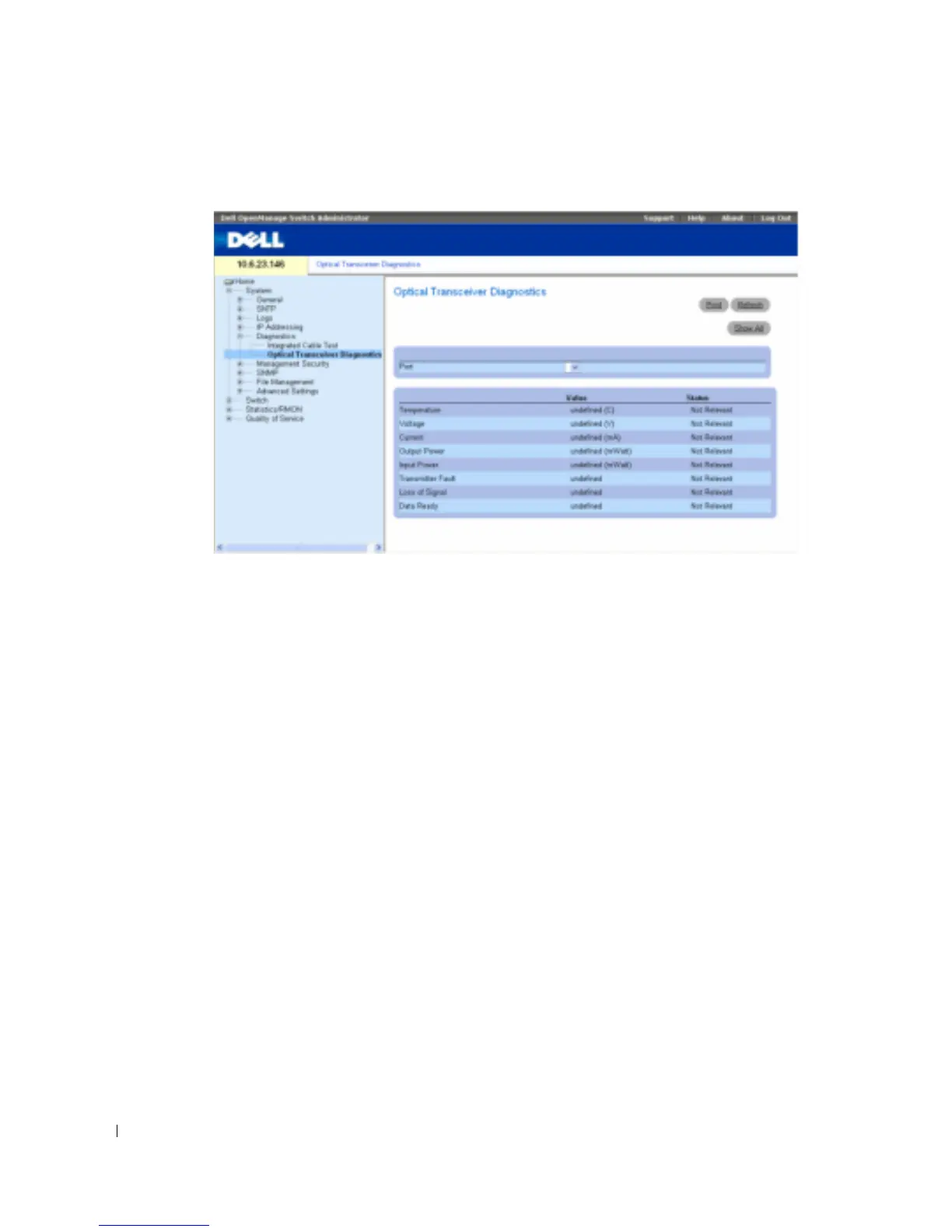

Figure 6-50. Optical Transceiver Diagnostics
Port — The port to which the fiber cable is connected.
Temperature — The temperature (in Celsius) at which the cable is operating.
Voltage — The voltage at which the cable is operating.
Current — The current at which the cable is operating.
Output Power — The rate at which the output power is transmitted.
Input Power — The rate at which the input power is transmitted.
Transmitter Fault — Indicates if a fault occurred during transmission.
Loss of Signal — Indicates if a signal loss occurred in the cable.
Data Ready — The transceiver has achieved power up and data is ready.
Displaying Optical Transceiver Diagnostics Test Results Table
1 Open the Optical Transceiver Diagnostics page.
2 Click Show All .
The test is run and the
Virtual Cable Test Results Table opens.
Performing Fiber Optic Cable Tests Using CLI Commands
The following table summarizes the equivalent CLI command for performing fiber optic cable
tests.

Dell PowerConnect 5324 Specifications

General

Switching Capacity	48 Gbps
VLAN Support	Yes
Rack Mountable	Yes
Device Type	Switch
MAC Address Table Size	8K entries
RAM	64 MB
Flash Memory	8 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Jumbo Frame Support	Yes
Ports	24 x 10/100/1000 + 2 x SFP
Management	Web-based, SNMP, CLI
Enclosure Type	Rack-mountable
Routing Protocol	Static IP routing
Remote Management Protocol	SNMP 1, 2, 3
Features	Flow control, auto-negotiation, port mirroring, Quality of Service (QoS)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Operating Temperature	0 °C to 45 °C
Storage Temperature	-20 °C to 70 °C
Humidity	5% to 95% (non-condensing)
Layer	Layer 2
