Dell PowerConnect 5324 User Manual

344 Configuring Quality of Service
www.dell.com | support.dell.com
Defining Queue Settings
The Global Queue Setting page contains fields for configuring the scheduling method by which
the queues are maintained. To open the
Global Queue Setting page click Quality of Service → CoS
Global Parameters → Queue Settings in the tree view.

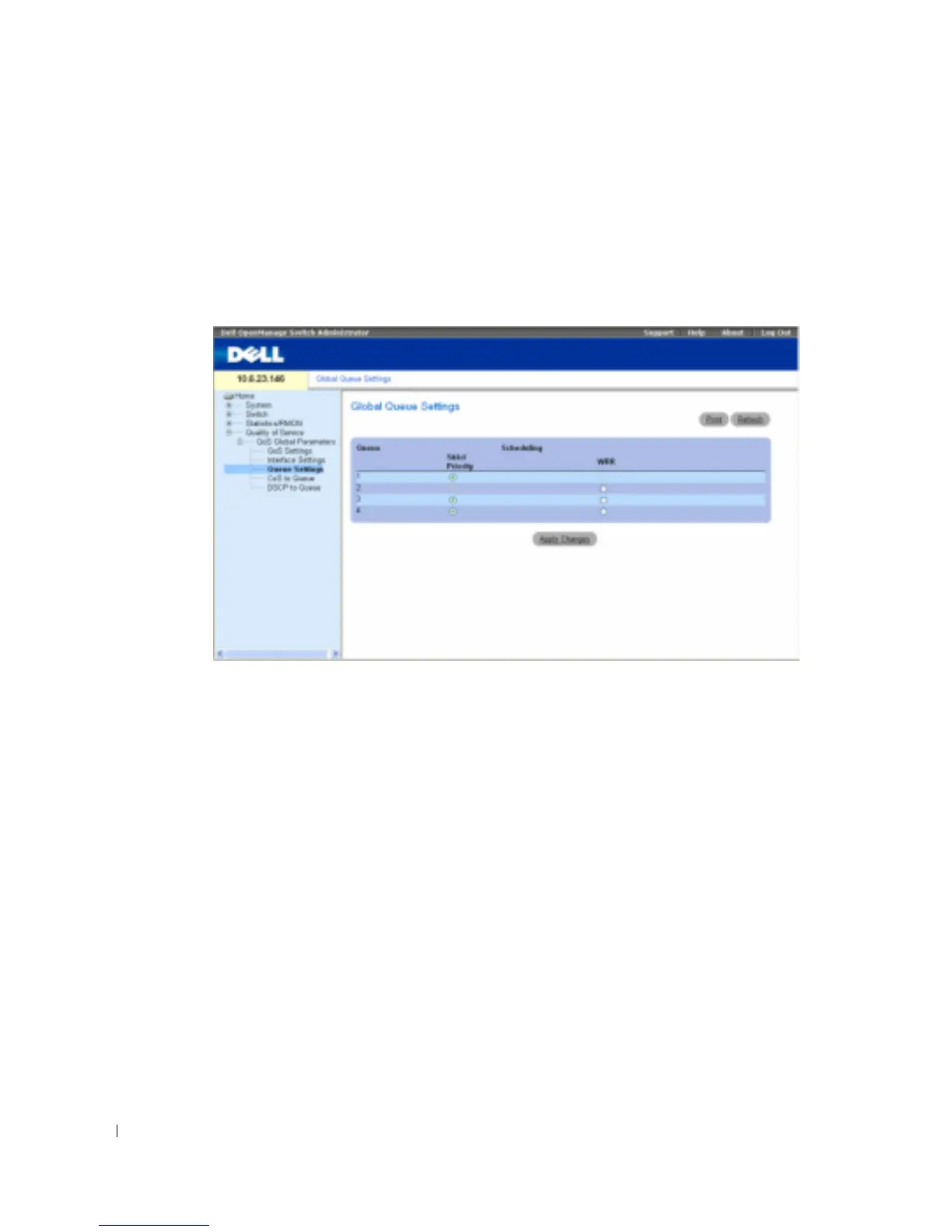

Figure 9-132. Global Queue Setting
Queues — The Queue number.
Strict Priority — Specifies if traffic scheduling is based strictly on the queue priority. The default is
enabled.
WRR — Specifies if traffic scheduling is based on the Weighted Round Robin (WRR) weights to
egress queues.
Defining the Queue Settings
1 Open the Global Queue Setting page.
2 Define the fields.
3 Click Apply Changes .
The queue settings are defined, and the device is updated.

Dell PowerConnect 5324 Specifications

General

Switching Capacity	48 Gbps
VLAN Support	Yes
Rack Mountable	Yes
Device Type	Switch
MAC Address Table Size	8K entries
RAM	64 MB
Flash Memory	8 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Jumbo Frame Support	Yes
Ports	24 x 10/100/1000 + 2 x SFP
Management	Web-based, SNMP, CLI
Enclosure Type	Rack-mountable
Routing Protocol	Static IP routing
Remote Management Protocol	SNMP 1, 2, 3
Features	Flow control, auto-negotiation, port mirroring, Quality of Service (QoS)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Operating Temperature	0 °C to 45 °C
Storage Temperature	-20 °C to 70 °C
Humidity	5% to 95% (non-condensing)
Layer	Layer 2
