Configuring Quality of Service 339
Defining CoS Global Parameters
Class of Service global parameters are set from the CoS Global Parameter pages.
To open the
QoS Settings page, click Quality of Service → CoS Global
Parameters
→ CoS Settings in the tree view.

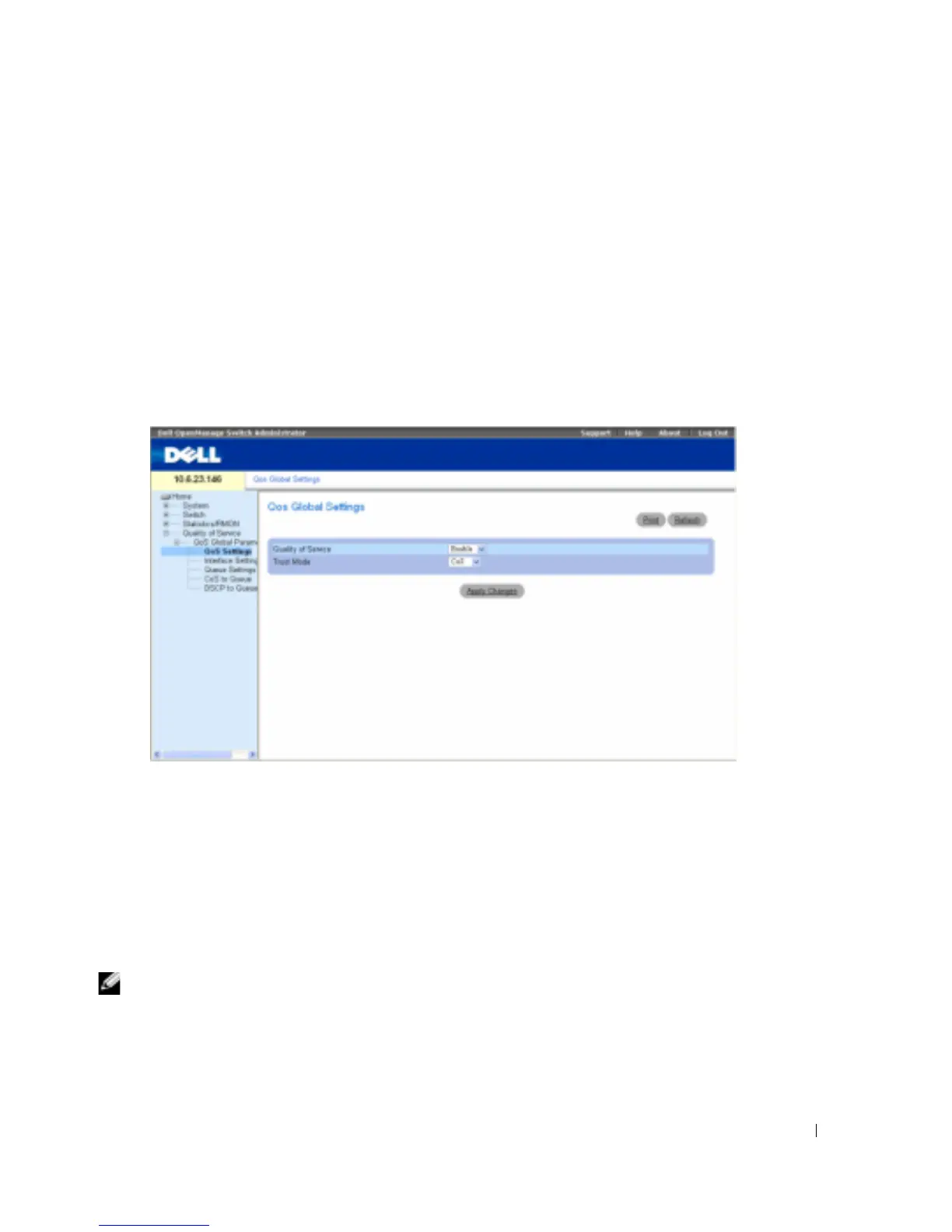

Figure 9-130. QoS Settings
Quality of Service — Enables or disables managing network traffic using Quality of Service.
Trust Mode — Determines which packet fields to use for classifying packets entering the device.
When no rules are defined the traffic containing the predefined packet field (CoS or DSCP) is
mapped according to the relevant trust modes table. Traffic not containing a predefined packet
field is mapped to best effort. The possible Trust Mode field values are:
CoS — The output queue assignment is determined by the IEEE802.1p VLAN priority tag
(VPT) or by the default VPT assigned to a port.
DSCP — The output queue assignment is determined by the DSCP field.
Enabling Quality of Service:
1 Open the QoS Settings page .
2 Select Enable in the CoS Mode field.
