Dell PowerConnect 5324 User Manual

Configuring System Information 97

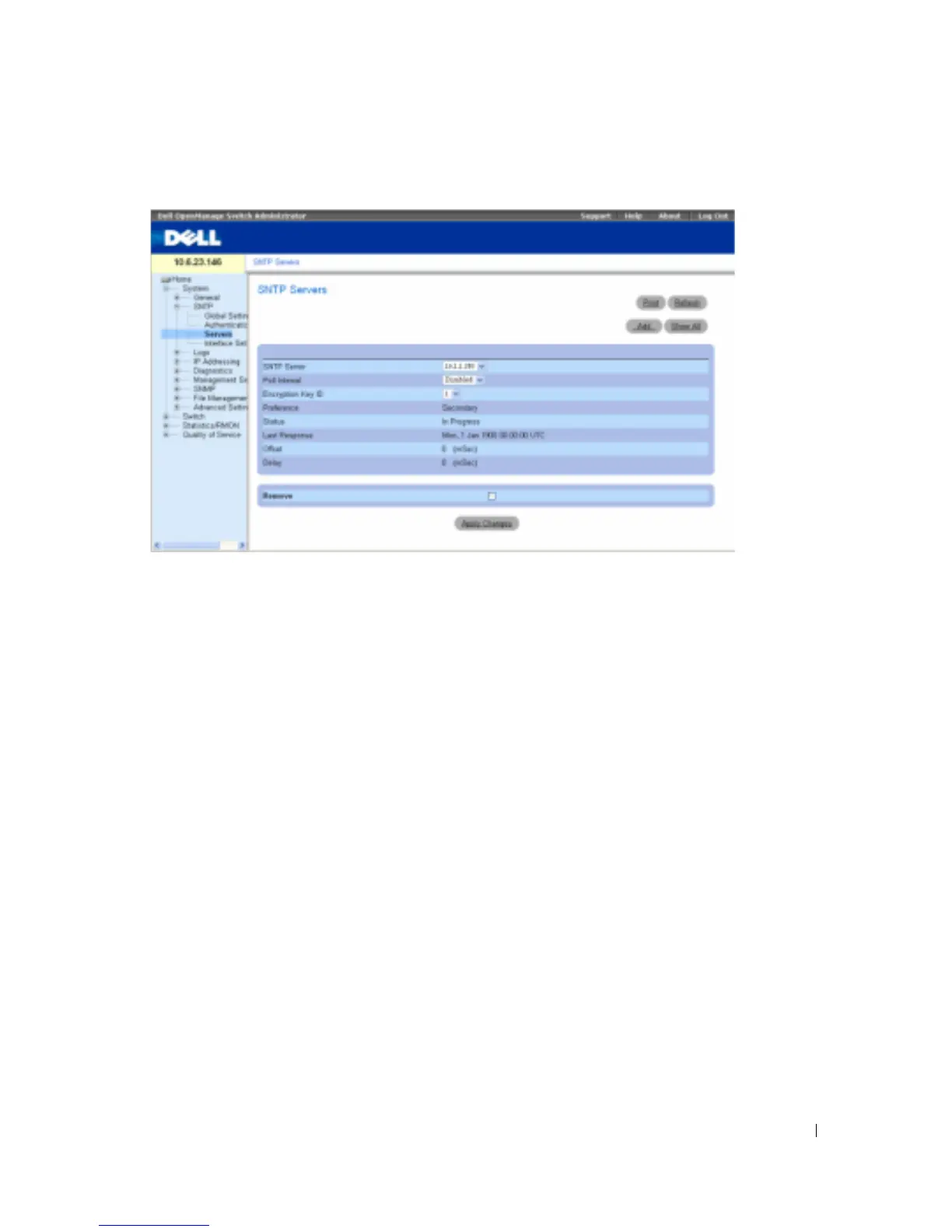

Figure 6-25. SNTP Servers
SNTP Server — Enter a user-defined SNTP server IP addresses or hostname. Up to eight SNTP
servers can be defined. This field can contain 1 - 158 characters.
Poll Interval — Enables polling the selected SNTP Server for system time information, when
enabled.
Encryption Key ID — Specifies the Key Identification used to communicate between the SNTP
server and device. The range is 1 - 4294967295.
Preference — The SNTP server providing SNTP system time information. The possible field values
are:
Primary — The primary server provides SNTP information.
Secondary — The backup server provides SNTP information.
Status Up — The operating SNTP server status The possible field values are:
Up — The SNTP server is currently operating normally.
Down — The SNTP server is currently not operating normally.
Unknown — The SNTP server status is currently unknown.
Last Response — The last time a response was received from the SNTP server.
Offset — Timestamp difference between the device local clock and the aquired time from the SNTP
server.
Delay — The amount of time it takes to reach the SNTP server.
Remove — Removes a specific SNTP server from the SNTP Server list, when selected.

Dell PowerConnect 5324 Specifications

General

Switching Capacity	48 Gbps
VLAN Support	Yes
Rack Mountable	Yes
Device Type	Switch
MAC Address Table Size	8K entries
RAM	64 MB
Flash Memory	8 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Jumbo Frame Support	Yes
Ports	24 x 10/100/1000 + 2 x SFP
Management	Web-based, SNMP, CLI
Enclosure Type	Rack-mountable
Routing Protocol	Static IP routing
Remote Management Protocol	SNMP 1, 2, 3
Features	Flow control, auto-negotiation, port mirroring, Quality of Service (QoS)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Operating Temperature	0 °C to 45 °C
Storage Temperature	-20 °C to 70 °C
Humidity	5% to 95% (non-condensing)
Layer	Layer 2
