Dell PowerConnect 5324 User Manual

Configuring Device Information 261
Defining VLAN Ports Settings
The VLAN Port Settings page contains fields for managing ports that are part of a VLAN. The port
default VLAN ID (PVID) is configured on the
VLAN Port Settings page. All untagged packets
arriving to the device are tagged by the ports PVID.
To open the
VLAN Port Settings page, click Switch → VLAN → Port Settings in the tree view.

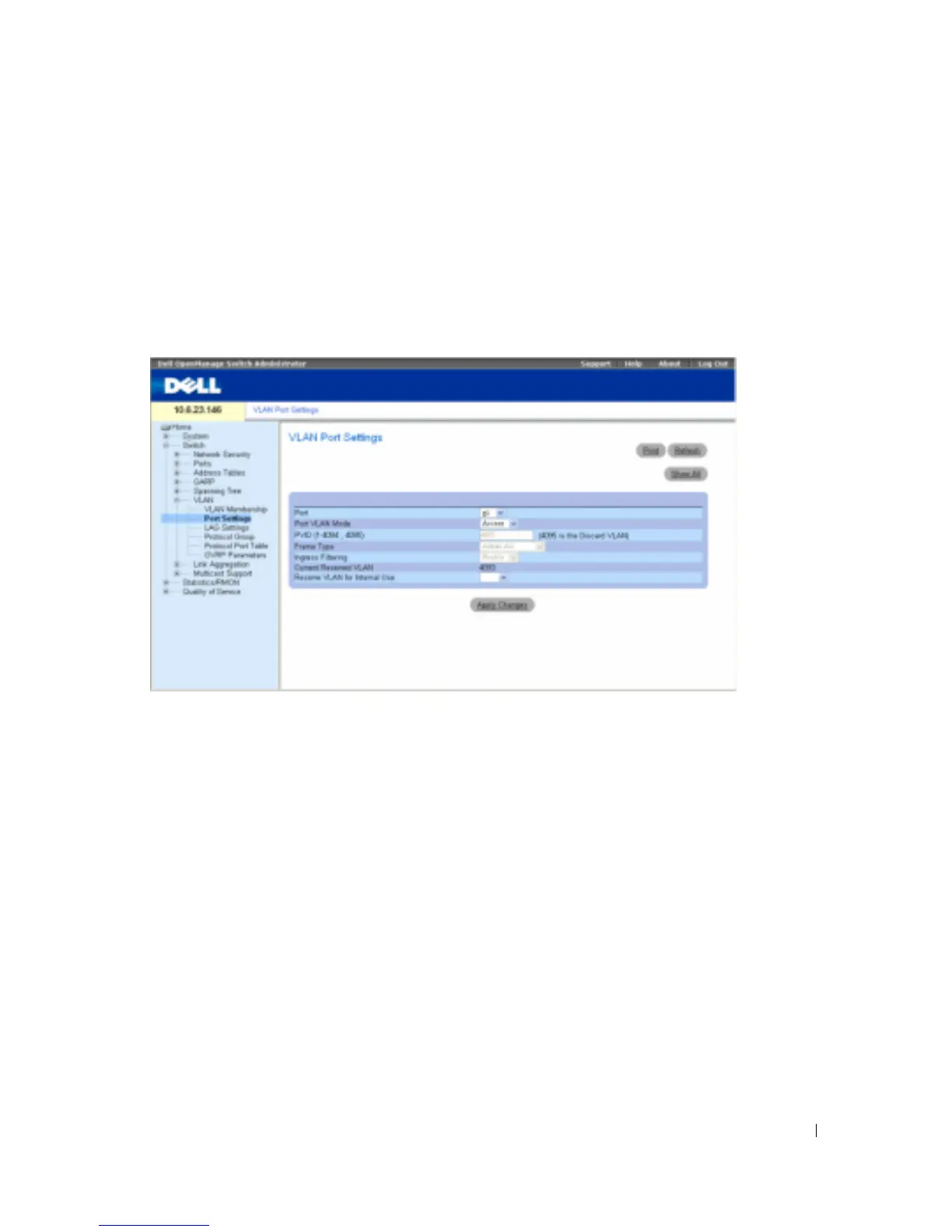

Figure 7-103. VLAN Port Settings
Port — The port number included in the VLAN.
Port VLAN Mode — The port mode. Possible values are:
General — The port belongs to VLANs, and each VLAN is user-defined as tagged or untagged
(full 802.1Q mode).
Access — The port belongs to a single untagged VLAN. When a port is in Access mode, the
packet types which are accepted on the port cannot be designated. Ingress filtering cannot be
enabled/disabled on an access port.
Trunk — The port belongs to VLANs in which all ports are tagged (except for one port that
can be untagged).
PVID — Assigns a VLAN ID to untagged packets. The possible values are 1-4094. VLAN 4095 is
defined as per standard and industry practice as the discard VLAN. Packets classified to the Discard
VLAN are dropped.
Frame Type — Packet type accepted on the port. Possible values are:
Admit Tag Only — Only tagged packets are accepted on the port.
Admit All — Both tagged and untagged packets are accepted on the port.

Dell PowerConnect 5324 Specifications

General

Switching Capacity	48 Gbps
VLAN Support	Yes
Rack Mountable	Yes
Device Type	Switch
MAC Address Table Size	8K entries
RAM	64 MB
Flash Memory	8 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Jumbo Frame Support	Yes
Ports	24 x 10/100/1000 + 2 x SFP
Management	Web-based, SNMP, CLI
Enclosure Type	Rack-mountable
Routing Protocol	Static IP routing
Remote Management Protocol	SNMP 1, 2, 3
Features	Flow control, auto-negotiation, port mirroring, Quality of Service (QoS)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Operating Temperature	0 °C to 45 °C
Storage Temperature	-20 °C to 70 °C
Humidity	5% to 95% (non-condensing)
Layer	Layer 2
