Installing the PowerConnect Device 39
e Under Properties , select VT100 for Emulation mode.
f Select Terminal keys for Function, Arrow, and Ctrl keys . Ensure that the setting is for
Terminal keys (not Windows keys ).
NOTICE: When using HyperTerminal with Microsoft® Windows 2000,ensure that Windows® 2000
Service Pack 2 or later is installed. With Windows 2000 Service Pack 2, the arrow keys function properly
in HyperTerminal’s VT100 emulation. Go to www.microsoft.com for information on Windows 2000 service
packs.
3
Connect the female connector of the RS-232 crossover cable directly to the device Console
port, and tighten the captive retaining screws.
The device Console port is located on the front panel.

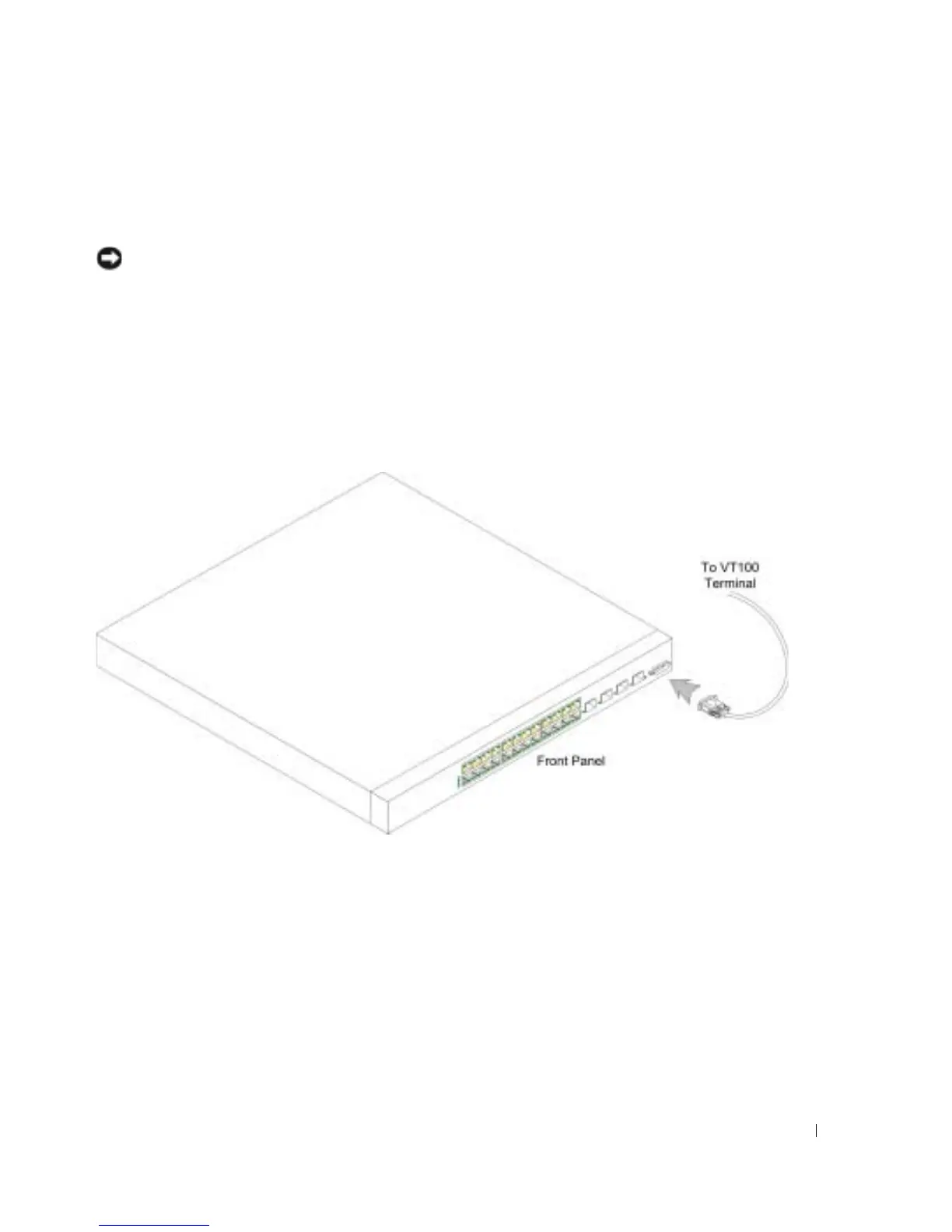

Figure 3-10. Connecting to PowerConnect 5324 Console Port
Connecting a Device to a Power Supply
1 Using a 5-foot (1.5 m) standard power cable with safety ground connected, connect the power
cable to the AC connector located on the back panel.
2 Connect the power cable to a grounded AC outlet.

Dell PowerConnect 5324 Specifications

General

Switching Capacity	48 Gbps
VLAN Support	Yes
Rack Mountable	Yes
Device Type	Switch
MAC Address Table Size	8K entries
RAM	64 MB
Flash Memory	8 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Jumbo Frame Support	Yes
Ports	24 x 10/100/1000 + 2 x SFP
Management	Web-based, SNMP, CLI
Enclosure Type	Rack-mountable
Routing Protocol	Static IP routing
Remote Management Protocol	SNMP 1, 2, 3
Features	Flow control, auto-negotiation, port mirroring, Quality of Service (QoS)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Operating Temperature	0 °C to 45 °C
Storage Temperature	-20 °C to 70 °C
Humidity	5% to 95% (non-condensing)
Layer	Layer 2
