Hardware Description 29
Hardware Description
Device Port Configurations
PowerConnect 5324 Front Panel Port Description
The PowerConnect 5324 device is configured with the following ports:
•
24 Copper ports — RJ-45 ports designated as 10/100/1000 BaseT Gigabit Ethernet ports
•
4 Fiber ports — Designated as Gigabit ports
•
Terminal port — RS-232 console based port
The following figure illustrates the PowerConnect 5324 front panel.

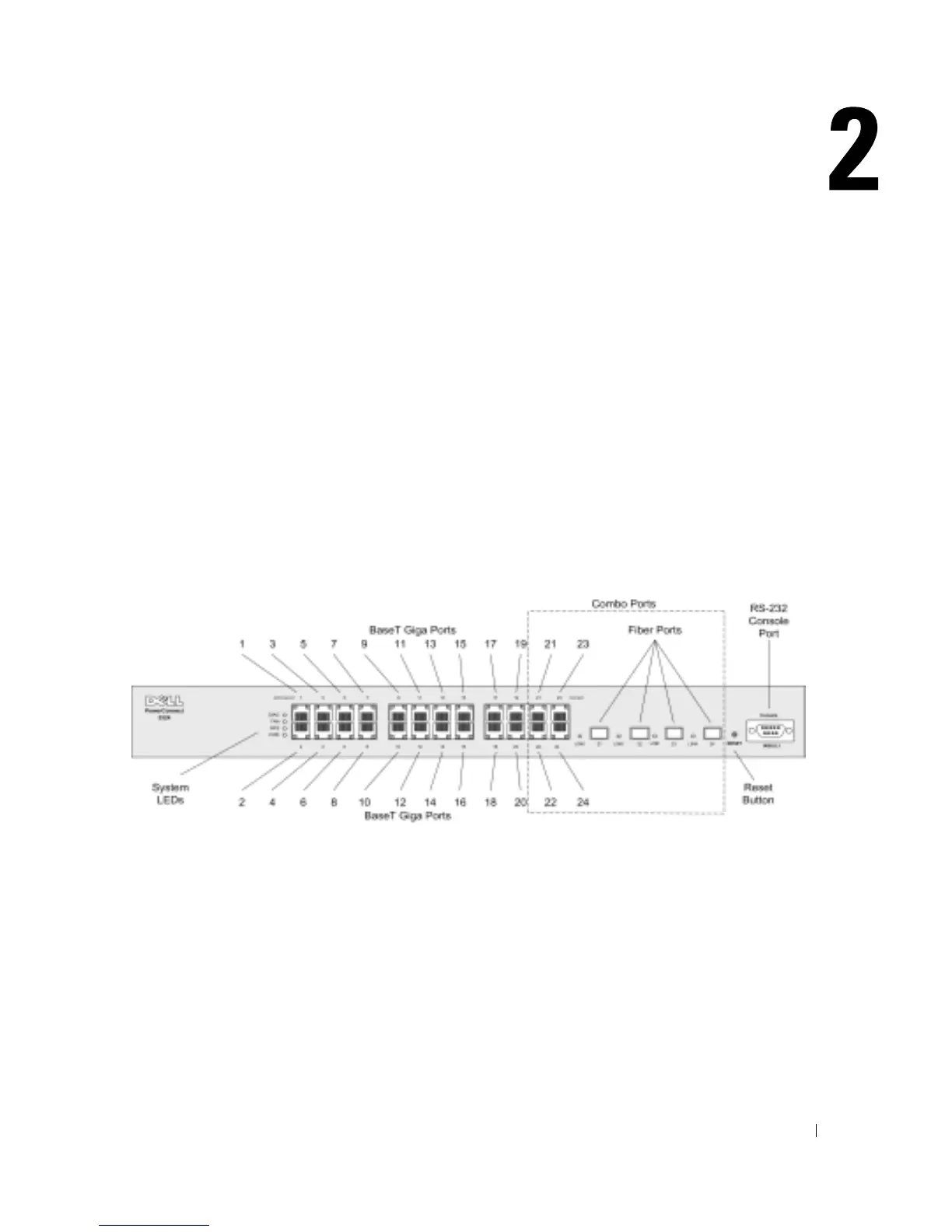

Figure 2-3. PowerConnect 5324 Front Panel
The front panel contains ports1-24, which are copper based RJ-45 ports, designated as 10/100/1000
Mbps and support both Half and Full Duplex modes. There are four SFP fiber ports which are
designated as Combo ports 21-24. A Combo port is a single logical port with two physical
connections. Only one physical connection can be active at a time, so either the copper ports or the
equivalent fiber ports 21-24 can be active, but they cannot both be active simultaneously. The
upper row of ports are marked by odd numbers 1-23 and the lower row of ports are marked with
even numbers 2-24.
On the front panel is an RS-232 Console port, all the device LEDs and a Reset Button which is
used to manually reset the device.

Dell PowerConnect 5324 Specifications

General

Switching Capacity	48 Gbps
VLAN Support	Yes
Rack Mountable	Yes
Device Type	Switch
MAC Address Table Size	8K entries
RAM	64 MB
Flash Memory	8 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Jumbo Frame Support	Yes
Ports	24 x 10/100/1000 + 2 x SFP
Management	Web-based, SNMP, CLI
Enclosure Type	Rack-mountable
Routing Protocol	Static IP routing
Remote Management Protocol	SNMP 1, 2, 3
Features	Flow control, auto-negotiation, port mirroring, Quality of Service (QoS)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Operating Temperature	0 °C to 45 °C
Storage Temperature	-20 °C to 70 °C
Humidity	5% to 95% (non-condensing)
Layer	Layer 2
