Dell PowerConnect 5324 User Manual

164 Configuring System Information
www.dell.com | support.dell.com
Defining Enable Password
The Modify Enable Password page sets a local password to control access to Normal, Privilege, and
Global Configuration. To open the
Modify Enable Password page, click System → Management
Security
→ Enable Passwords in the tree view.

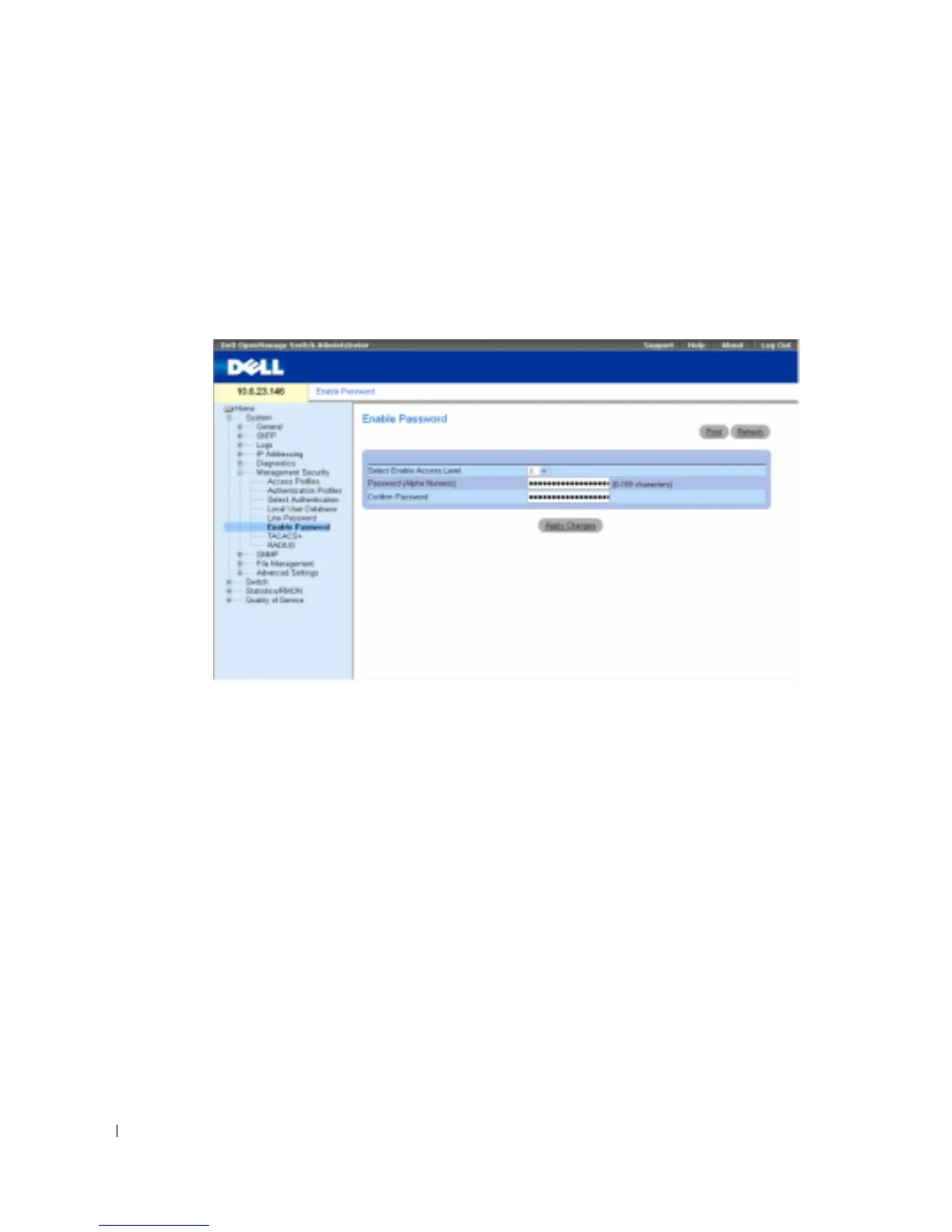

Figure 6-63. Modify Enable Password
Select Enable Access Level — Access level associated with the enable password. Possible field
values are 1-15.
Password (0-159 Characters) — The currently configured enable password. Enable passwords can
contain a maximum of 159 characters.
Confirm Password — Confirms the new enable password. The password appears in the *****
format.
Defining a New Enable Password:
1 Open the Modify Enable Password page .
2 Define the relevant fields.
3 Click Apply Changes .
The new Enable password is defined, and the device is updated.
Assigning Enable Passwords Using CLI Commands

Dell PowerConnect 5324 Specifications

General

Switching Capacity	48 Gbps
VLAN Support	Yes
Rack Mountable	Yes
Device Type	Switch
MAC Address Table Size	8K entries
RAM	64 MB
Flash Memory	8 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Jumbo Frame Support	Yes
Ports	24 x 10/100/1000 + 2 x SFP
Management	Web-based, SNMP, CLI
Enclosure Type	Rack-mountable
Routing Protocol	Static IP routing
Remote Management Protocol	SNMP 1, 2, 3
Features	Flow control, auto-negotiation, port mirroring, Quality of Service (QoS)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Operating Temperature	0 °C to 45 °C
Storage Temperature	-20 °C to 70 °C
Humidity	5% to 95% (non-condensing)
Layer	Layer 2
