Dell PowerConnect 5324 User Manual

Configuring Device Information 267
Defining VLAN Protocol Groups
The Protocol Group page provides parameters for configuring frame types to specific protocol
groups. To open the
Protocol Group page, click Switch → VLAN → Protocol Group in the tree view.

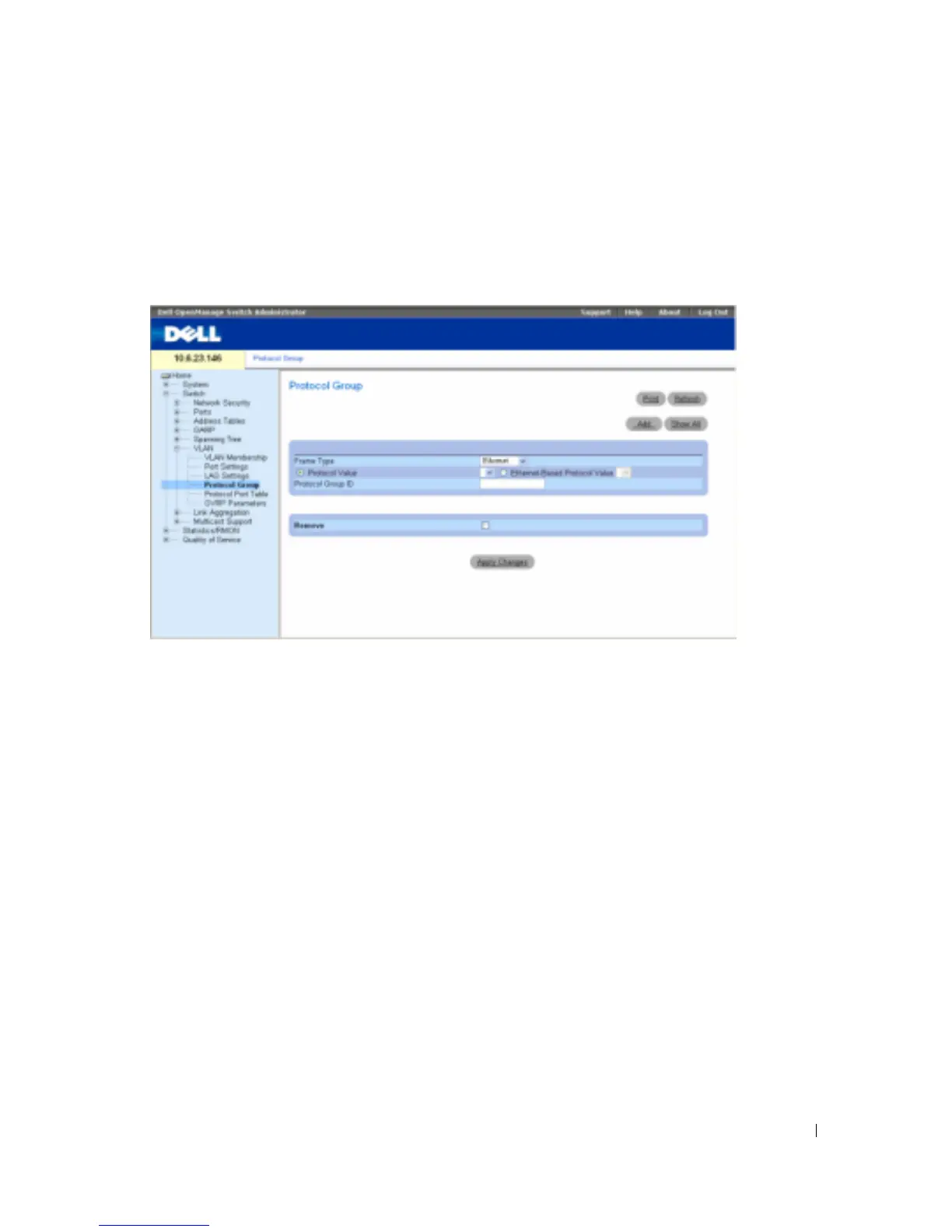

Figure 7-105. Protocol Group
Frame Type — The packet type. Possible field values are Ethernet , RFC1042 , and LLC Other .
Protocol Value — User-defined protocol name.
Ethernet-Based Protocol Value — The Ethernet protocol group type. The possible field values are
IP , IPX and IPV6 ..
Protocol Group ID — The VLAN Group ID number.
Remove —
Adding a Protocol Group
1 Open the Protocol Group page.
2 Click Add.
The Add Protocol to Group page opens.
3 Complete the fields on the page.
4 Click Apply Changes .
The protocol group is assigned, and the device is updated.
