Dell PowerConnect 5324 User Manual

178 Configuring System Information
www.dell.com | support.dell.com
SNMP Management Station — A list of management station IP addresses.
Community String — Functions as a password and used to authenticate the selected management
station to the device.
Access Mode — Defines the access rights of the community. The possible field values are:
Read Only — The management access is restricted to read-only, for all MIBs except the
community table, for which there is no access.
Read Write — The management access is read-write, for all MIBs except the community
table, for which there is no access.
SNMP Admin — The management access is read-write for all MIBs, including the
community table.
Remove — Removes a community, when selected.
Defining a New Community
1 Open the SNMP Community page.
2 Click Add .
The
Add SNMP Community page opens:

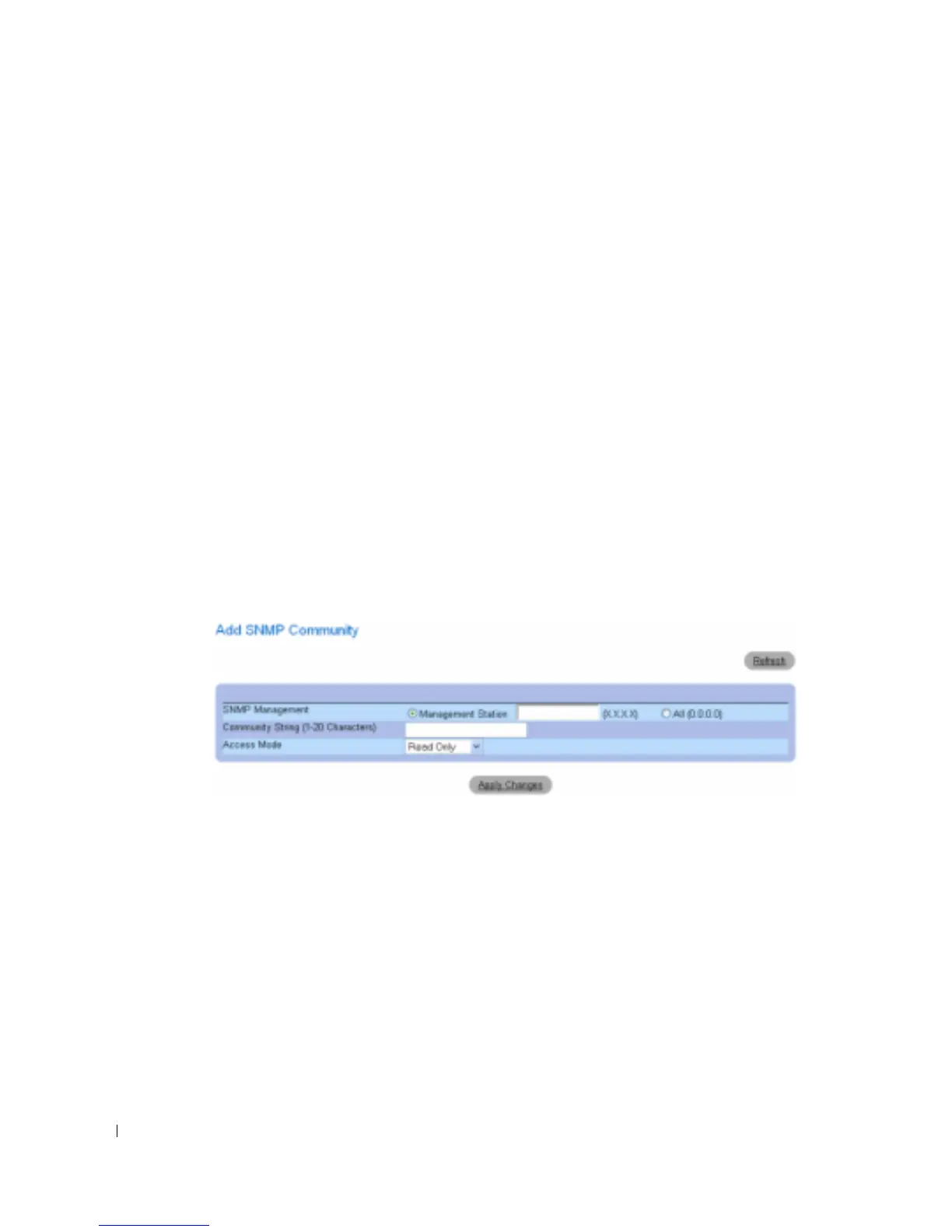

Figure 6-71. Add SNMP Community
3
Select one of the following:
Management Station — Defines an SNMP community for a specific management station. (A
value of 0.0.0.0 specifies all management stations.)
All — Defines an SNMP community for all management stations.
4 Define the remaining fields.
5 Click Apply Changes .
The new community is saved, and the device is updated.

Dell PowerConnect 5324 Specifications

General

Switching Capacity	48 Gbps
VLAN Support	Yes
Rack Mountable	Yes
Device Type	Switch
MAC Address Table Size	8K entries
RAM	64 MB
Flash Memory	8 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Jumbo Frame Support	Yes
Ports	24 x 10/100/1000 + 2 x SFP
Management	Web-based, SNMP, CLI
Enclosure Type	Rack-mountable
Routing Protocol	Static IP routing
Remote Management Protocol	SNMP 1, 2, 3
Features	Flow control, auto-negotiation, port mirroring, Quality of Service (QoS)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Operating Temperature	0 °C to 45 °C
Storage Temperature	-20 °C to 70 °C
Humidity	5% to 95% (non-condensing)
Layer	Layer 2
