The RJ-45 LED indications are described in the following table:
SFP LEDs
The SFP ports each have one LED marked as LNK.

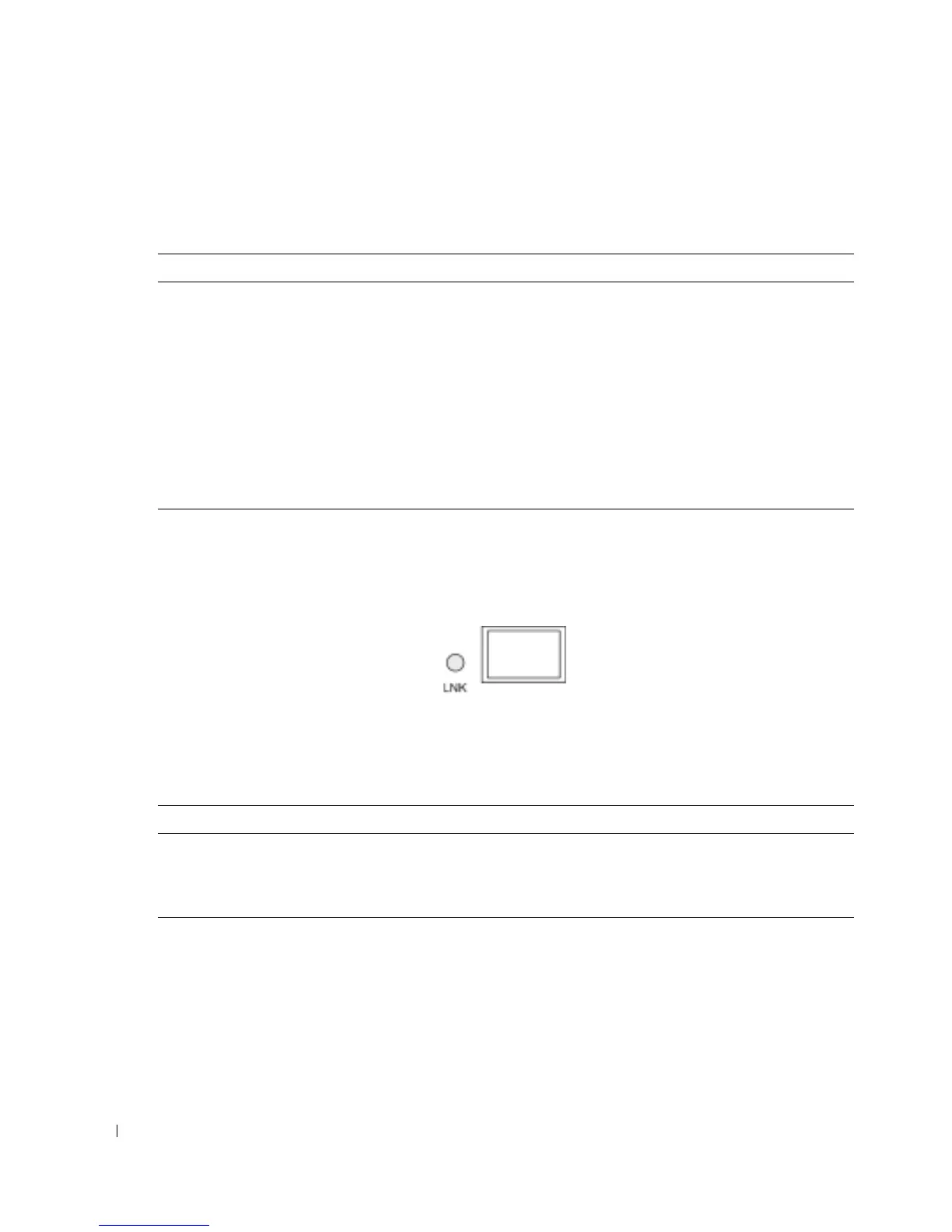

Figure 2-7. SFP Port LED
The SFP port LED indications are described in the following table:
When the SFP port is connected, the Duplex LED on the corresponding copper Combo port is
Green.
System LEDs
The system LEDs, located on the left side of the front panel, provide information about the power
supplies, fans, thermal conditions, and diagnostics. Figure 2-8 illustrates the system LEDs.
Table 2-1. RJ-45 Copper based 10/100/1000BaseT LED Indications
LED Color Description
Left LED Green Static The port is linked at 1000 Mbps.
Green Flashing The port is transmitting or receiving data at 1000
Mbps.
Orange Static The port is linked at either 10 or 100 Mbps.
Orange Flashing The port is transmitting or receiving data at
either 10 or 100 Mbps.
Right LED Green The port is currently transmitting in Full Duplex
mode.
OFF The port is operating in Half Duplex mode.
Table 2-2. SFP Port LED Indications
LED Color Description
SFP Green Static The port is currently up.
Green Flashing The port is currently transmitting or receiving data.
OFF The port is currently down.

Dell PowerConnect 5324 Specifications

General

Switching Capacity	48 Gbps
VLAN Support	Yes
Rack Mountable	Yes
Device Type	Switch
MAC Address Table Size	8K entries
RAM	64 MB
Flash Memory	8 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Jumbo Frame Support	Yes
Ports	24 x 10/100/1000 + 2 x SFP
Management	Web-based, SNMP, CLI
Enclosure Type	Rack-mountable
Routing Protocol	Static IP routing
Remote Management Protocol	SNMP 1, 2, 3
Features	Flow control, auto-negotiation, port mirroring, Quality of Service (QoS)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Operating Temperature	0 °C to 45 °C
Storage Temperature	-20 °C to 70 °C
Humidity	5% to 95% (non-condensing)
Layer	Layer 2
