Dell PowerConnect 5324 User Manual

166 Configuring System Information
www.dell.com | support.dell.com

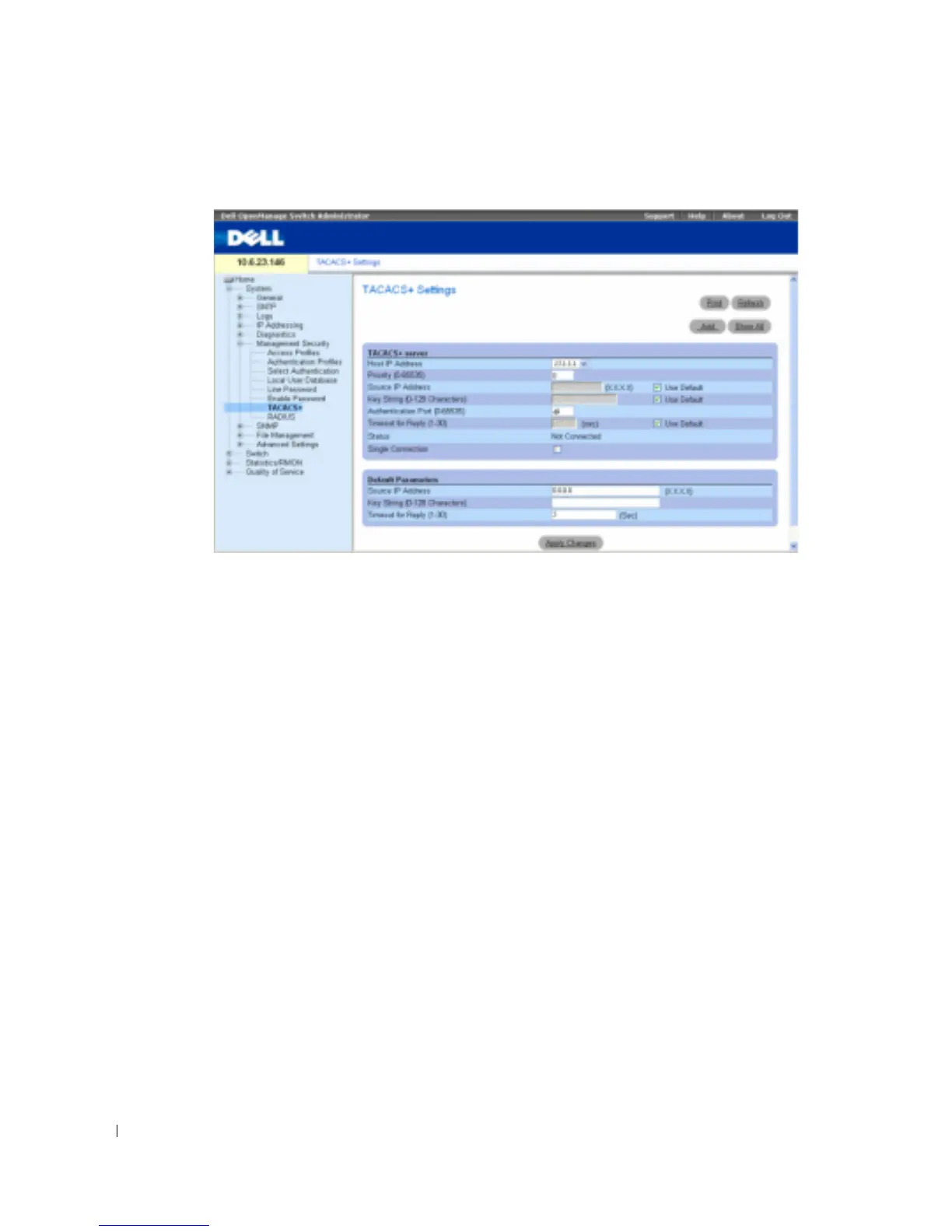

Figure 6-64. TACACS+ Settings
Host IP Address — Specifies the TACACS+ Server IP address.
Priority (0-65535) — Specifies the order in which the TACACS+ servers are used. The default is 0.
Source IP Address — The device source IP address used for the TACACS+ session between the
device and the TACACS+ server.
Key String (0-128 Characters) — Defines the authentication and encryption key for TACACS+
communications between the device and the TACACS+ server. This key must match the
encryption used on the TACACS+ server.
Authentication Port (0-65535) — The port number through which the TACACS+ session occurs.
The default is port 49.
Reply Timeout (1-30) (Sec) — The amount of time that passes before the connection between the
device and the TACACS+ server times out. The field range is 1-30 seconds.
Status — The connection status between the device and the TACACS+ server. The possible field
values are:
Connected — There is currently a connection between the device and the TACACS+ server.
Not Connected — There is not currently a connection between the device and the
TACACS+ server.
Single Connection — Maintains a single open connection between the device and the TACACS+
server when selected

Dell PowerConnect 5324 Specifications

General

Switching Capacity	48 Gbps
VLAN Support	Yes
Rack Mountable	Yes
Device Type	Switch
MAC Address Table Size	8K entries
RAM	64 MB
Flash Memory	8 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Jumbo Frame Support	Yes
Ports	24 x 10/100/1000 + 2 x SFP
Management	Web-based, SNMP, CLI
Enclosure Type	Rack-mountable
Routing Protocol	Static IP routing
Remote Management Protocol	SNMP 1, 2, 3
Features	Flow control, auto-negotiation, port mirroring, Quality of Service (QoS)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Operating Temperature	0 °C to 45 °C
Storage Temperature	-20 °C to 70 °C
Humidity	5% to 95% (non-condensing)
Layer	Layer 2
