Viewing Statistics 321
Defining Device RMON Events
The
RMON Events Control
page contains fields for defining RMON events. To open the
RMON
Events Control
page, click
Statistics/RMON
RMON
Events Control
in the tree view.

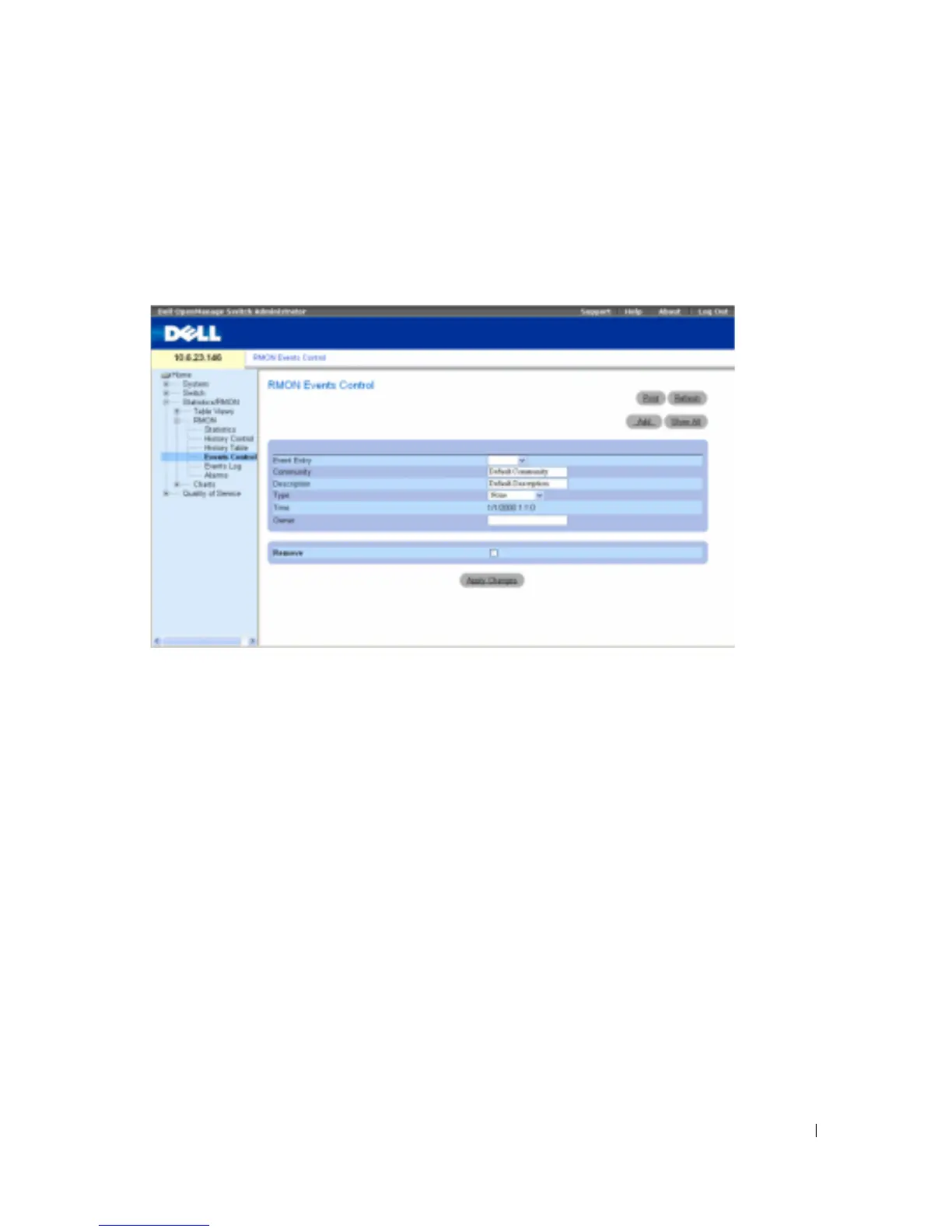

Figure 8-124. RMON Events Control
Event Entry
— The event.
Community
— Community to which the event belongs.
Description
— User-defined event description.
Ty p e
— Describes the event type. Possible values are:
Log
— Event type is a log entry.
Trap
— Event type is a trap.
Log and Trap
— Event type is both a log entry and a trap.
None
— There is no event.
Time
Owner
— The device or user that defined the event.
Remove
— When selected, removes the event from the
RMON Events Table
.
Adding an RMON Event
1
Open the
RMON Events Control
page.
2
Click
Add
.
