Hardware Description 31
Combo Ports
A combo port is a single logical port with two physical connections:
• A RJ-45 connection for Twisted Pair copper cabling
• A SFP connection for various fiber-based modules
Only one of the two physical connections of a combo port may be used at any one time. Port
features and available port controls are determined by the physical connection used.
The system automatically detects the media used on a combo port, and utilizes this information in
all operations and control interfaces.
If both RJ-45 and SFP are present, and a connector is inserted in the SFP port, the SFP port is
active, unless the copper connector of the Base-T port of the same number is inserted and has a
link.
The system can switch from the RJ-45 to the SFP (or vice-versa) without a system reboot or reset.
Physical Dimensions
The device has the following physical dimensions:
• Height — 44 mm (1.73 inch)
• Width — 440 mm (17.32 inch)
• Depth — 255 mm (10.03 inch)
LED Definitions
The front panel contains light emitting diodes (LED) that indicate the status of links, power
supplies, fans, and system diagnostics.
Port LEDs
10/100/1000 Base-T Port LEDs
Each 10/100/1000 Base-T port has two LEDs. Speed/link/activity is indicated on the left LED and
the duplex mode is indicated on the right LED.

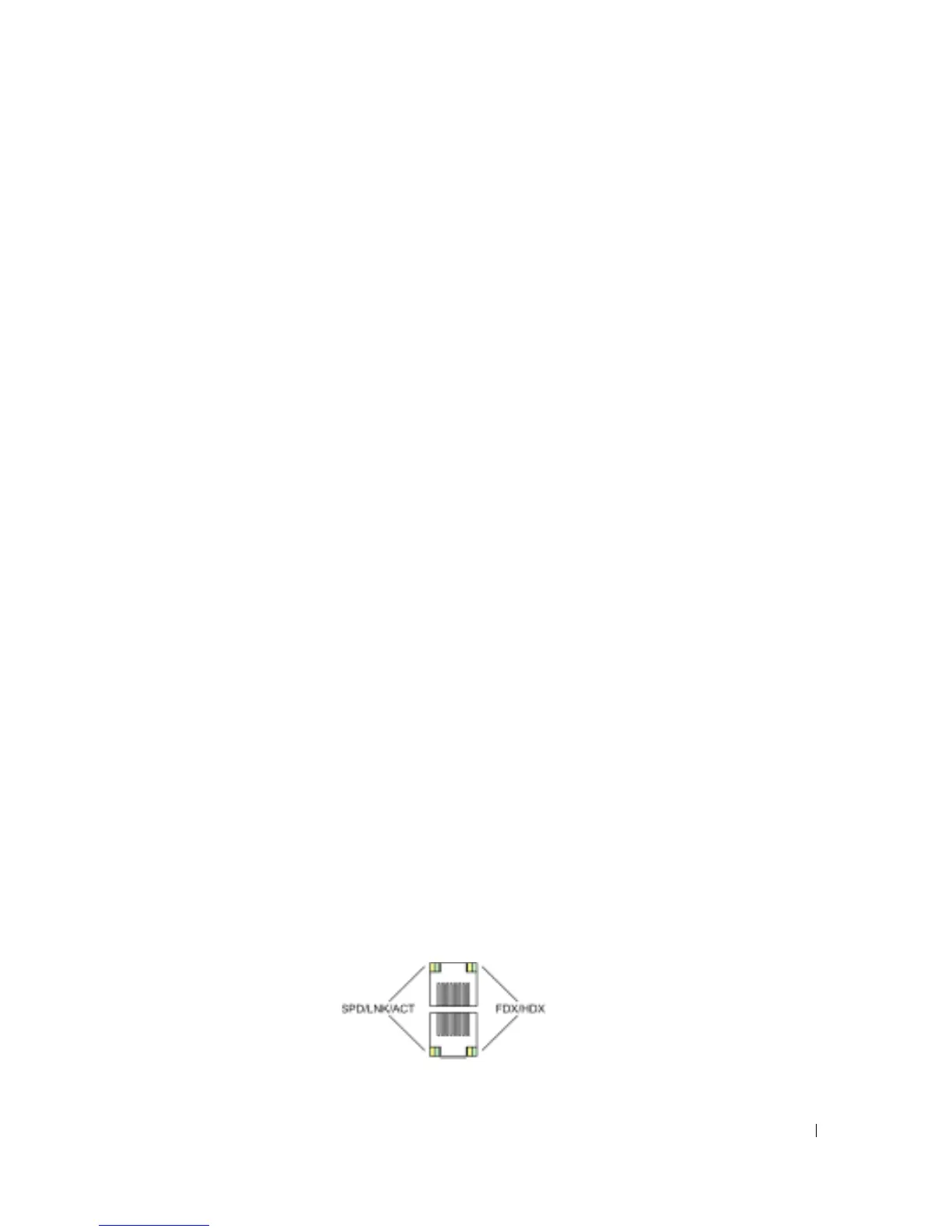

Figure 2-6. RJ-45 Copper based 10/100/1000 BaseT LEDs

Dell PowerConnect 5324 Specifications

General

Switching Capacity	48 Gbps
VLAN Support	Yes
Rack Mountable	Yes
Device Type	Switch
MAC Address Table Size	8K entries
RAM	64 MB
Flash Memory	8 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Jumbo Frame Support	Yes
Ports	24 x 10/100/1000 + 2 x SFP
Management	Web-based, SNMP, CLI
Enclosure Type	Rack-mountable
Routing Protocol	Static IP routing
Remote Management Protocol	SNMP 1, 2, 3
Features	Flow control, auto-negotiation, port mirroring, Quality of Service (QoS)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Operating Temperature	0 °C to 45 °C
Storage Temperature	-20 °C to 70 °C
Humidity	5% to 95% (non-condensing)
Layer	Layer 2
