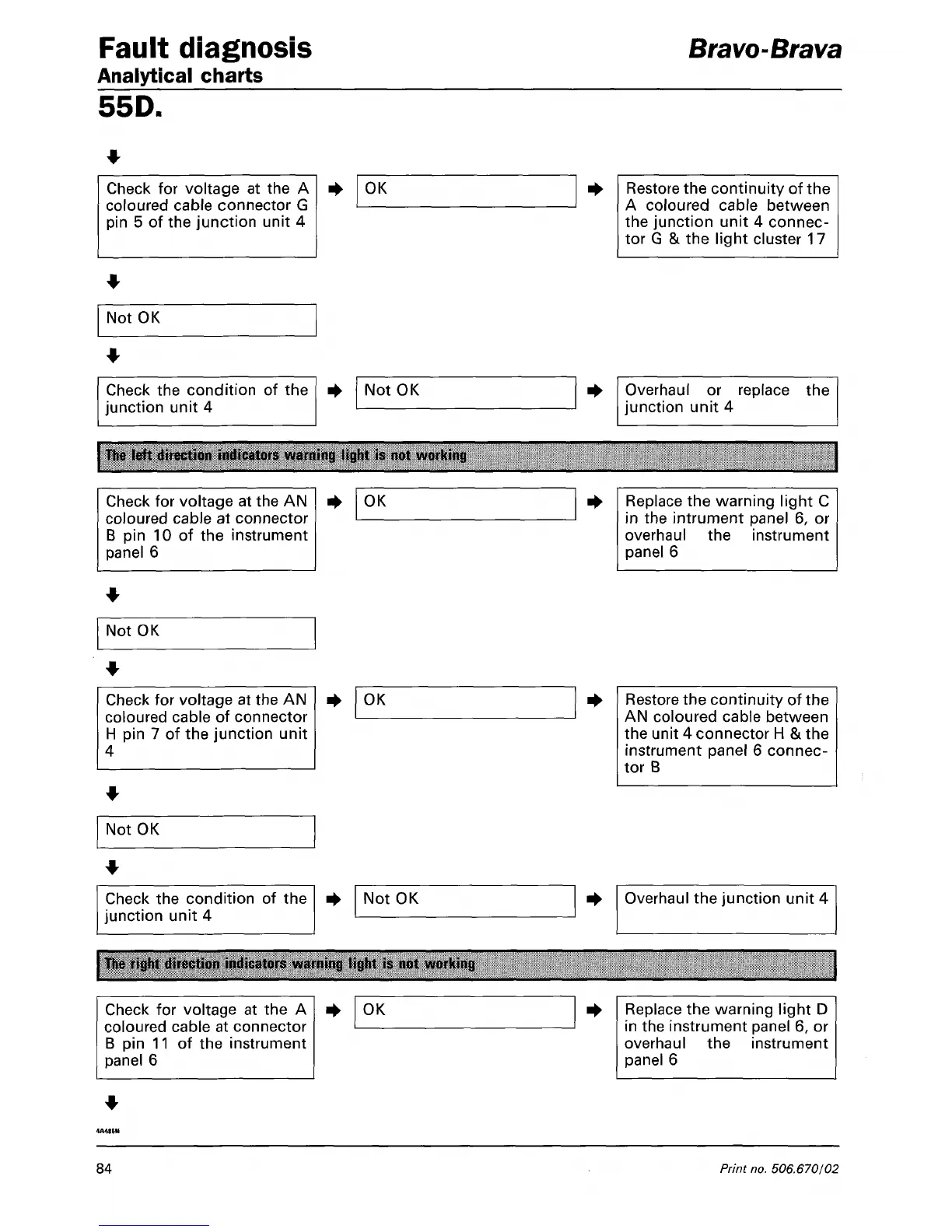

Fault diagnosis
Analytical charts
Bravo-Brava
55D.
Check for voltage at the A
coloured cable connector G
pin 5 of the junction unit 4
OK Restore the continuity of the
A coloured cable between
the junction unit 4 connec-
tor G & the light cluster 17
Not OK
Check the condition of the
junction unit 4
Not OK Overhaul or replace the
junction unit 4
The left direction indicators warning light is not working
Check for voltage at the AN
coloured cable at connector
B pin 10 of the instrument
panel 6
OK Replace the warning light C
in the intrument panel 6, or
overhaul the instrument
panel 6
Not OK
Check for voltage at the AN
coloured cable of connector
H pin 7 of the junction unit
4
OK Restore the continuity of the
AN coloured cable between
the unit 4 connector H & the
instrument panel 6 connec-
tor B
Not OK
Check the condition of the
junction unit 4
Not OK Overhaul the junction unit 4
The right direction indicators warning light is not working
Check for voltage at the A
coloured cable at connector
B pin 11 of the instrument
panel 6
OK
Replace the warning light D
in the instrument panel 6, or
overhaul the instrument
panel 6
84 Print
no.
506.670/02
