Electrical equipment
Air bag
Bravo-Brava
w^.

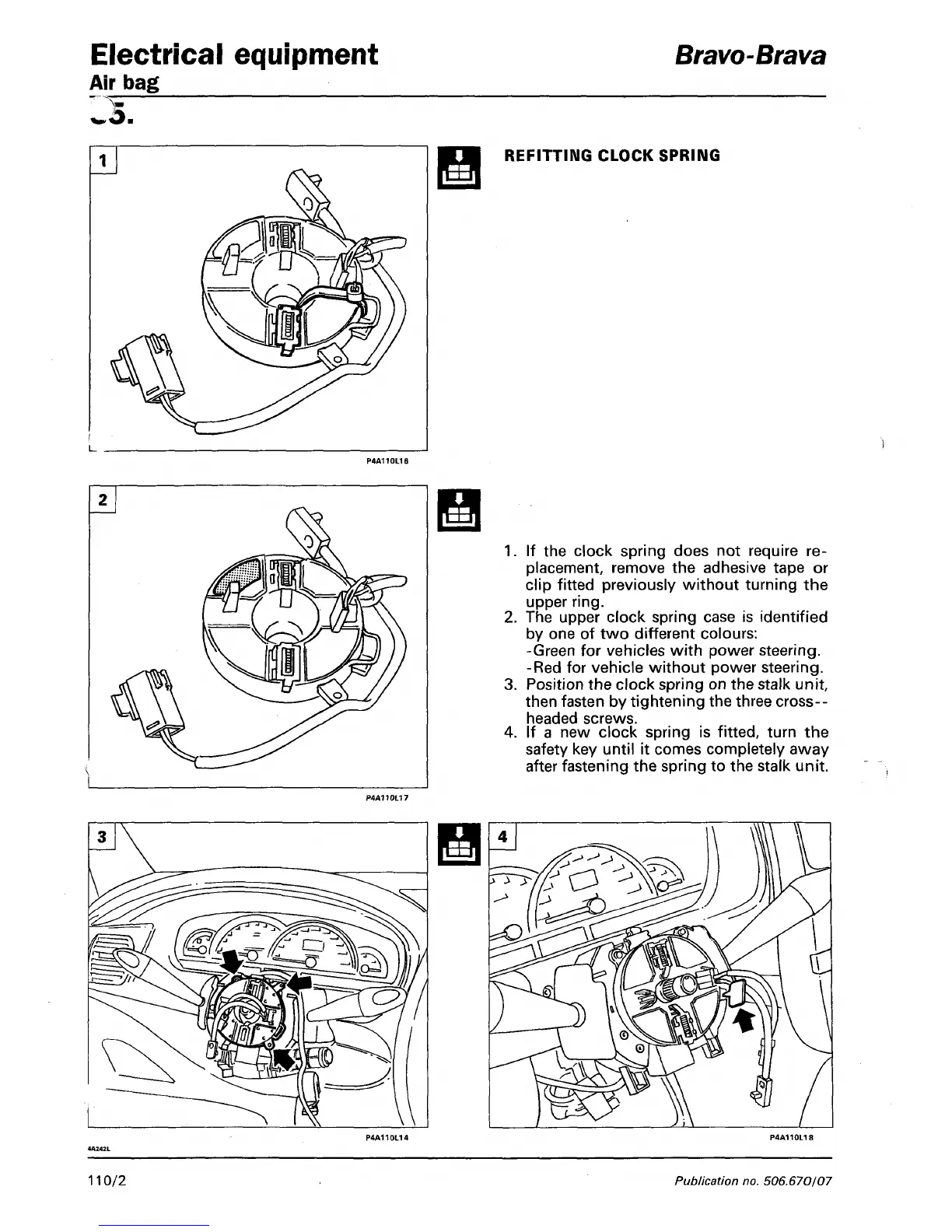

REFITTING CLOCK SPRING
1.
If the clock spring does not require re-
placement, remove the adhesive tape or
clip fitted previously without turning the
upper
ring.
2.
The upper clock spring case is identified
by one of two different colours:
-Green for vehicles with power steering.
-Red for vehicle without power steering.
3. Position the clock spring on the stalk unit,
then fasten by tightening the three cross-
headed screws.
4.
If a new clock spring is fitted, turn the
safety key until it comes completely away
after fastening the spring to the stalk unit.
110/2
Publication no. 506.670/07
