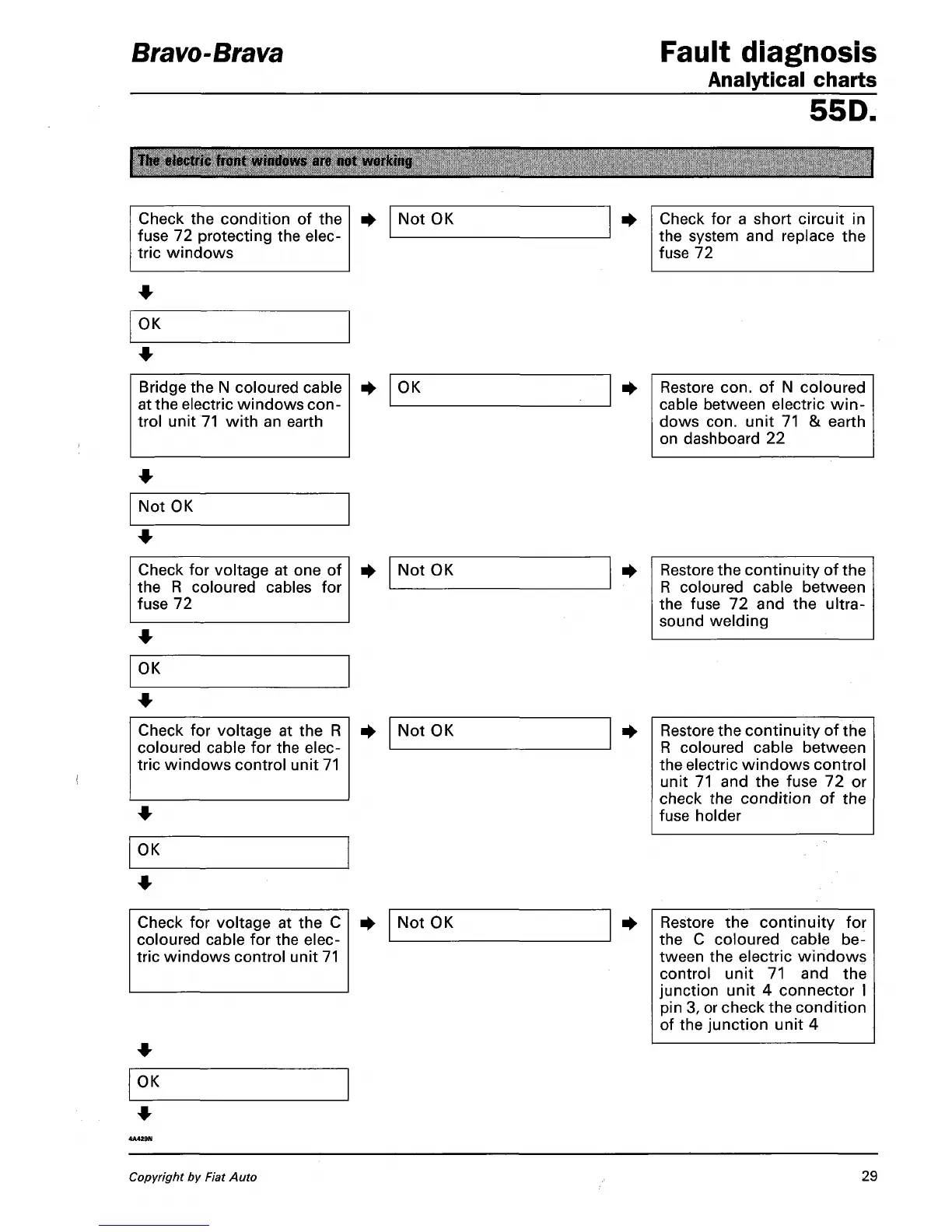

Bravo-Brava Fault diagnosis
Analytical charts
55D.
The electric front windows are not working
Check the condition of the
fuse 72 protecting the elec-
tric windows
Not OK
Check for a short circuit in
the system and replace the
fuse 72
OK
Bridge the N coloured cable
at the electric windows con-
trol unit 71 with an earth
OK
Restore con. of N coloured
cable between electric win-
dows con. unit 71 & earth
on dashboard 22
Not OK
Check for voltage at one of
the R coloured cables for
fuse 72
Not OK
OK
Restore the continuity of the
R coloured cable between
the fuse 72 and the ultra-
sound welding
Check for voltage at the R
coloured cable for the elec-
tric windows control unit 71
Not OK
OK
Restore the continuity of the
R coloured cable between
the electric windows control
unit 71 and the fuse 72 or
check the condition of the
fuse holder
Check for voltage at the C
coloured cable for the elec-
tric windows control unit 71
Not OK
Restore the continuity for
the C coloured cable be-
tween the electric windows
control unit 71 and the
junction unit 4 connector I
pin 3, or check the condition
of the junction unit 4
OK
