Bodywork
Sun roof
Bravo-Brava
70.
Removing trim

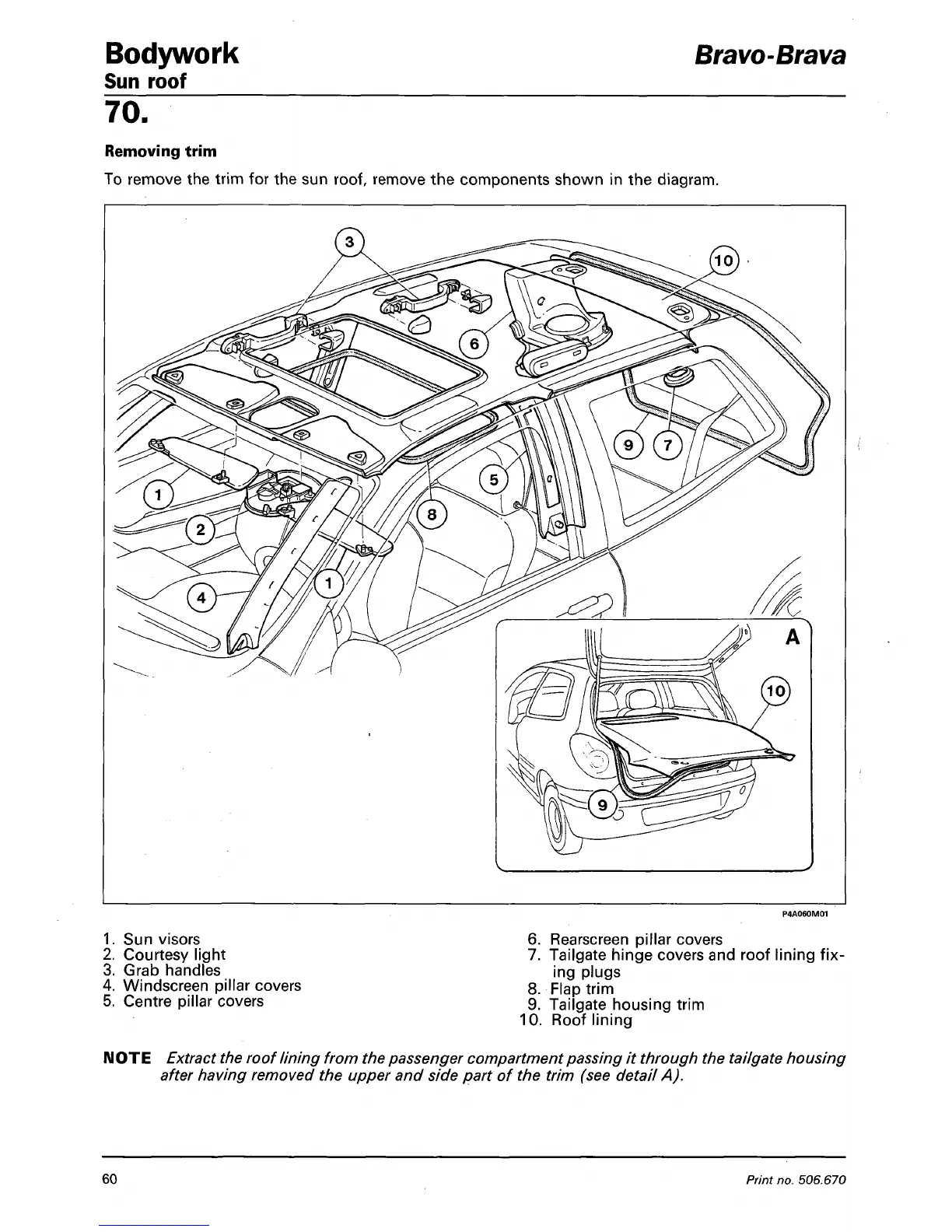

To remove the trim for the sun roof, remove the components shown in the diagram.
1.
Sun visors
2.
Courtesy light
3. Grab handles
4.
Windscreen pillar covers
5. Centre pillar covers
6. Rearscreen pillar covers
7. Tailgate hinge covers and roof lining fix-
ing plugs
8. Flap trim
9. Tailgate housing trim
10.
Roof lining
IM OTE Extract the roof lining from the passenger compartment passing it through the tailgate housing
after having removed the upper and side part of the trim (see detail A).
