Fiat Brava - Replacing Lock Barrel (3 D)

Bravo
Bodywork
Tail-gate
70-

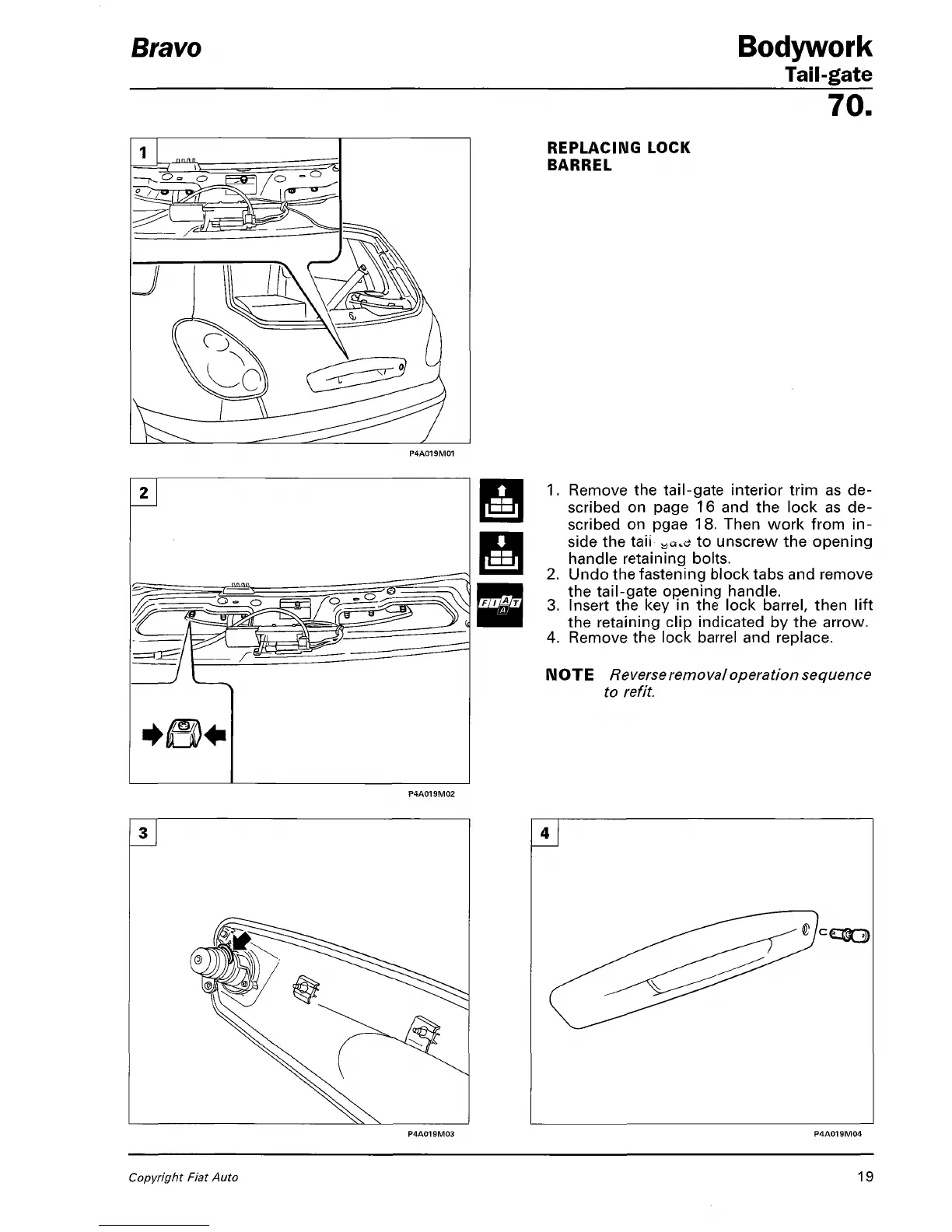

REPLACING LOCK
BARREL
1. Remove the tail-gate interior trim as de-
scribed on page 16 and the lock as de-
scribed on pgae 18. Then work from in-
side the taii
y
a.e to unscrew the opening
handle retaining bolts.
2. Undo the fastening block tabs and remove
the tail-gate opening handle.
3. Insert the key in the lock barrel, then lift
the retaining clip indicated by the arrow.
4. Remove the lock barrel and replace.
NOTE Reverse removal operation sequence
to refit.
P4A019M02
QO
P4A019M03 P4A019M04
Copyright Fiat Auto
19
