Seat belt pretensioner
70.

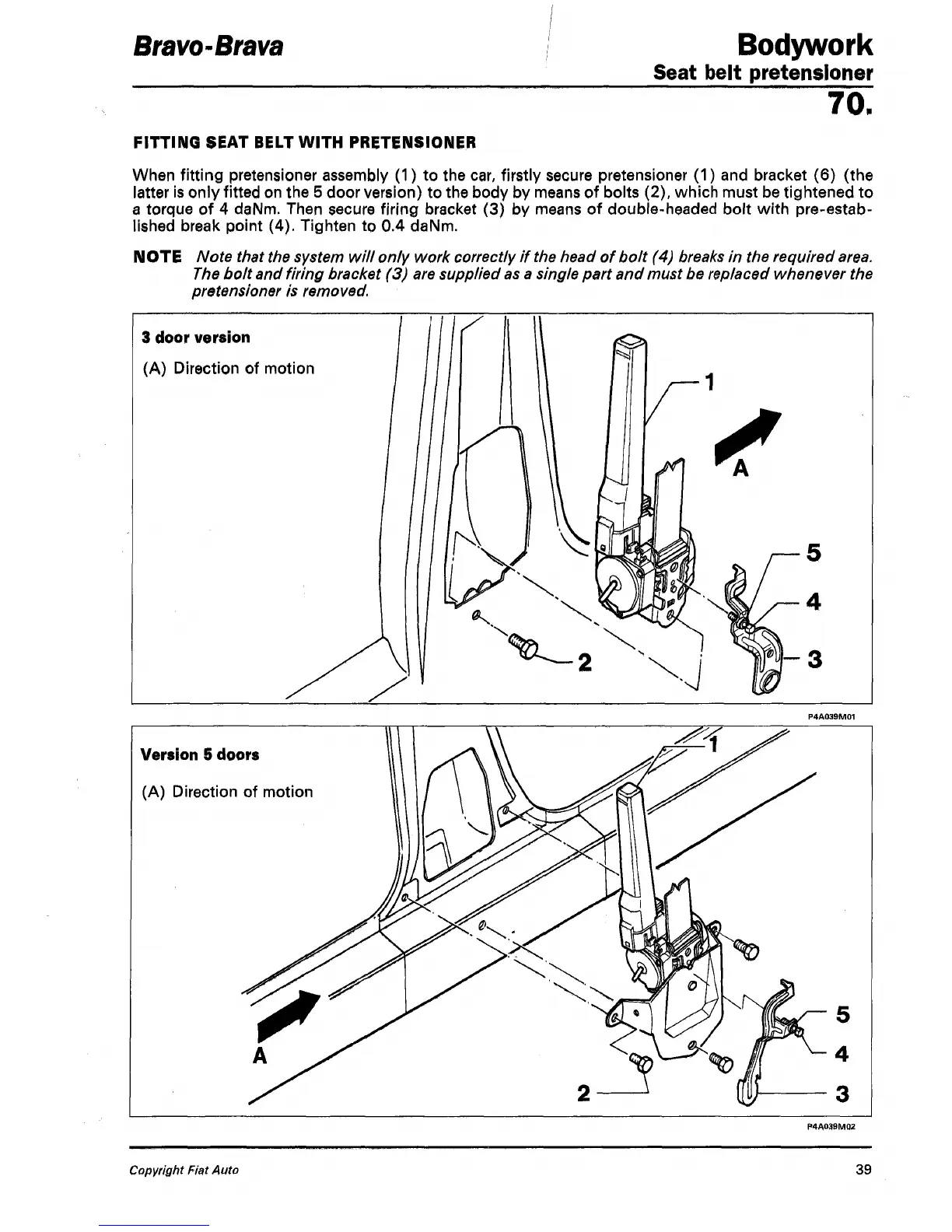

FITTING SEAT BELT WITH PRETENSIONER
When fitting pretensioner assembly (1) to the car, firstly secure pretensioner (1) and bracket (6) (the
latter is only fitted on the 5 door version) to the body by means of bolts (2), which must be tightened to
a torque of 4 daNm. Then secure firing bracket (3) by means of double-headed bolt with pre-estab-
lished break point (4). Tighten to 0.4 daNm.
NOTE Note that the system will only work correctly if the head of bolt (4)
breaks
in the required
area.
The
bolt and firing bracket (3) are supplied
as
a single part and must be replaced whenever the
pretensioner is removed.
3 door version
(A) Direction of motion
P4A039M01
Version 5 doors
(A) Direction of motion
P4/\039M02
