Electrical system
Various devices
Bravo-Brava
55.

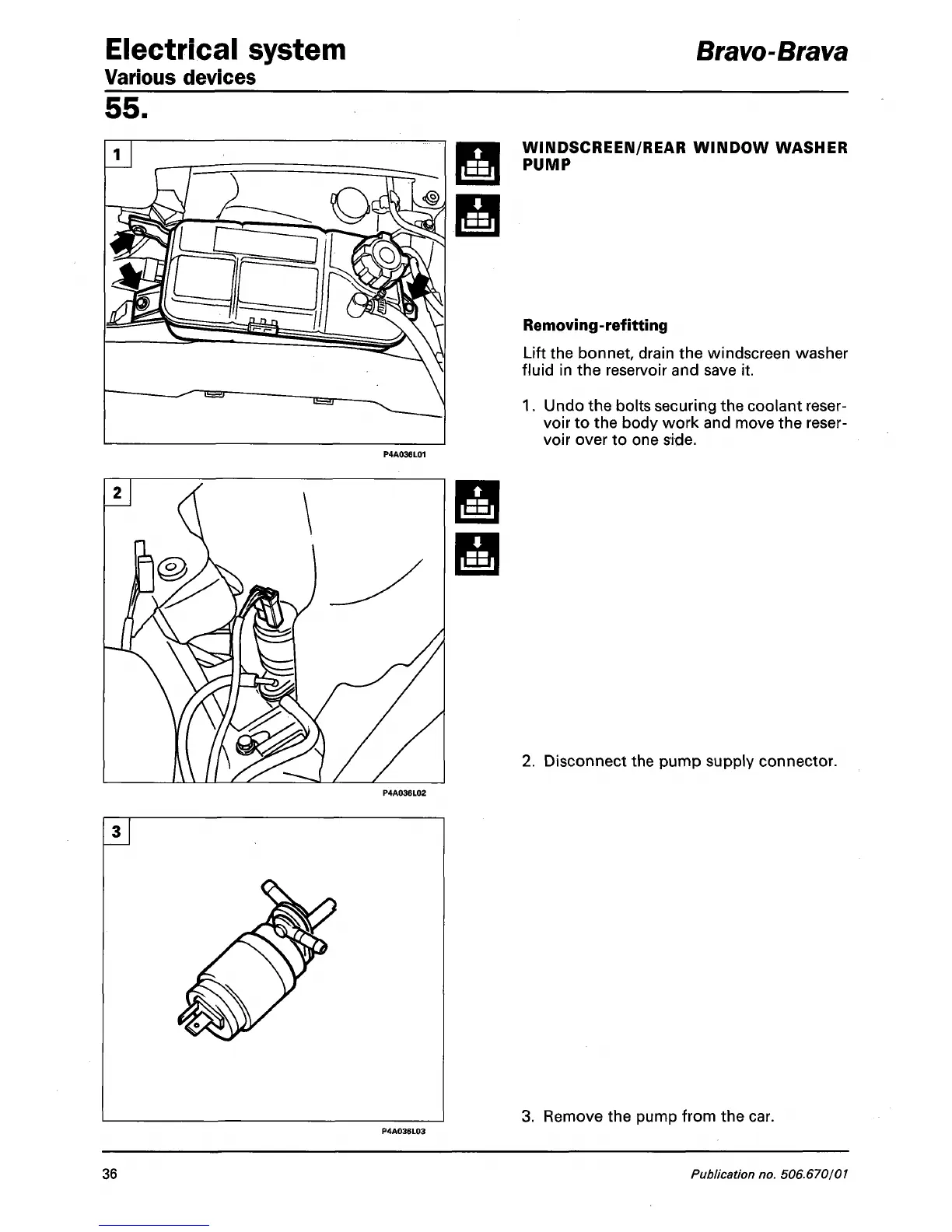

WIIMDSCREEN/REAR WINDOW WASHER
PUMP
Removing - refitting
Lift the bonnet, drain the windscreen washer
fluid in the reservoir and save it.
1.
Undo the bolts securing the coolant reser-
voir to the body work and move the reser-
voir over to one side.
2.
Disconnect the pump supply connector.
3. Remove the pump from the car.
36
Publication no. 506.670/01
