Electrical equipment
Starting
Bravo-Brava
55.

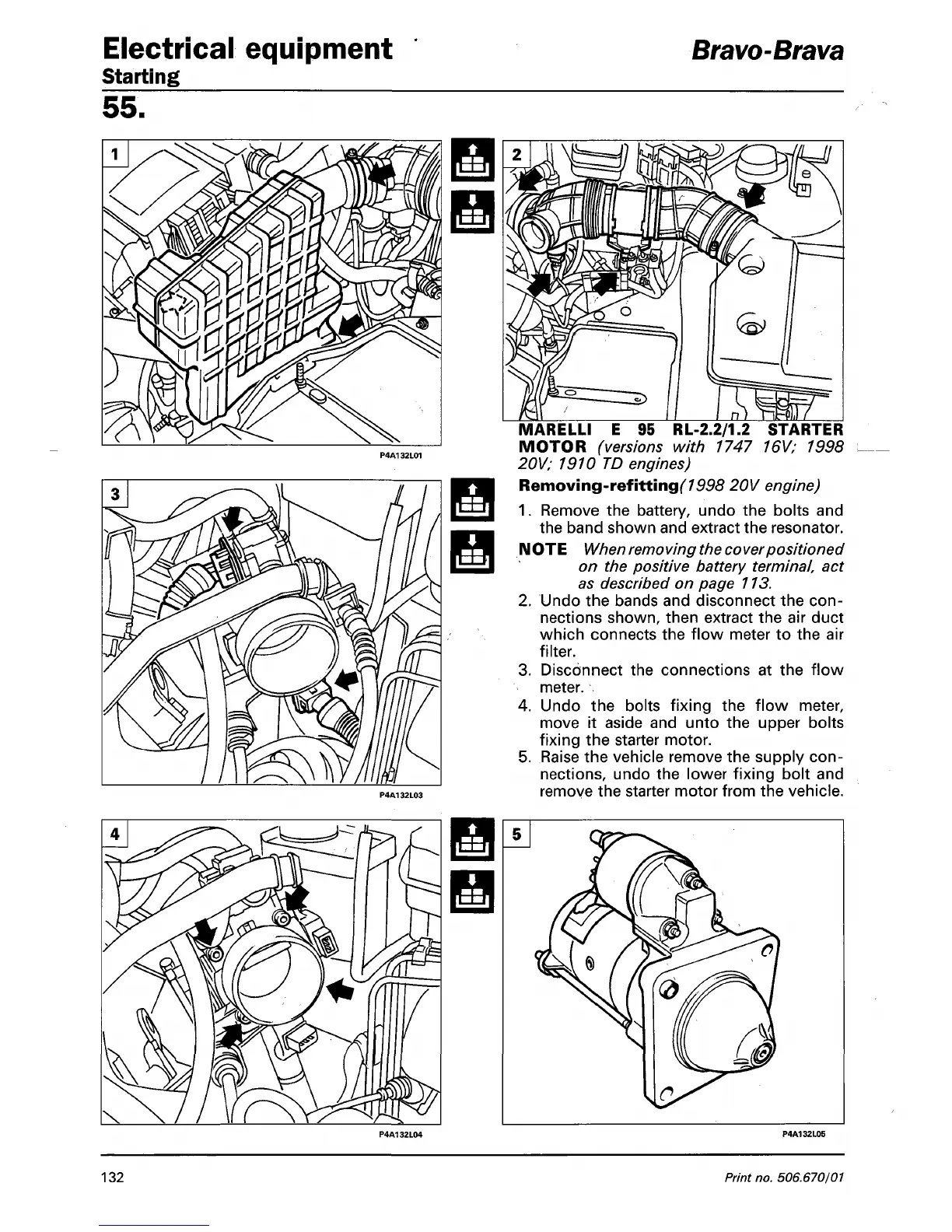

STARTER
16V; 1998
MARELLI E 95 RL-2.2/1.2
MOTOR (versions with 1747
20V; 1910 TD engines)
Removing-refitting^7555 20V engine)
1.
Remove the battery, undo the bolts and
the band shown and extract the resonator.
NOTE
When
removing the cover positioned
on the positive battery terminal, act
as described on page 113.
2. Undo the bands and disconnect the
con-
nections shown, then extract the air duct
which connects the flow meter to the air
filter.
3. Disconnect the connections at the flow
meter.
4.
Undo the bolts fixing the flow meter,
move it aside and unto the upper bolts
fixing the starter motor.
5. Raise the vehicle remove the supply
con-
nections, undo the lower fixing bolt and
remove the starter motor from the vehicle.
132
Print no. 506.670/01
