Bravo

Bodywork

Window glasses

70.

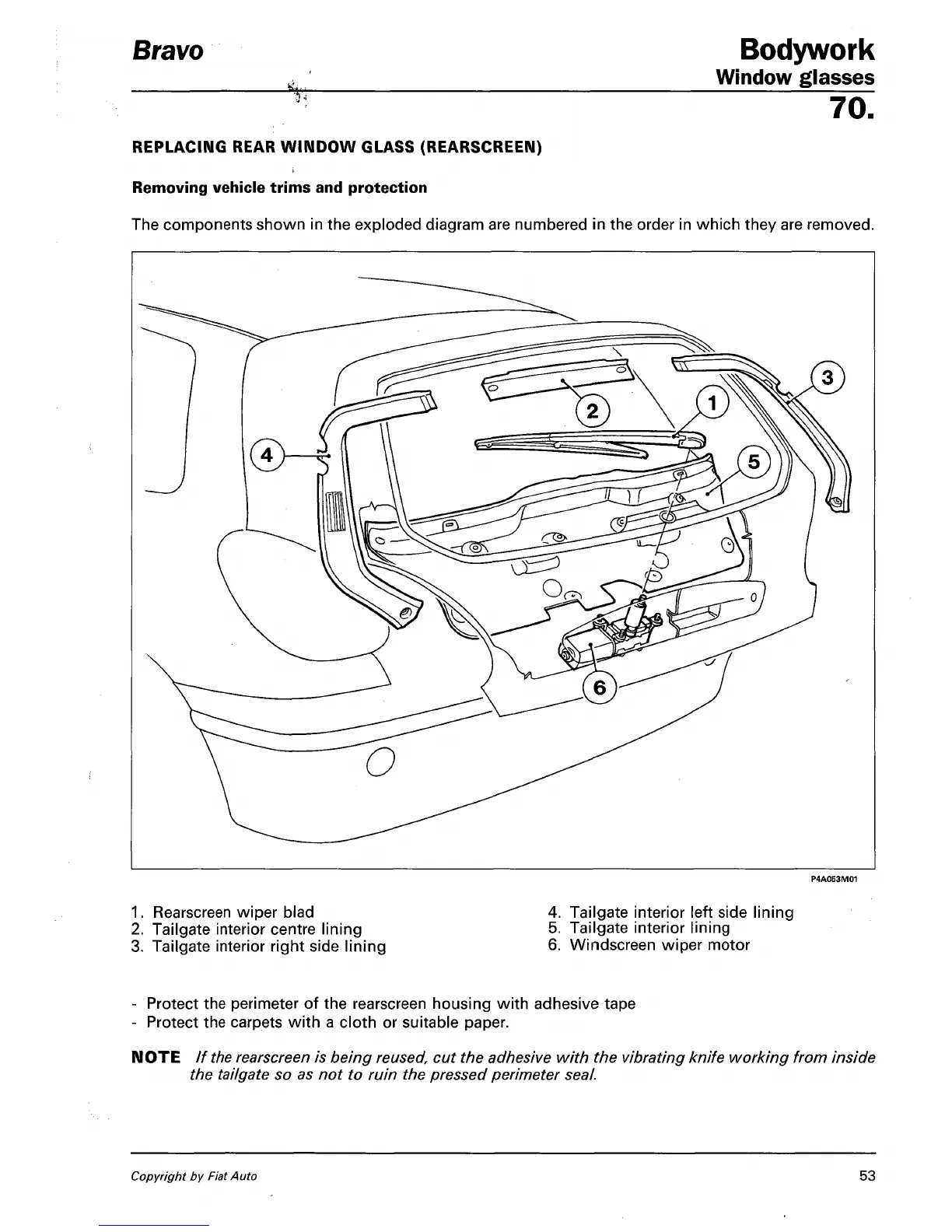

REPLACING REAR WINDOW GLASS (REARSCREEN)

Removing vehicle trims and protection

The components shown in the exploded diagram are numbered in the order in which they are removed.

Rearscreen wiper blad

Tailgate interior centre lining

3. Tailgate interior right side lining

Tailgate interior left side lining

5. Tailgate interior lining

6. Windscreen wiper motor

- Protect the perimeter of the rearscreen housing with adhesive tape

- Protect the carpets with a cloth or suitable paper.

NOTE If

the rearscreen

is being

reused,

cut the adhesive with the vibrating knife working from inside

the tailgate so as not to ruin the pressed perimeter seal.
