Fiat Brava - Side Repeater; Rear Lights Cluster

Electrical system
Lighting
Bravo-Brava
55.
3
y~
-XA
A
1-
V
\-\
o
f
- —
P4A024L01
_£
*

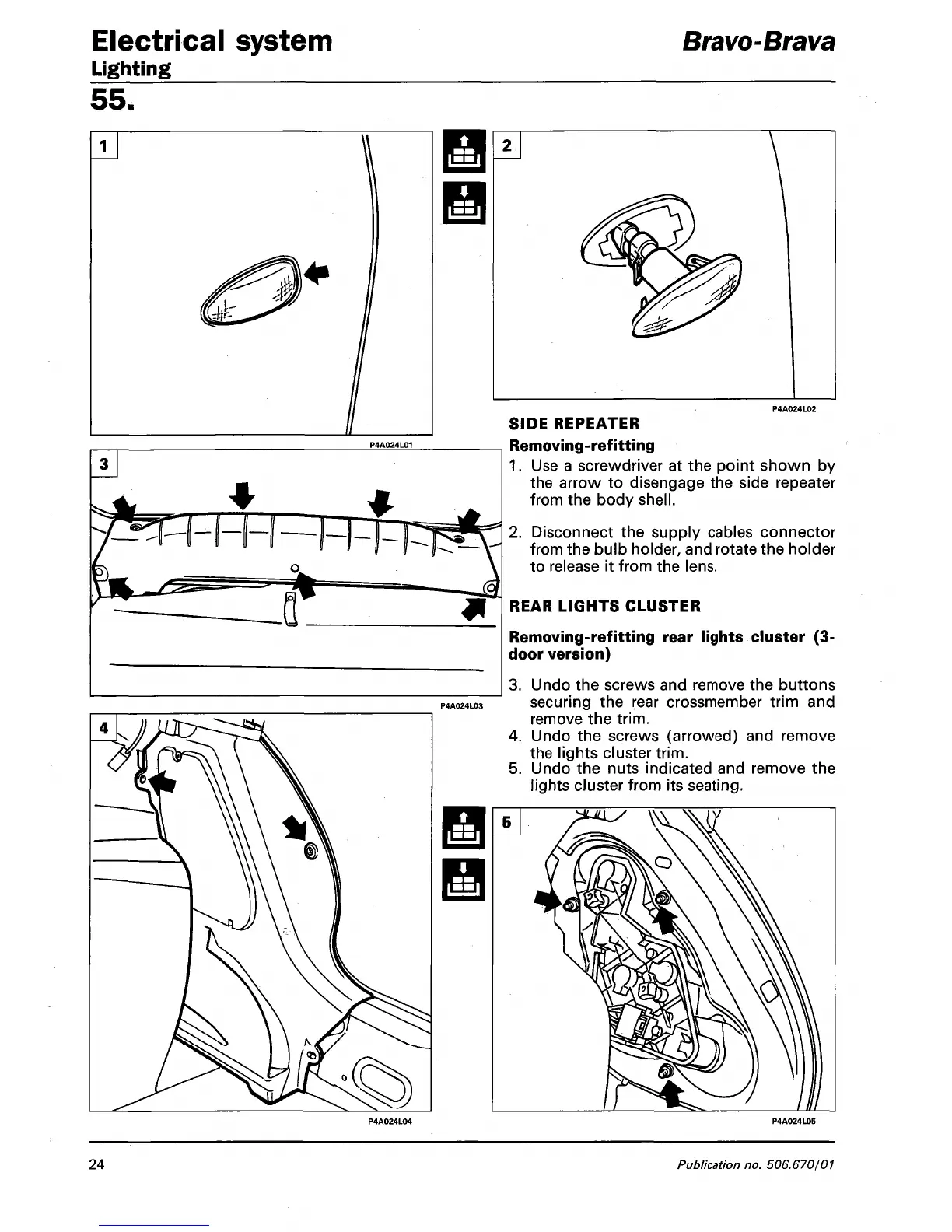

SIDE REPEATER
Removing-refitting
1. Use a screwdriver at the point shown by
the arrow to disengage the side repeater
from the body shell.
2. Disconnect the supply cables connector
from the bulb holder, and rotate the holder
to release it from the lens.
REAR LIGHTS CLUSTER
Removing-refitting rear lights cluster (3-
door version)
3. Undo the screws and remove the buttons
securing the rear crossmember trim and
remove the trim.
4. Undo the screws (arrowed) and remove
the lights cluster trim.
5. Undo the nuts indicated and remove the
lights cluster from its seating.
24
Publication no. 506.670/07
