Electrical equipment
Radio system
Bravo-Brava
55.

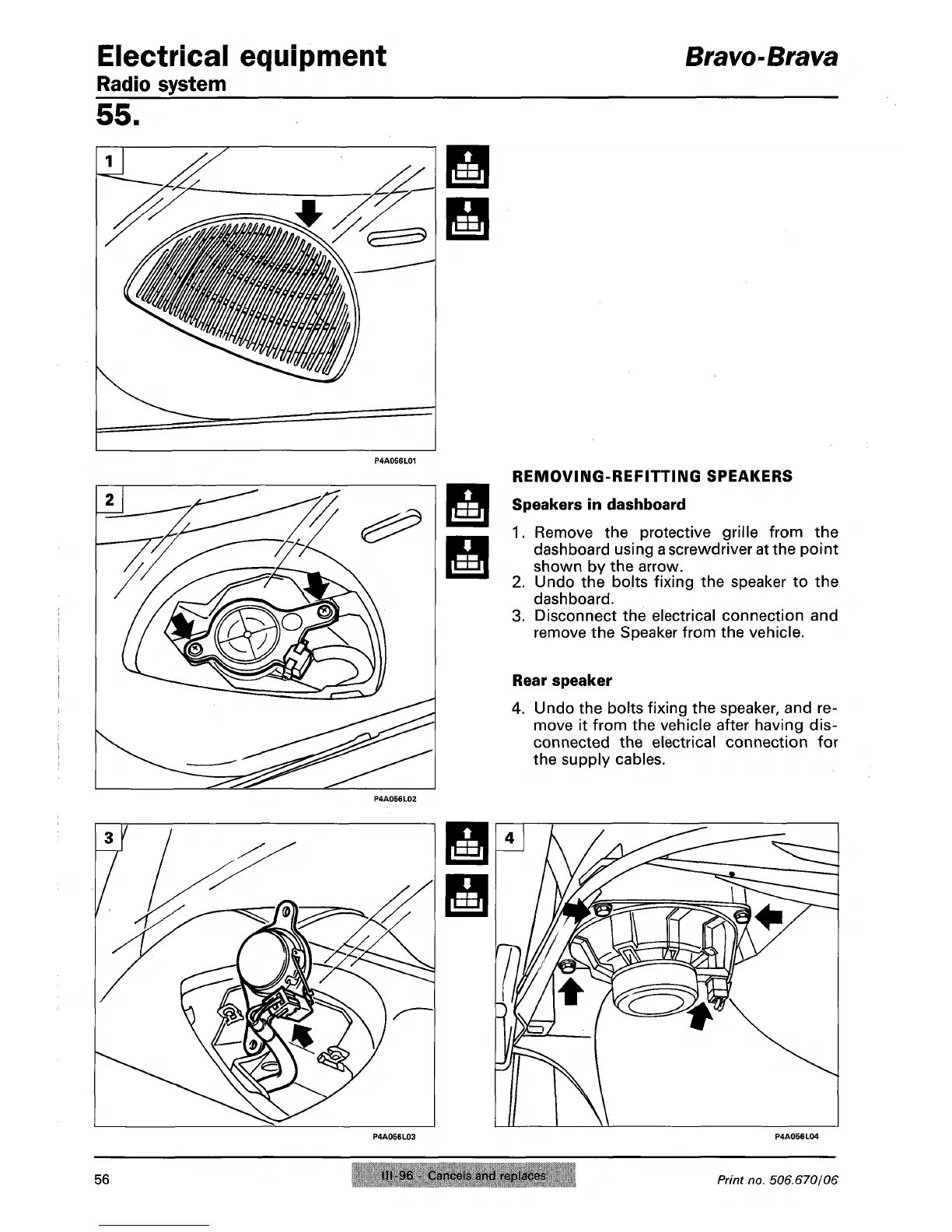

REMOVING-REFITTING SPEAKERS
Speakers in dashboard
1.
Remove the protective grille from the
dashboard using
a
screwdriver at the point
shown by the arrow.
2.
Undo the bolts fixing the speaker to the
dashboard.
3. Disconnect the electrical connection and
remove the Speaker from the vehicle.
Rear speaker
4.
Undo the bolts fixing the speaker, and re-
move it from the vehicle after having dis-
connected the electrical connection for
the supply cables.
56
tN-96 - Cancels and replaces
Print no. 506.670/06
