Bravo-Brava
Bodywork
Sun roof
70.

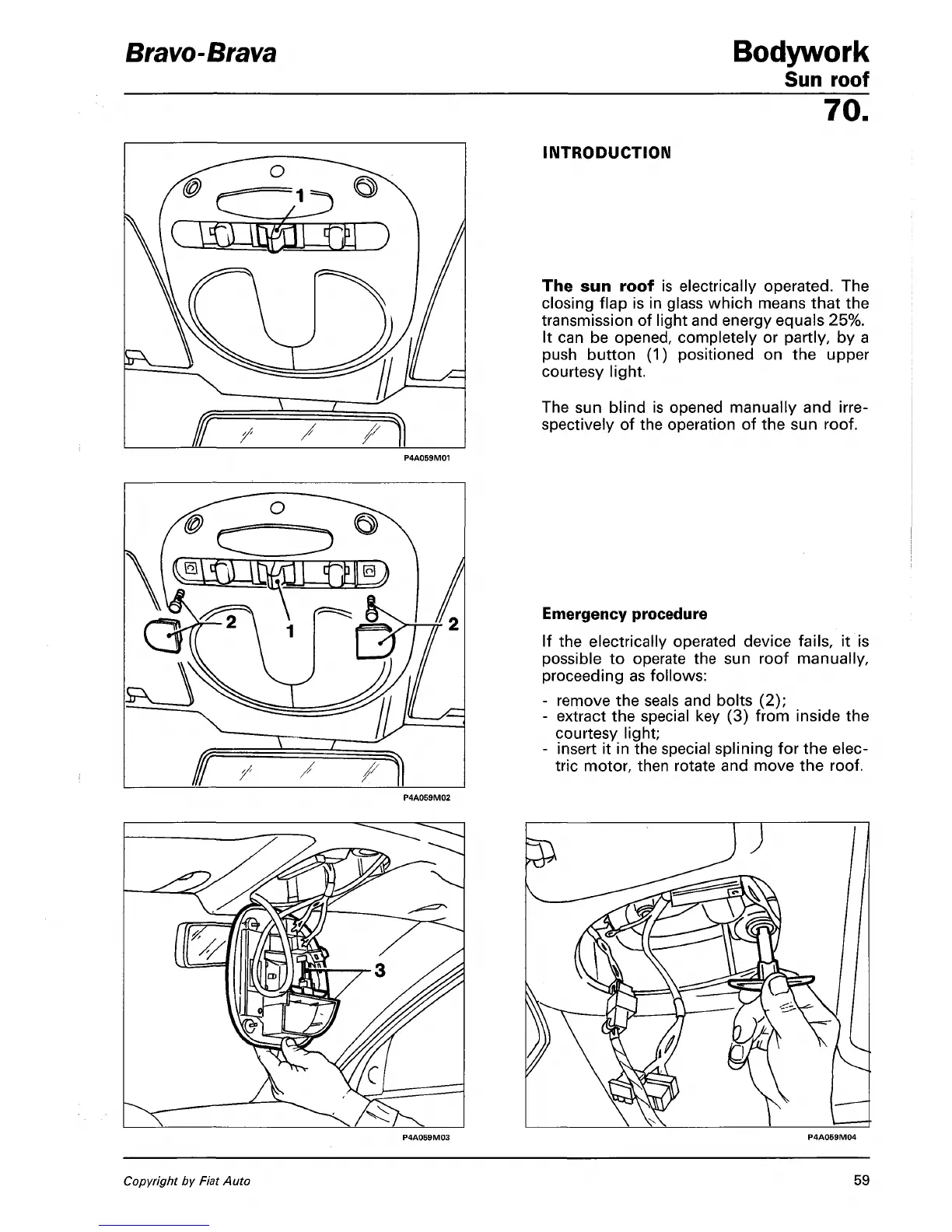

INTRODUCTION
The sun roof is electrically operated. The
closing flap is in glass which means that the
transmission of light and energy equals 25%.
It can be opened, completely or partly, by a
push button (1) positioned on the upper
courtesy light.
The sun blind is opened manually and irre-
spectively of the operation of the sun roof.
P4A059M01
Emergency procedure
If the electrically operated device fails, it is
possible to operate the sun roof manually,
proceeding as follows:
- remove the seals and bolts (2);
- extract the special key (3) from inside the
courtesy light;
- insert it in the special splining for the elec-
tric motor, then rotate and move the roof.
P4A059M04
Copyright by Fiat Auto
59
