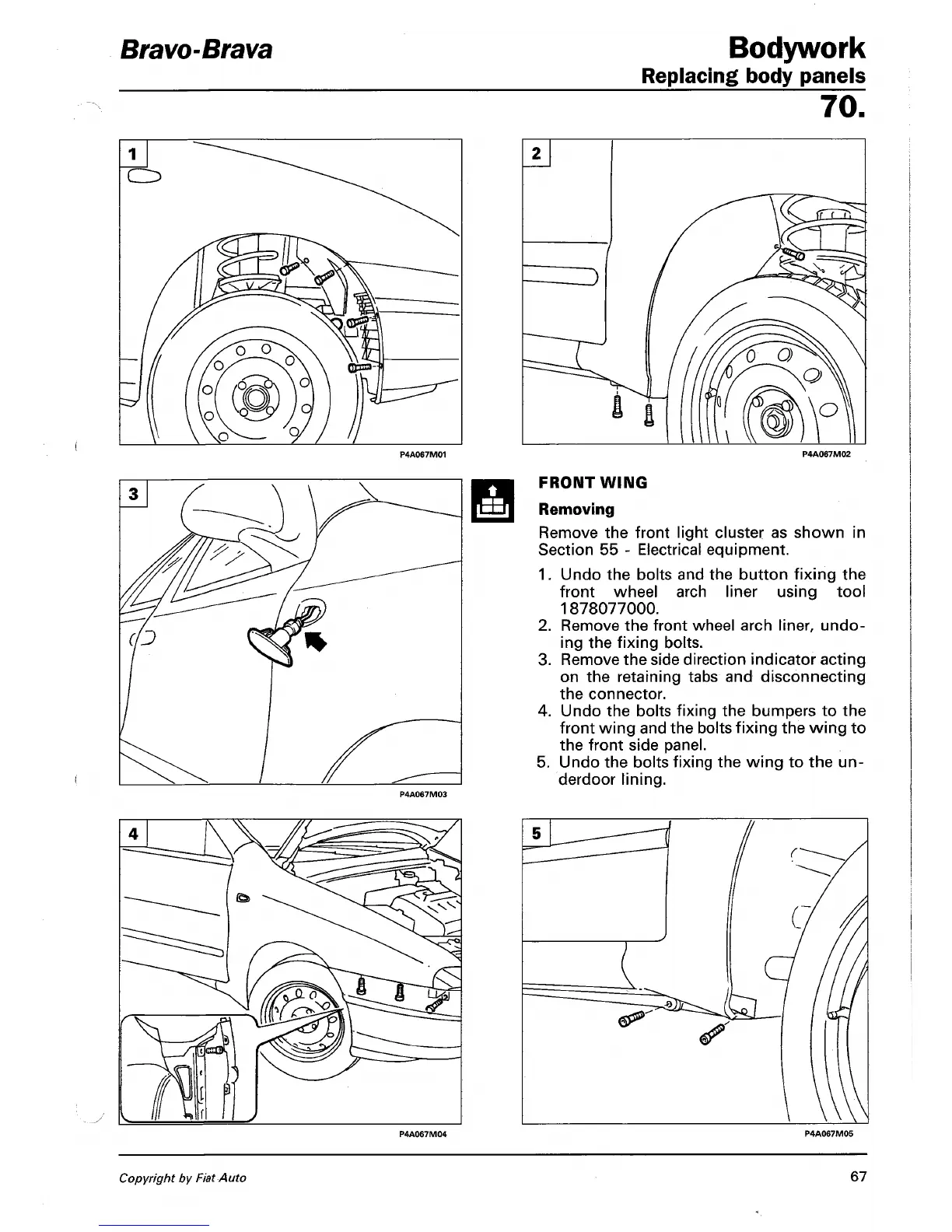

Bravo-Brava Bodywork
Replacing body panels
70.
FRONT WING
Removing
Remove the front light cluster as shown in
Section 55 - Electrical equipment.
1.
Undo the bolts and the button fixing the
front wheel arch liner using tool
1878077000.
2.
Remove the front wheel arch liner, undo-
ing the fixing bolts.
3. Remove the side direction indicator acting
on the retaining tabs and disconnecting
the connector.
4.
Undo the bolts fixing the bumpers to the
front wing and the bolts fixing the wing to
the front side panel.
5. Undo the bolts fixing the wing to the un-
derdoor lining.
P4A067M06
Copyright
by
Fiat
Auto
67
