Electrical system
Fiat CODE
Bravo-Brava
55.

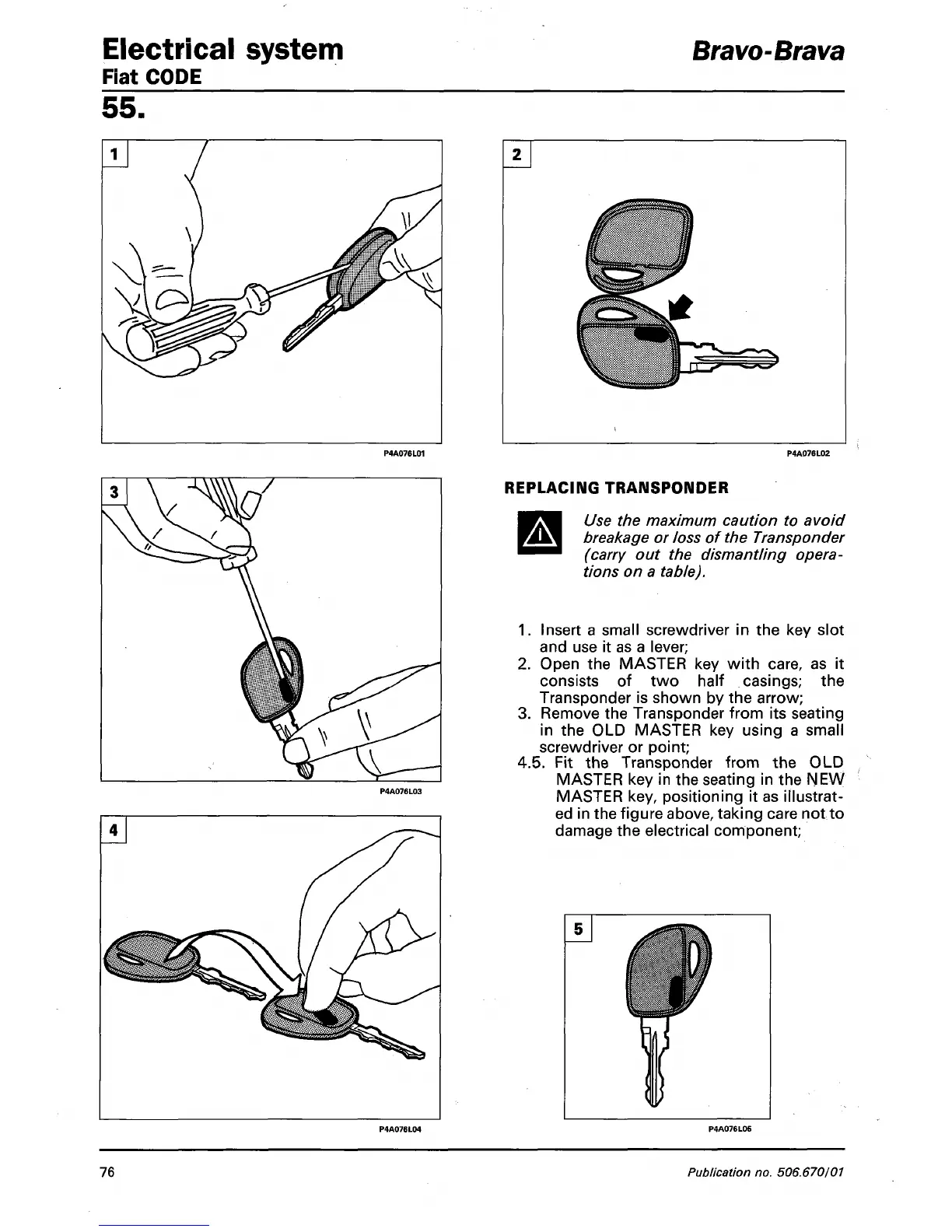

REPLACING TRANSPONDER
Use the maximum caution to avoid
breakage or ioss of the Transponder
(carry out the dismantling opera-
tions on a table).
1.
Ir Insert a small screwdriver in the key slot
and use it as a lever;
2.
Open the MASTER key with care, as it
consists of two half casings; the
Transponder is shown by the arrow;
3. Remove the Transponder from its seating
in the OLD MASTER key using a small
screwdriver or point;
4.5.
Fit the Transponder from the OLD
MASTER key in the seating in the NEW
MASTER key, positioning it as illustrat-
ed in the figure above, taking care not to
damage the electrical component;
76
Publication no. 506.670/01
