Fiat Brava - Replacing Windscreen Wiper Blades

Electrical system
Various devices
Bravo-Brava
55.
2
*6^
/^fl iHl
v$x^

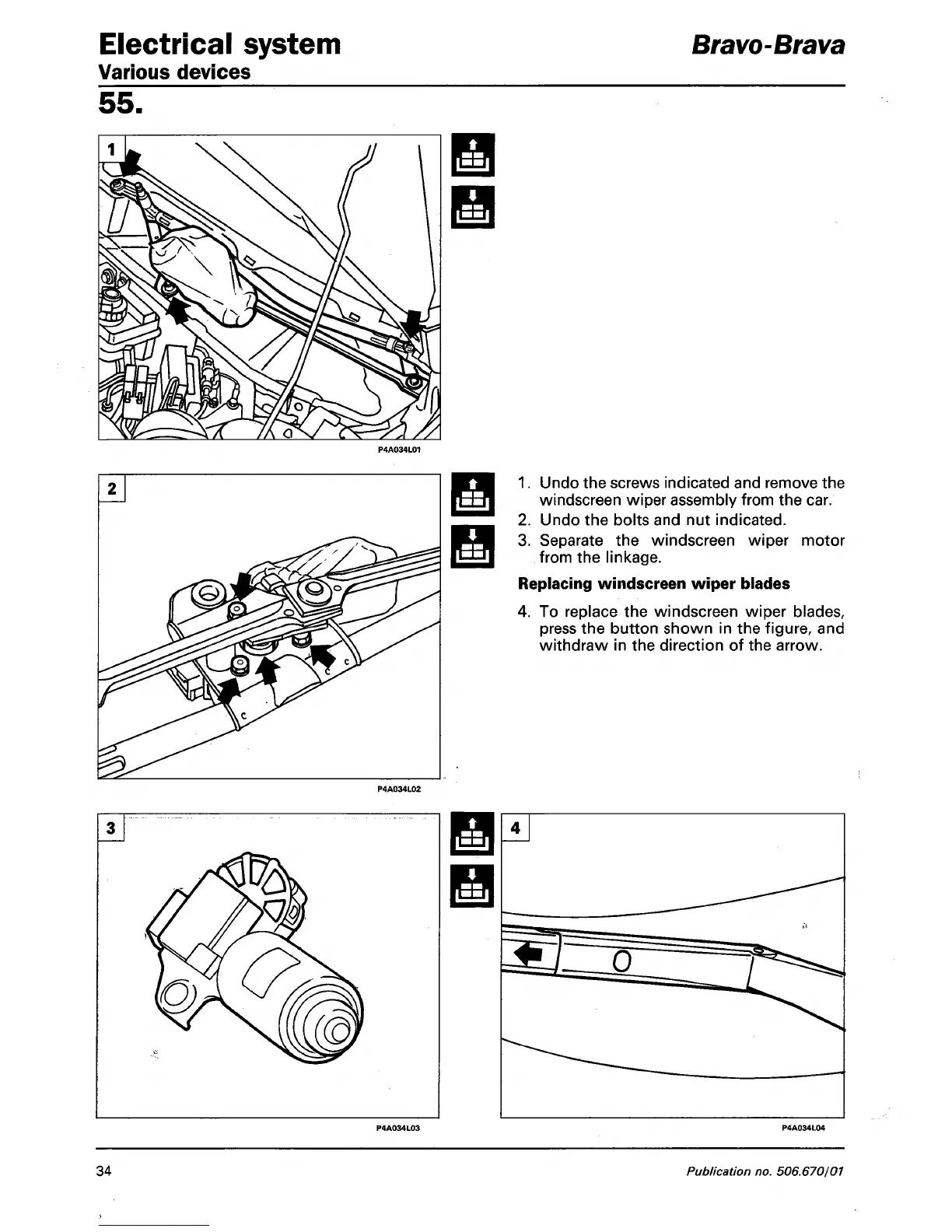

1. Undo the screws indicated and remove the
windscreen wiper assembly from the car.
2. Undo the bolts and nut indicated.
3. Separate the windscreen wiper motor
from the linkage.
Replacing windscreen wiper blades
4. To replace the windscreen wiper blades,
press the button shown in the figure, and
withdraw in the direction of the arrow.
34
Publication no. 506.670101
