Electrical system
Lighting
Bravo-Brava
55.
P4A032L06 P4A032L07

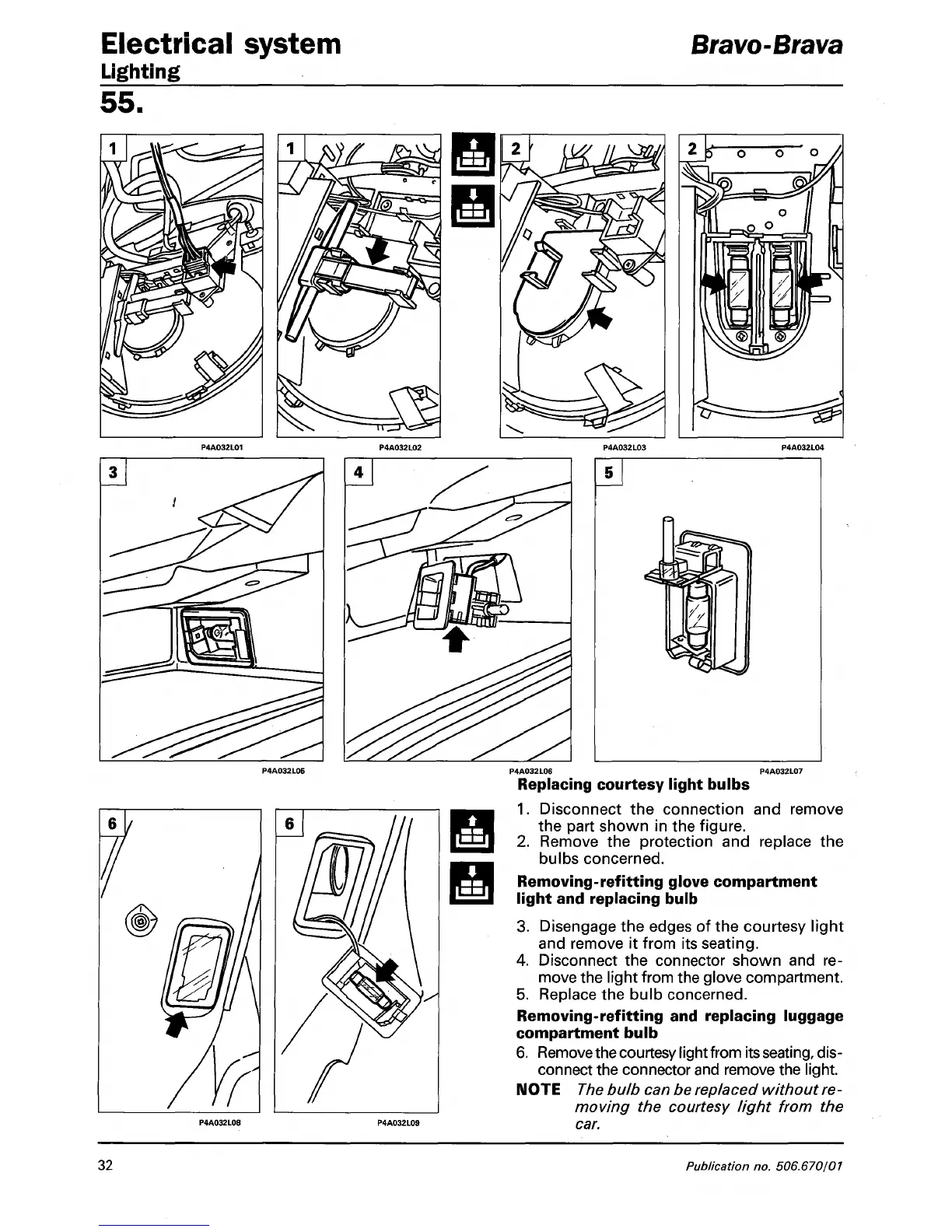

Replacing courtesy light bulbs
1.
Disconnect the connection and remove
the part shown in the figure.
2.
Remove the protection and replace the
bulbs concerned.
Removing-refitting glove compartment
light and replacing bulb
3. Disengage the edges of the courtesy light
and remove it from its seating.
4.
Disconnect the connector shown and re-
move the light from the glove compartment.
5. Replace the bulb concerned.
Removing-refitting and replacing luggage
compartment bulb
6.
Remove the
courtesy light
from its
seating,
dis-
connect the connector and remove the light.
NOTE
The
bulb can be replaced without re-
moving the courtesy light from the
car.
32
Publication no. 506.670/01
