Bravo-Brava
Bodywork
Front door
P4AQ07M01
70.

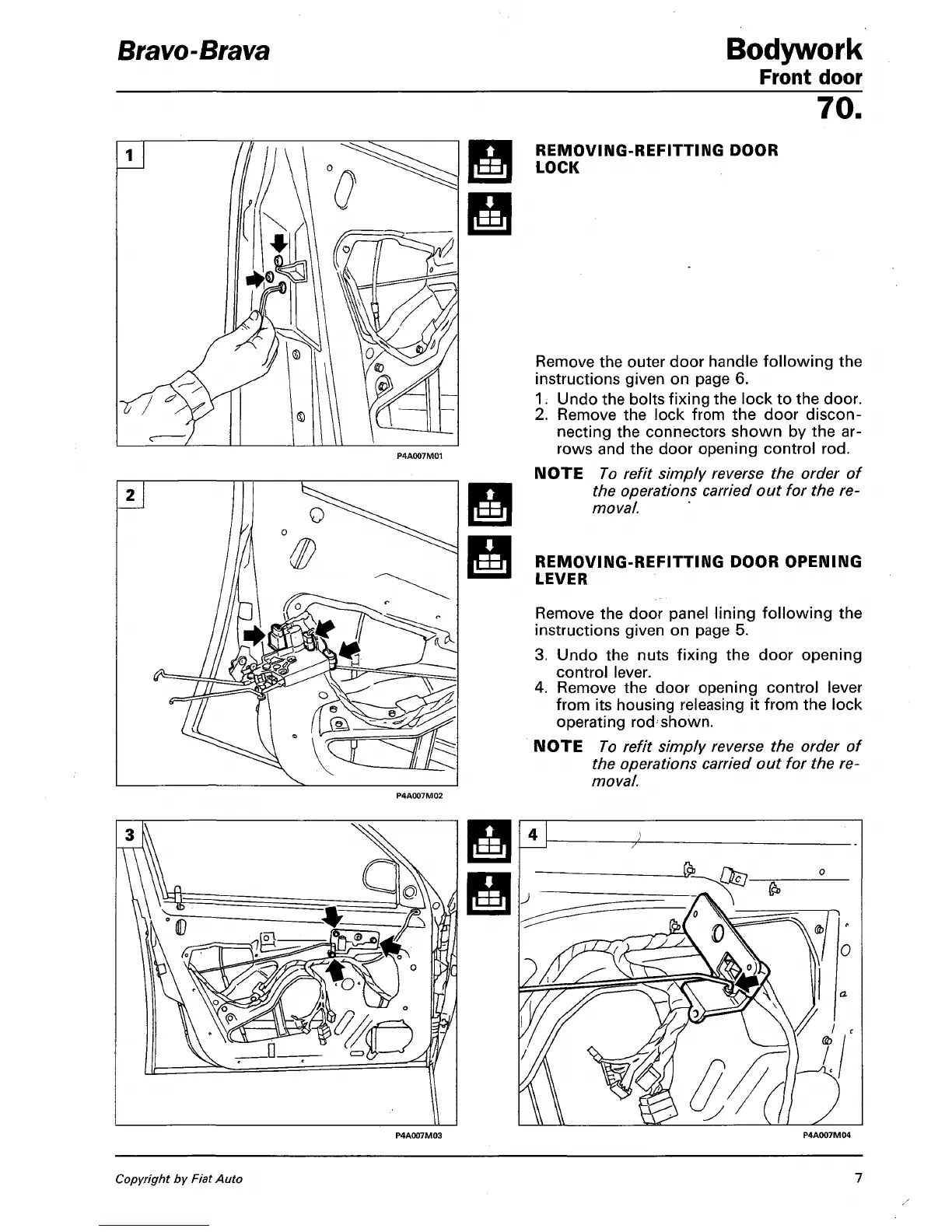

REMOVING-REFITTING DOOR
LOCK
Remove the outer door handle following the
instructions given on page 6.
1.
Undo the bolts fixing the lock to the door.
2.
Remove the lock from the door discon-
necting the connectors shown by the ar-
rows and the door opening control rod.
NOTE To refit simply reverse the order of
the operations carried out for the re-
moval
REMOVING-REFITTING DOOR OPENING
LEVER
Remove the door panel lining following the
instructions given on page 5.
3. Undo the nuts fixing the door opening
control lever.
4.
Remove the door opening control lever
from its housing releasing it from the lock
operating rod shown.
NOTE To refit simply reverse the order of
the operations carried out for the re-
moval.
P4A007M02
P4A007M04
