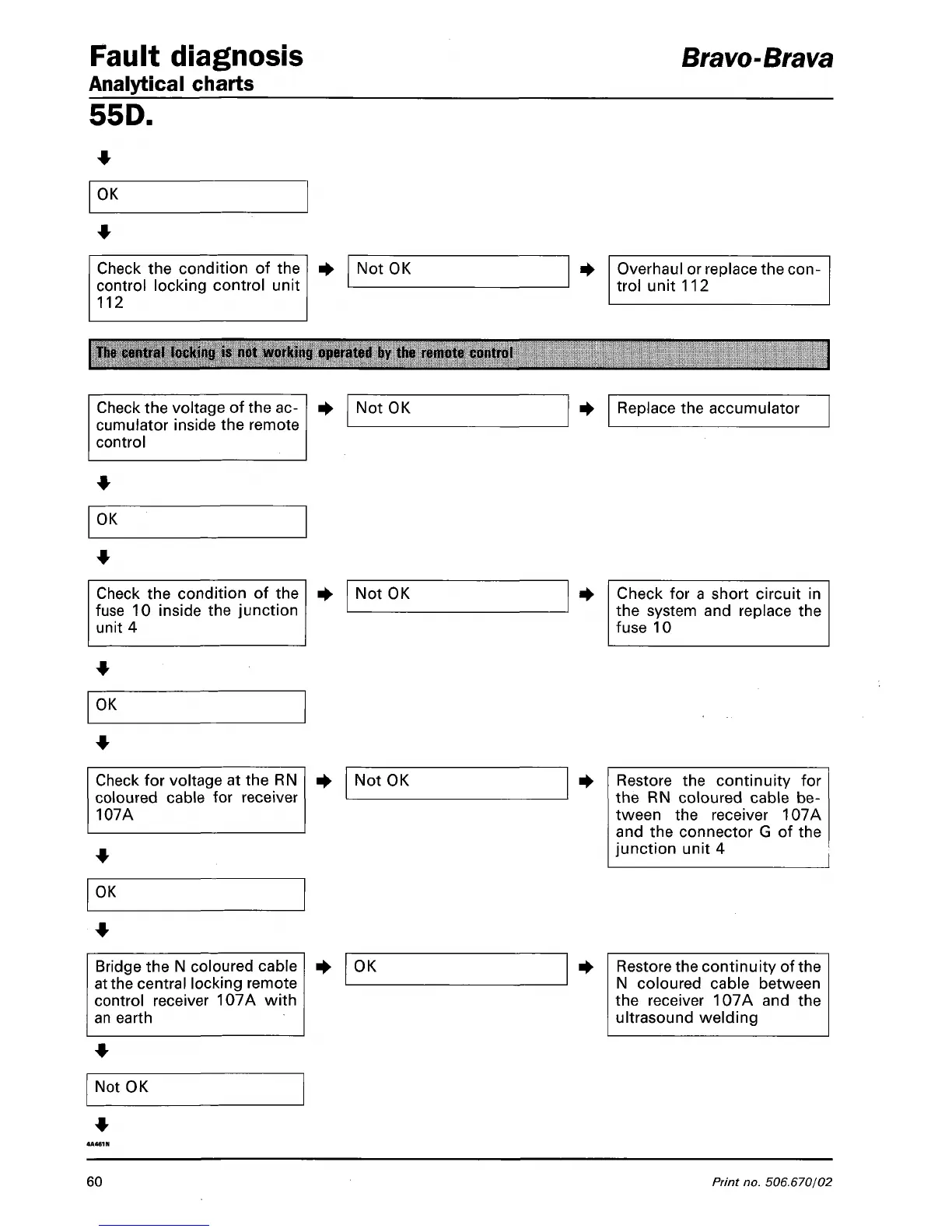

Fault diagnosis
Analytical charts
Bravo-Brava
55D.
OK
Check the condition of the
control locking control unit
112
Not OK
Overhaul or replace the con-
trol unit 112
The central locking is not woiking operated by the remote control
Check the voltage of the ac-
cumulator inside the remote
control
Not OK Replace the accumulator
OK
Check the condition of the
fuse 10 inside the junction
unit 4
Not OK Check for a short circuit in
the system and replace the
fuse 10
OK
Check for voltage at the RN
coloured cable for receiver
107A
Not OK
OK
Restore the continuity for
the RN coloured cable be-
tween the receiver 107A
and the connector G of the
junction unit 4
Bridge the N coloured cable
at the central locking remote
control receiver 107A with
an earth
OK
Restore the continuity of the
N coloured cable between
the receiver 107A and the
ultrasound welding
Not OK
60
Print no. 506.670/02
