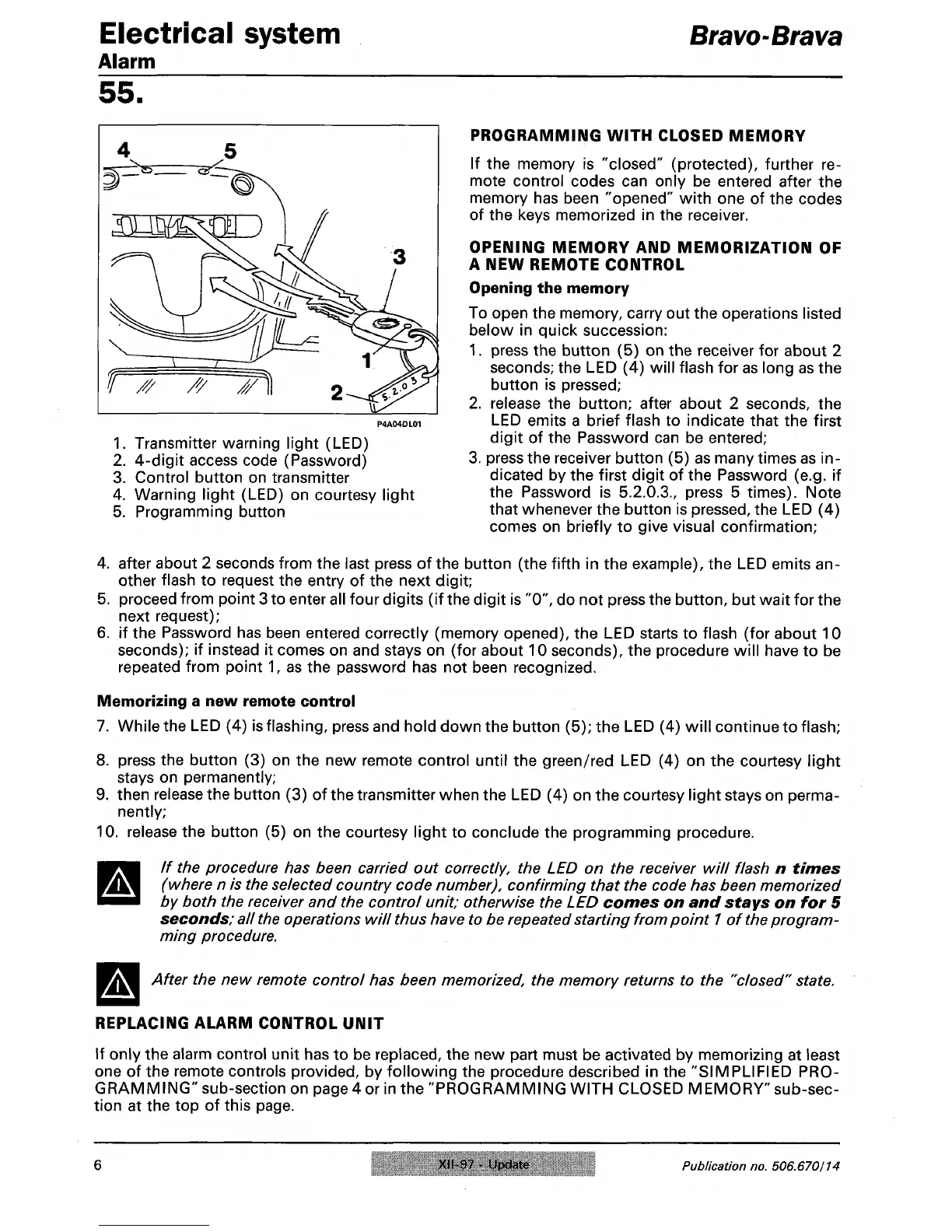

Electrical system
Alarm
Bravo-Brava
55.
1.
Transmitter warning light (LED)
2.
4-digit access code (Password)
3. Control button on transmitter
4.
Warning light (LED) on courtesy light
5. Programming button
PROGRAMMING WITH CLOSED MEMORY
If the memory is "closed" (protected), further re-
mote control codes can only be entered after the
memory has been "opened" with one of the codes
of the keys memorized in the receiver.
OPENING MEMORY AND MEMORIZATION OF
A NEW REMOTE CONTROL
Opening the memory
To open the memory, carry out the operations listed
below in quick succession:
1.
press the button (5) on the receiver for about 2
seconds; the LED (4) will flash for as long as the
button is pressed;
2.
release the button; after about 2 seconds, the
LED emits a brief flash to indicate that the first
digit of the Password can be entered;
3. press the receiver button (5) as many times as in-
dicated by the first digit of the Password (e.g. if
the Password is 5.2.0.3., press 5 times). Note
that whenever the button is pressed, the LED (4)
comes on briefly to give visual confirmation;
4.
after about 2 seconds from the last press of the button (the fifth in the example), the LED emits an-
other flash to request the entry of the next digit;
5. proceed from point 3 to enter all four digits (if the digit is "0", do not press the button, but wait for the
next request);
6. if the Password has been entered correctly (memory opened), the LED starts to flash (for about 10
seconds); if instead it comes on and stays on (for about 10 seconds), the procedure will have to be
repeated from point 1, as the password has not been recognized.
Memorizing a new remote control
7. While the LED (4) is
flashing,
press and hold down the button (5); the LED (4) will continue to flash;
8. press the button (3) on the new remote control until the green/red LED (4) on the courtesy light
stays on permanently;
9. then release the button (3) of the transmitter when the LED (4) on the courtesy light stays on perma-
nently;
10.
release the button (5) on the courtesy light to conclude the programming procedure.
■HH If the procedure has been carried out correctly, the LED on the receiver will flash n times
Y*^K
(
w
^
ere
n
'
s tne
selected country code number), confirming that the code has been memorized
^■J
by both the receiver and the control
unit;
otherwise the LED comes on and stays on for 5
seconds; all
the
operations will thus have to be repeated starting from point 1 of
the
program-
ming procedure.
After the new remote control has been memorized, the memory returns to the "closed" state.
REPLACING ALARM CONTROL UNIT
If only the alarm control unit has to be replaced, the new part must be activated by memorizing at least
one of the remote controls provided, by following the procedure described in the "SIMPLIFIED PRO-
GRAMMING" sub-section on page 4 or in the "PROGRAMMING WITH CLOSED MEMORY" sub-sec-
tion at the top of this page.
6
XII-97 - Update Publication no. 506.670/74
