Btavo-Brava
5 P.
Bodywork
Rear tailgate
70.
P4A015M02

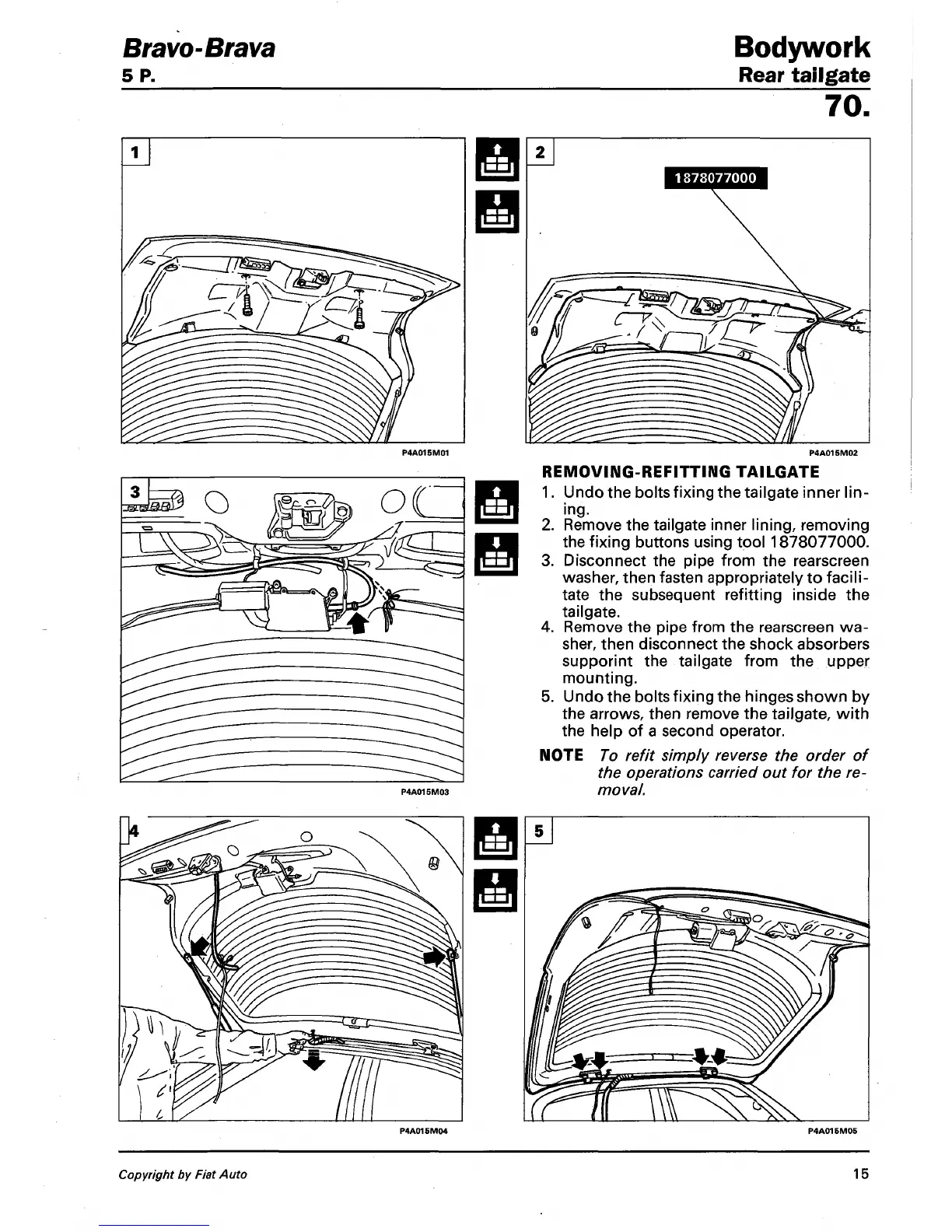

REMOVING-REFITTING TAILGATE
1.
Undo the bolts fixing the tailgate inner
lin-
ing.
2.
Remove the tailgate inner lining, removing
the fixing buttons using tool 1878077000.
3. Disconnect the pipe from the rearscreen
washer, then fasten appropriately to facili-
tate the subsequent refitting inside the
tailgate.
4.
Remove the pipe from the rearscreen wa-
sher, then disconnect the shock absorbers
supporint the tailgate from the upper
mounting.
5. Undo the bolts fixing the hinges shown by
the arrows, then remove the tailgate, with
the help of a second operator.
NOTE To refit simply reverse the order of
the operations carried out for the re-
moval.
Copyright by
Fiat
Auto
15
