Bravo-Brava Bodywork
Front door
70.

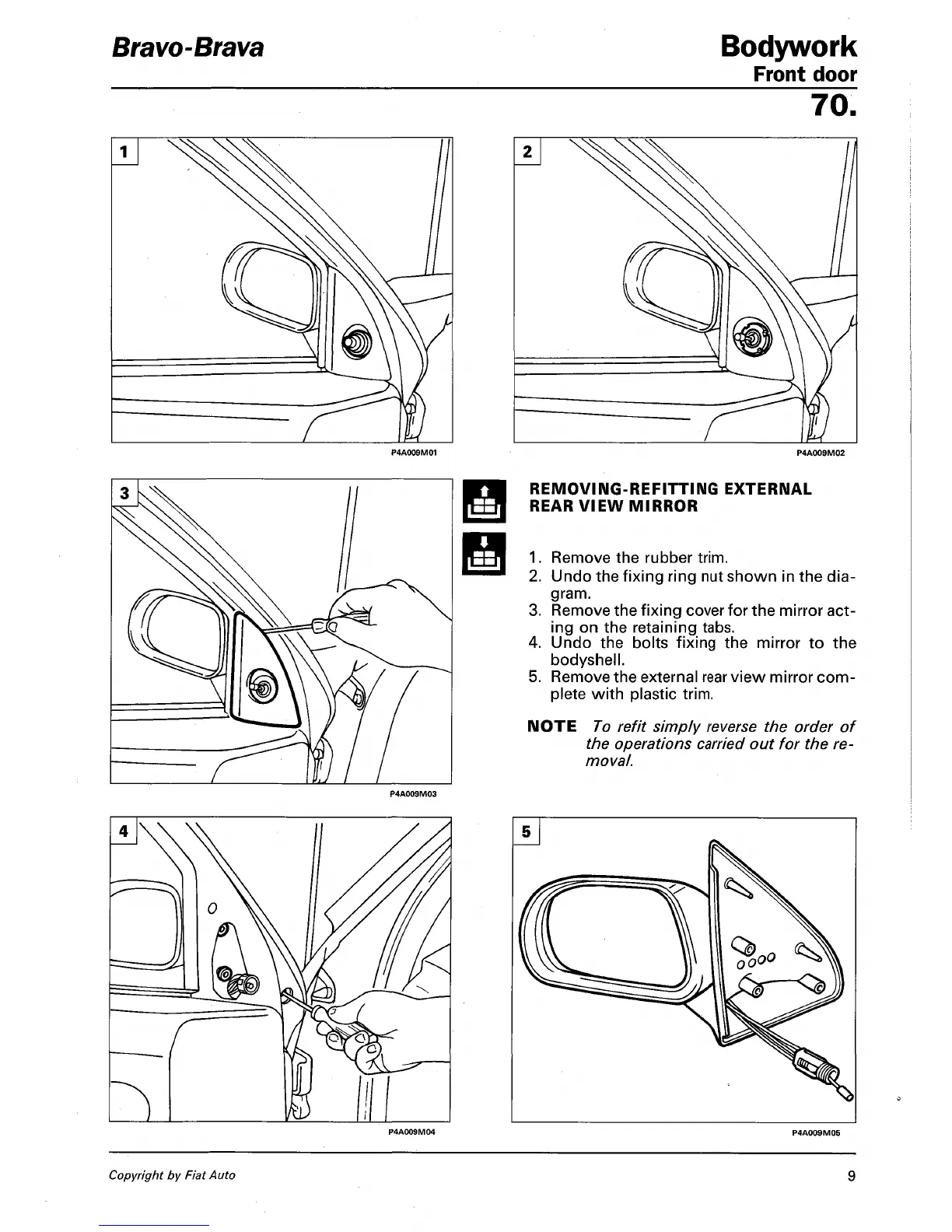

REMOVING-REFITTING EXTERNAL
REAR VIEW MIRROR
1.
Remove the rubber
trim.
2.
Undo the fixing ring nut shown in the dia-
gram.
3. Remove the fixing cover for the mirror act-
ing on the retaining tabs.
4.
Undo the bolts fixing the mirror to the
bodyshell.
5. Remove the external rear view mirror com-
plete with plastic
trim.
NOTE To refit simply
reverse
the order of
the operations carried out for the re-
moval.
P4A009M04
Copyright by Fiat Auto
9
