Bodywork
Front door
Bravo-Brava
70.
P4A006M01

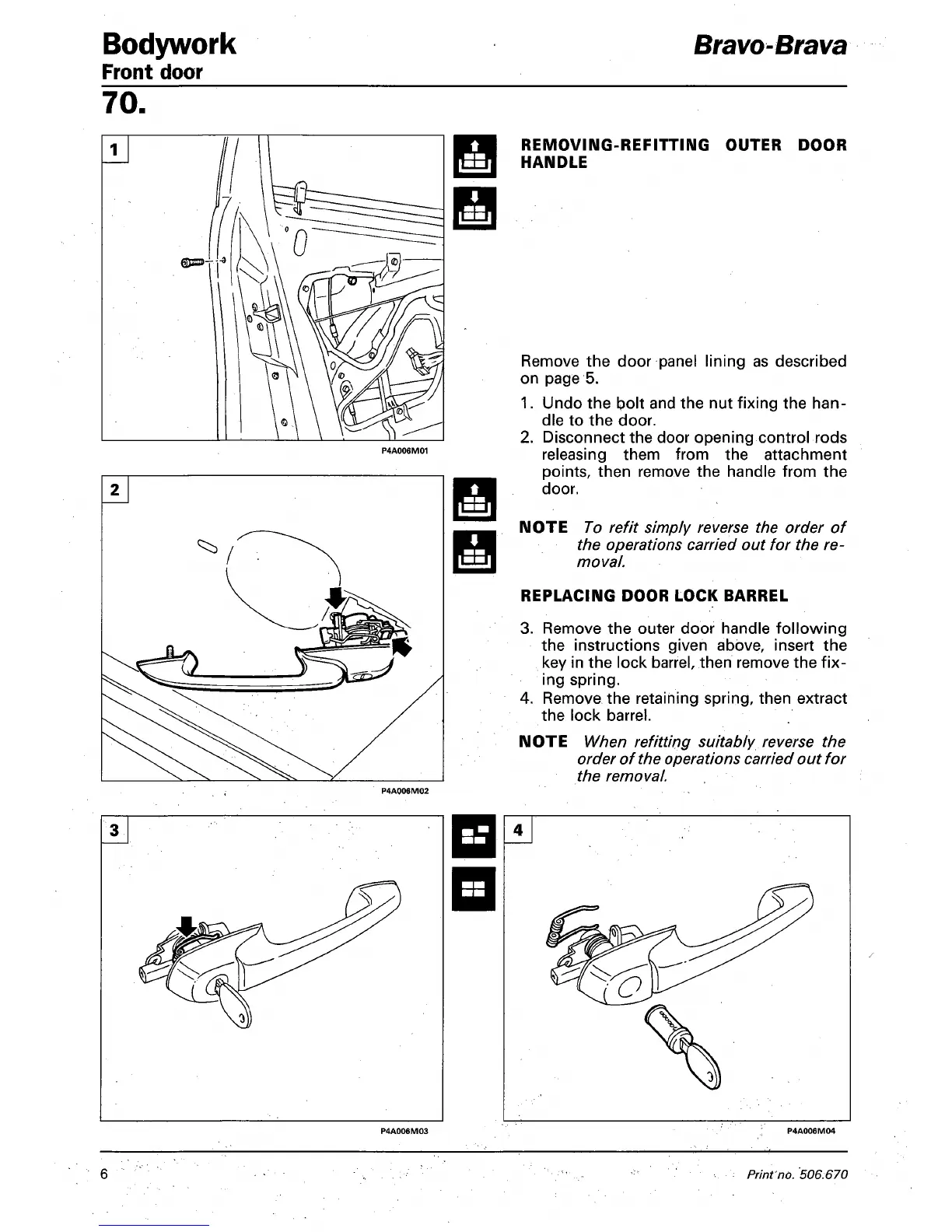

REMOVING-REFITTING OUTER DOOR
HANDLE
Remove the door panel lining as described
on page 5.
1.
Undo the bolt and the nut fixing the
han-
dle to the door.
2.
Disconnect the door opening control rods
releasing them from the attachment
points, then remove the handle from the
door.
NOTE To refit simply reverse the order of
the operations carried out for the re-
moval.
REPLACING DOOR LOCK BARREL
3. Remove the outer door handle following
the instructions given above, insert the
key in the lock barrel, then remove the fix-
ing spring.
4.
Remove the retaining spring, then extract
the lock barrel.
NOTE When refitting suitably reverse the
order of the operations carried out for
the removal.
P4A006M02
P4A006M04
