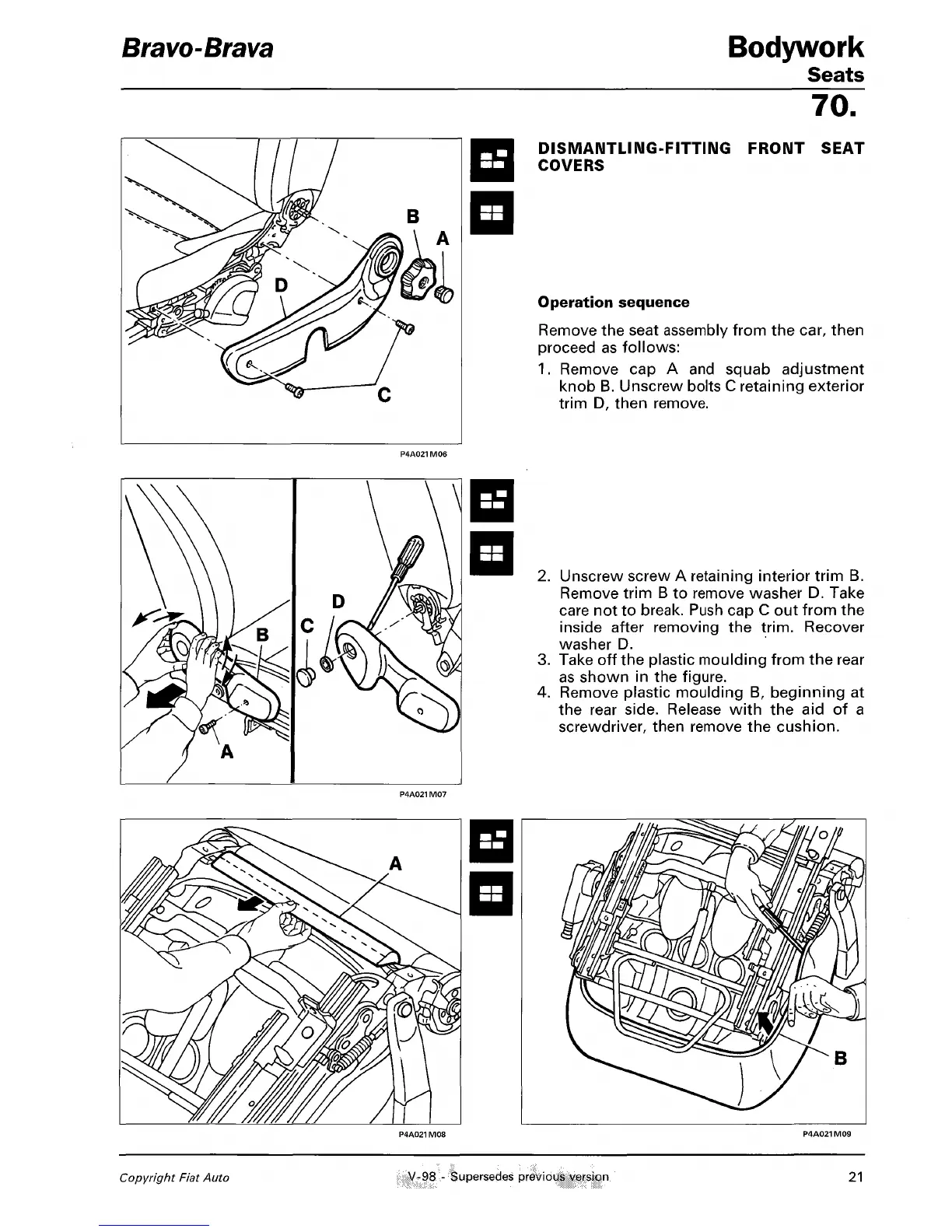

Bravo-Brava
Bodywork
Seats
P4A021 M06
70.
DISMANTLING-FITTING
COVERS
FRONT SEAT
Operation sequence
Remove the seat assembly from the car, then
proceed as follows:
1.
Remove cap A and squab adjustment
knob B. Unscrew bolts C retaining exterior
trim D, then remove.
Unscrew screw A retaining interior trim B.
Remove trim B to remove washer D. Take
care not to break. Push cap C out from the
inside after removing the
trim.
Recover
washer D.
Take off the plastic moulding from the rear
as shown in the figure.
Remove plastic moulding B, beginning at
the rear side. Release with the aid of a
screwdriver, then remove the cushion.
P4A021 M07
P4A021 M08
P4A021M09
Copyright Fiat Auto
V-98 - Supersedes previous version
21
