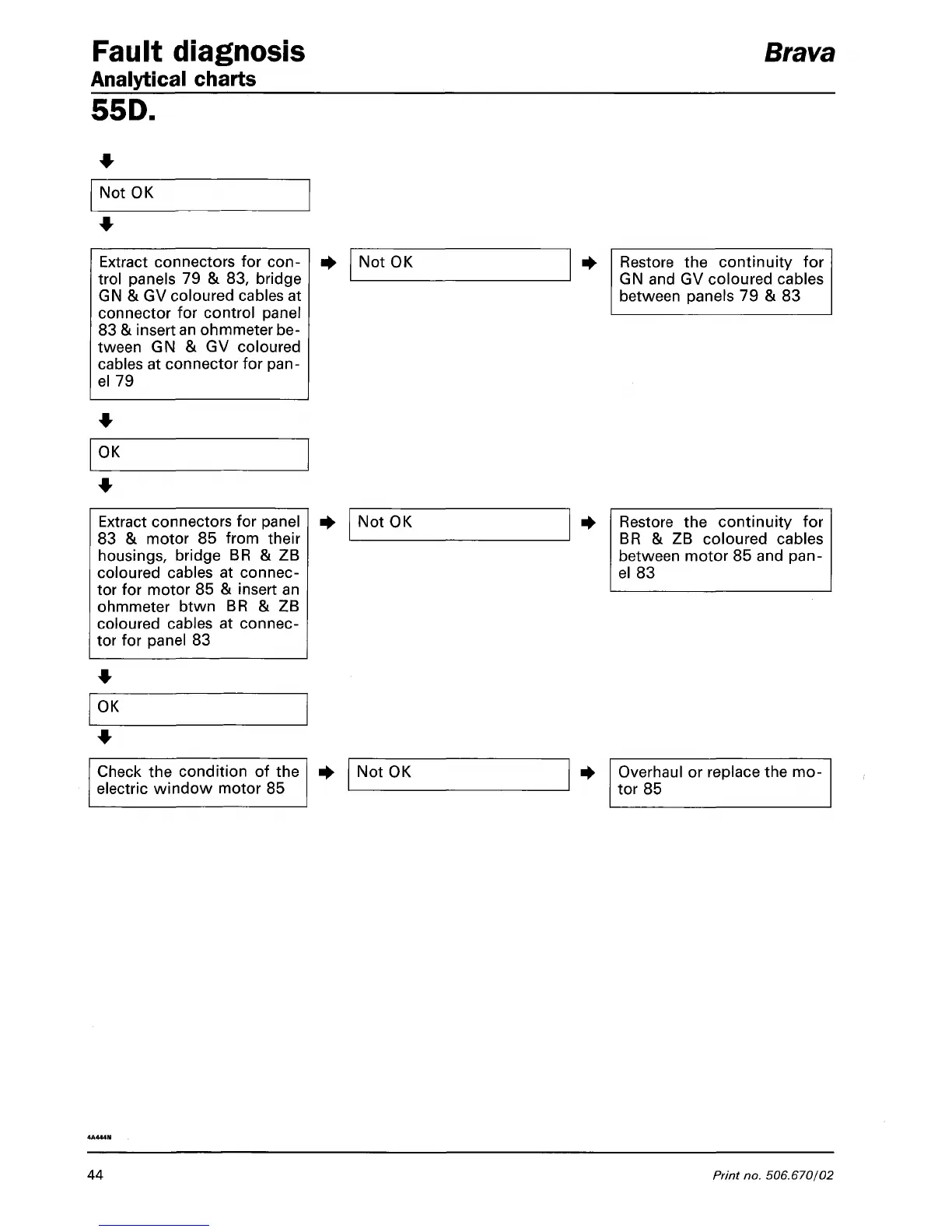

Fault diagnosis
Analytical charts
Brava
55D.
Not OK
Extract connectors for
con-
trol panels 79 & 83, bridge
GN & GV coloured cables at
connector for control panel
83 & insert an ohmmeter be-
tween GN & GV coloured
cables at connector for
pan-
el 79
Not OK Restore the continuity for
GN and GV coloured cables
between panels 79 & 83
OK
Extract connectors for panel
83 & motor 85 from their
housings, bridge BR & ZB
coloured cables at connec-
tor for motor 85 & insert an
ohmmeter btwn BR & ZB
coloured cables at connec-
tor for panel 83
Not OK Restore the continuity for
BR & ZB coloured cables
between motor 85 and
pan-
el 83
OK
Check the condition of the
electric window motor 85
Not OK Overhaul or replace the mo-
tor 85
44
Print no. 506.670/02
