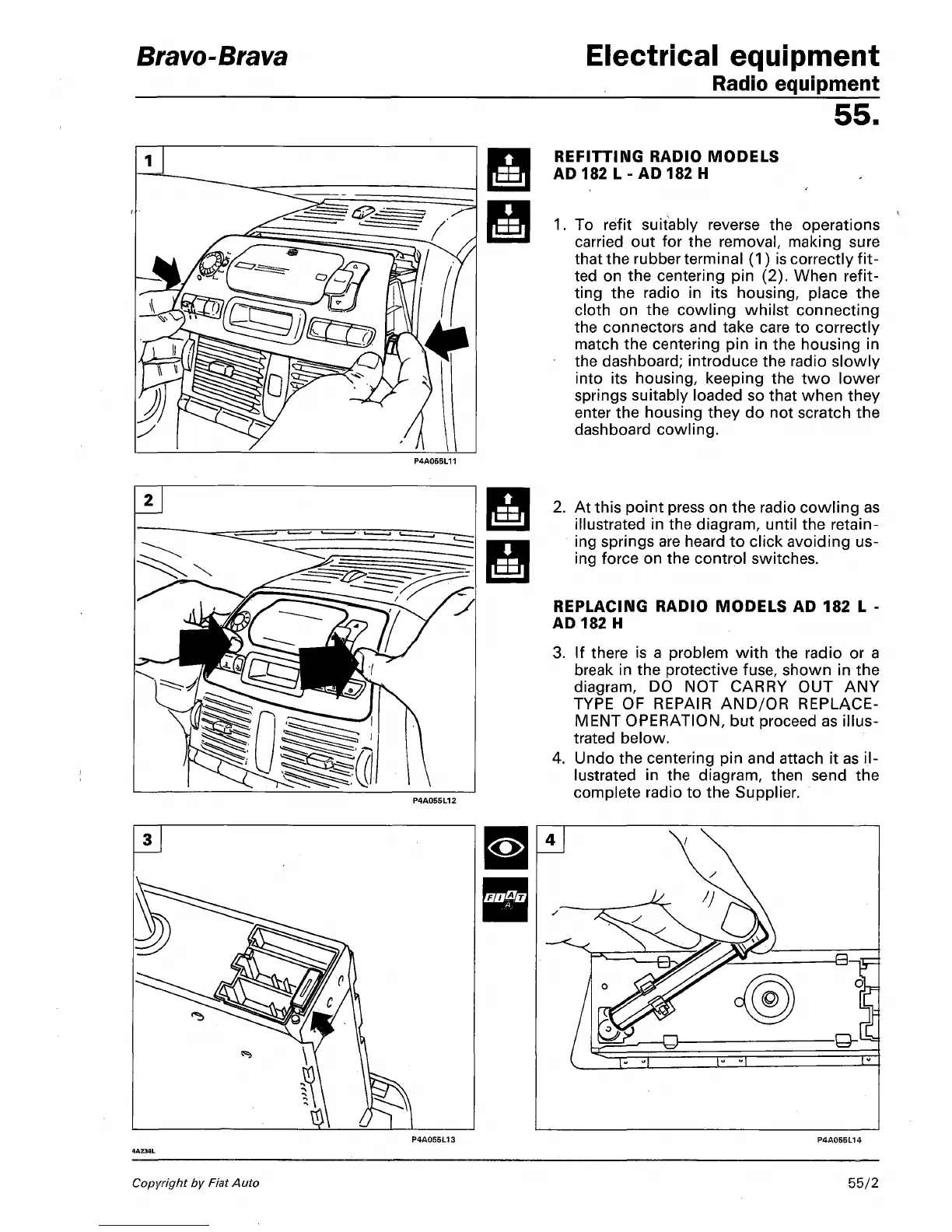

REFITTING RADIO MODELS
AD 182 L- AD 182 H
1.
To refit suitably reverse the operations
carried out for the removal, making sure
that the rubber terminal (1) is correctly fit-
ted on the centering pin (2). When refit-
ting the radio in its housing, place the
cloth on the cowling whilst connecting
the connectors and take care to correctly
match the centering pin in the housing in
the dashboard; introduce the radio slowly
into its housing, keeping the two lower
springs suitably loaded so that when they
enter the housing they do not scratch the
dashboard cowling.
2.
At this point press on the radio cowling as
illustrated in the diagram, until the retain-
ing springs are heard to click avoiding us-
ing force on the control switches.
REPLACING RADIO MODELS AD 182 L -
AD 182 H
3. If there is a problem with the radio or a
break in the protective fuse, shown in the
diagram,
DO NOT CARRY OUT ANY
TYPE OF REPAIR AND/OR REPLACE-
MENT OPERATION, but proceed as illus-
trated below.
4.
Undo the centering pin and attach it as il-
lustrated in the diagram, then send the
complete radio to the Supplier.
