Bravo-Brava
Electrical system
Lighting
55.
1.

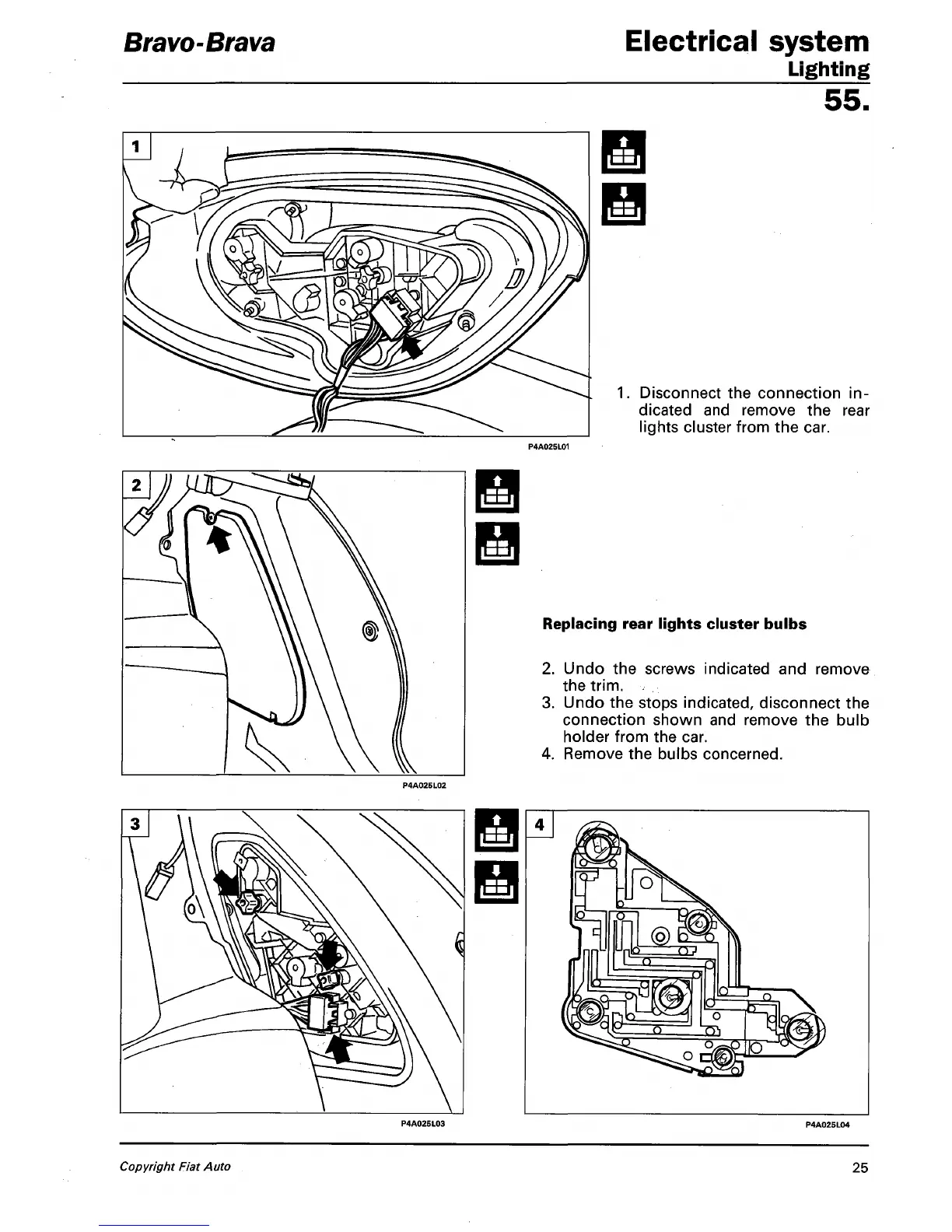

Disconnect the connection in-
dicated and remove the rear
lights cluster from the car.
Replacing rear lights cluster bulbs
2.
Undo the screws indicated and remove
the
trim.
3. Undo the stops indicated, disconnect the
connection shown and remove the bulb
holder from the car.
4.
Remove the bulbs concerned.
Copyright Fiat Auto
25
