55.13.96
Fiat Brava
5540A46JAE
REAR
LIGHT
CLUSTER

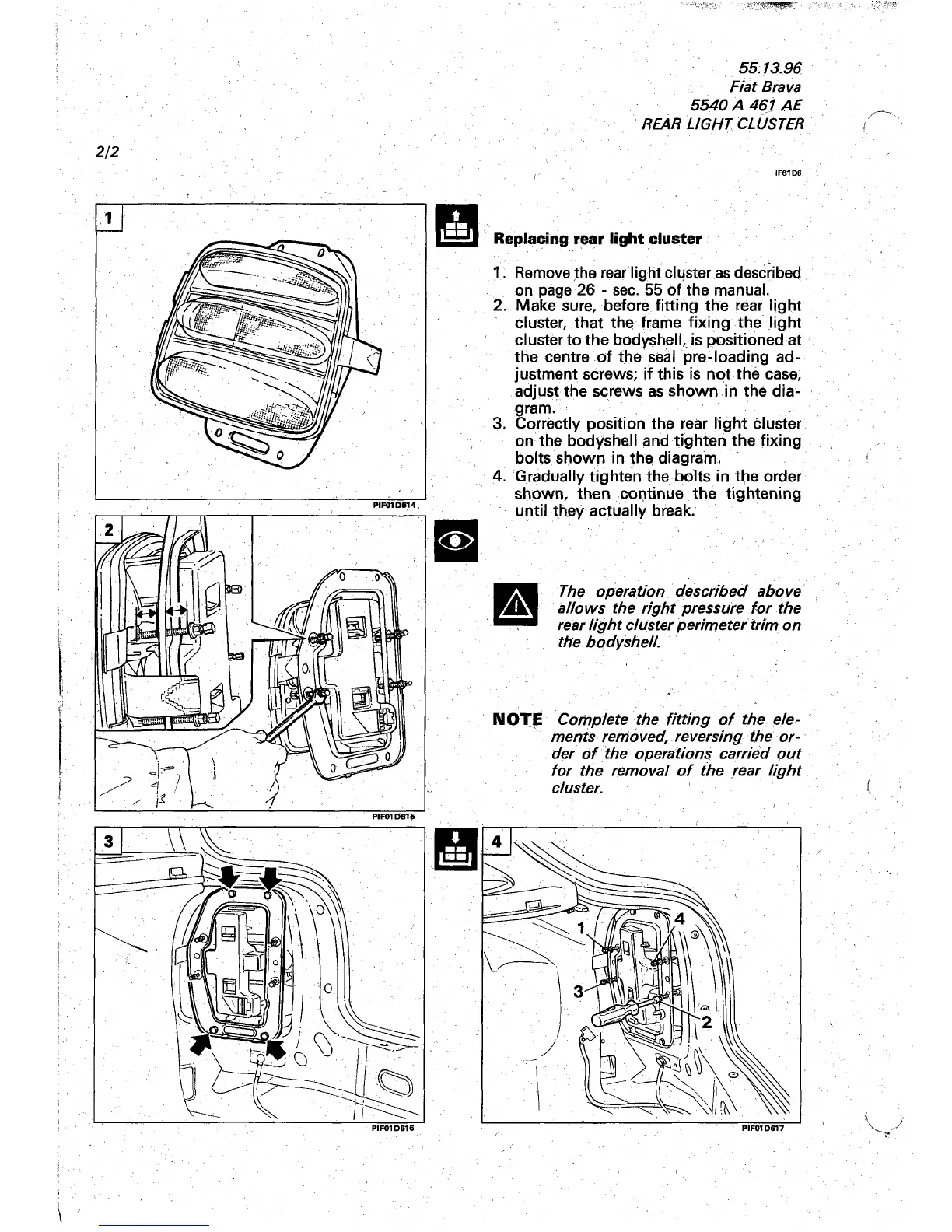

Replacing rear light cluster
1.
Remove the rear light cluster as described
on page 26 - sec. 55 of the manual.
2.
Make sure, before fitting the rear light
cluster, that the frame fixing the light
cluster to the bodyshell, is positioned at
the centre of the seal pre-loading ad-
justment screws; if this is not the case,
adjust the screws as shown in the dia-
gram.
3. Correctly position the rear light cluster
on the bodyshell and tighten the fixing
bolts shown in the diagram.
4.
Gradually tighten the bolts in the order
shown,
then continue the tightening
until they actually break.
The operation describee! above
allows the right pressure for the
rear light cluster perimeter trim on
the bodyshell.
NOTE Complete the fitting of the ele-
ments removed, reversing the or-
der of the operations carried out
for the removal of the rear light
cluster.
