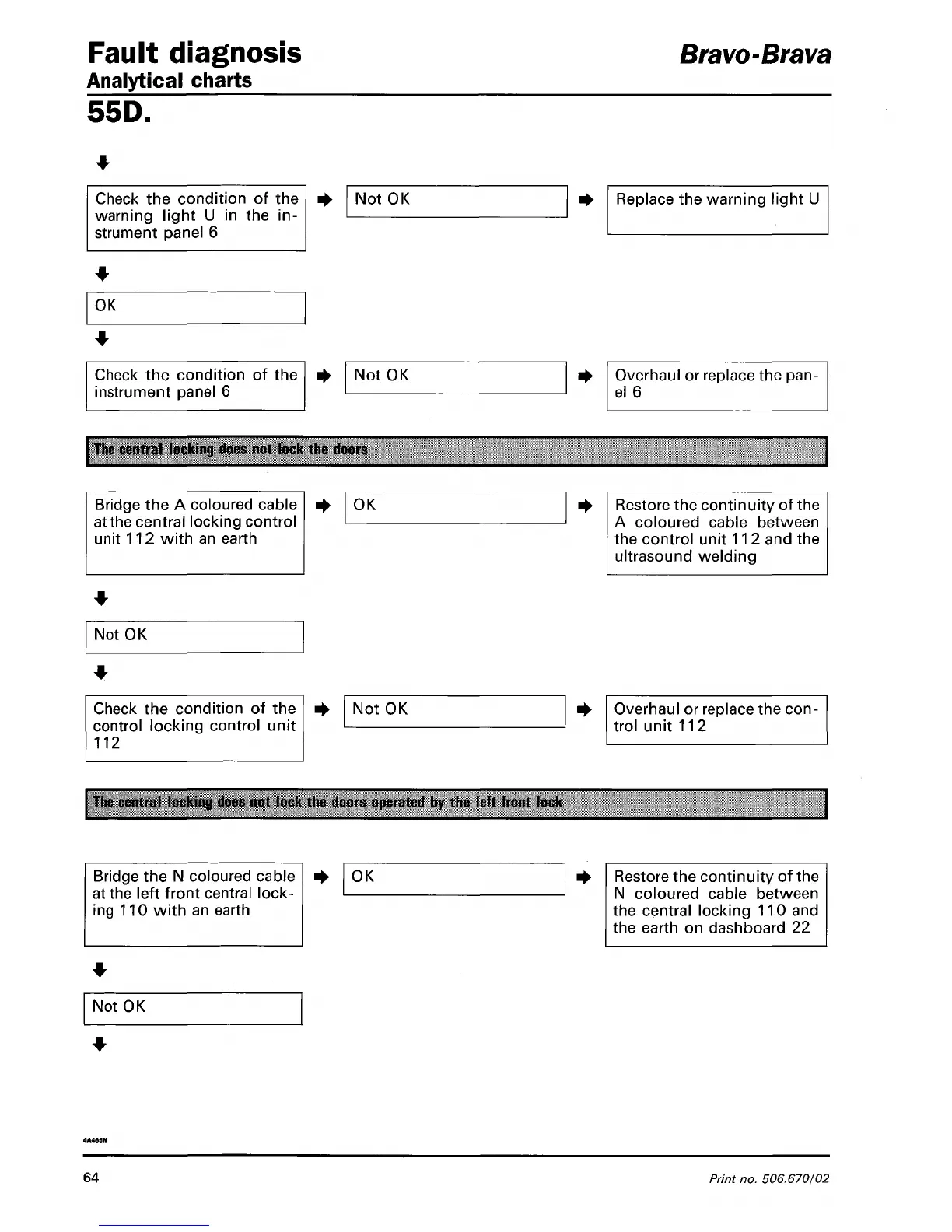

Fault diagnosis
Analytical charts
Bravo-Brava
55D.
Check the condition of the
warning light U in the in-
strument panel 6
Not OK Replace the warning light U
OK
Check the condition of the
instrument panel 6
Not OK Overhaul or replace the pan-
el 6
The central locking does not lock the doors
Bridge the A coloured cable
at the central locking control
unit 112 with an earth
OK
Restore the continuity of the
A coloured cable between
the control unit 112 and the
ultrasound welding
Not OK
Check the condition of the
control locking control unit
112
Not OK Overhaul or replace the con-
trol unit 112
The central locking does not lock the doors operated by the left front lock
Bridge the N coloured cable
at the left front central lock-
ing 110 with an earth
OK
Restore the continuity of the
N coloured cable between
the central locking 110 and
the earth on dashboard 22
Not OK
64
Print no. 506.670/02
