Bravo-Brava
Electrical system
Fiat CODE
55.

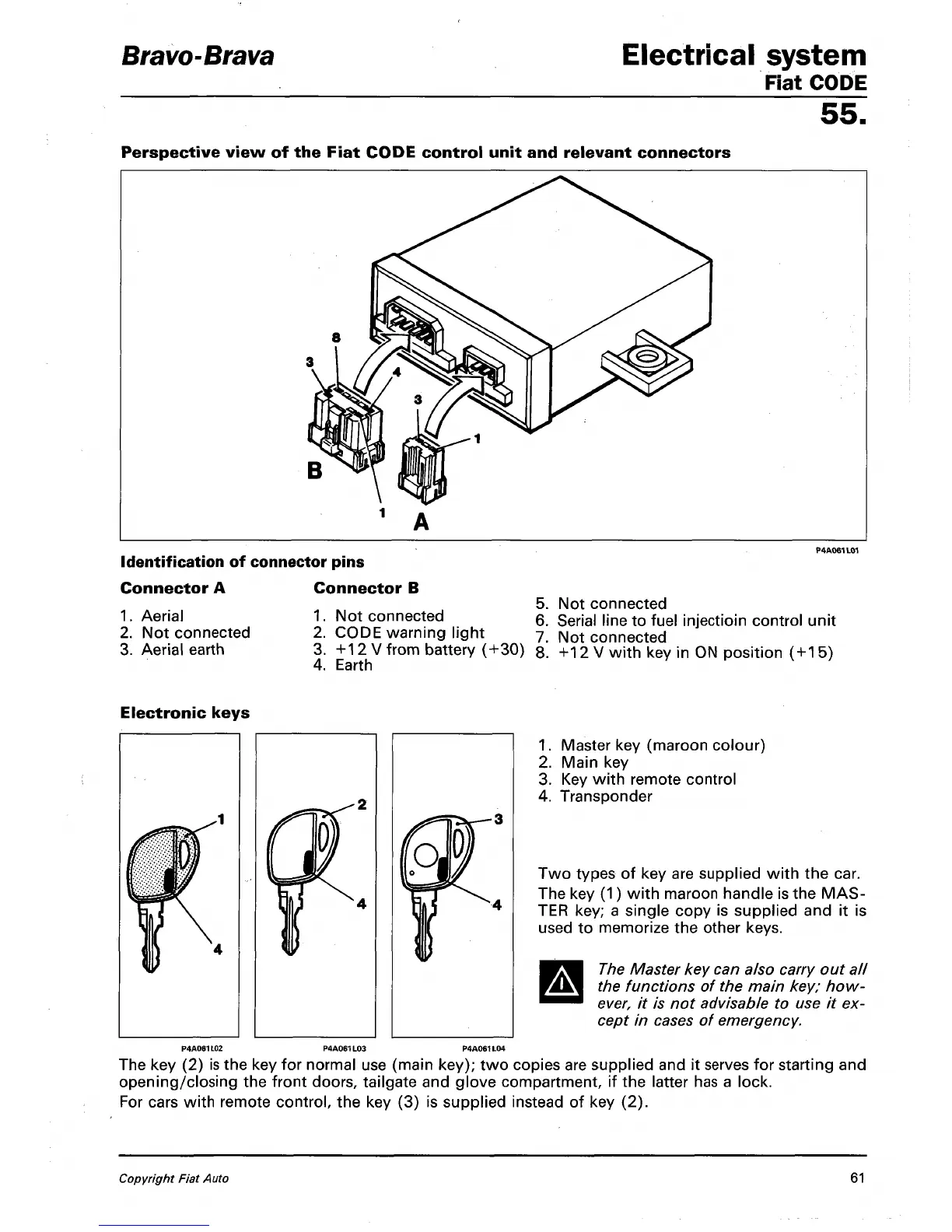

Perspective view of the Fiat CODE control unit and relevant connectors
Identification of connector pins
Connector A
1.
Aerial
2.
Not connected
3. Aerial earth
Connector B
1.
Not connected
2.
CODE warning light
3. +12 V from battery (+30)
4.
Earth
5. Not connected
6. Serial line to fuel injectioin control unit
7. Not connected
8. +12 V with key in ON position
( +
15)
Electronic keys
1.
Master key (maroon colour)
2.
Main key
3. Key with remote control
4.
Transponder
Two types of key are supplied with the car.
The key (1) with maroon handle is the MAS-
TER key; a single copy is supplied and it is
used to memorize the other keys.
The Master key can also cany out all
the functions of the main key;
how-
ever,
it is not advisable to use it ex-
cept in cases of emergency.
The key (2) is the key for normal use (main key); two copies are supplied and it serves for starting and
opening/closing the front doors, tailgate and glove compartment, if the latter has a lock.
For cars with remote control, the key (3) is supplied instead of key (2).
Copyright Fiat Auto
61
