Bravo-Brava
Bodywork
Seats
70.

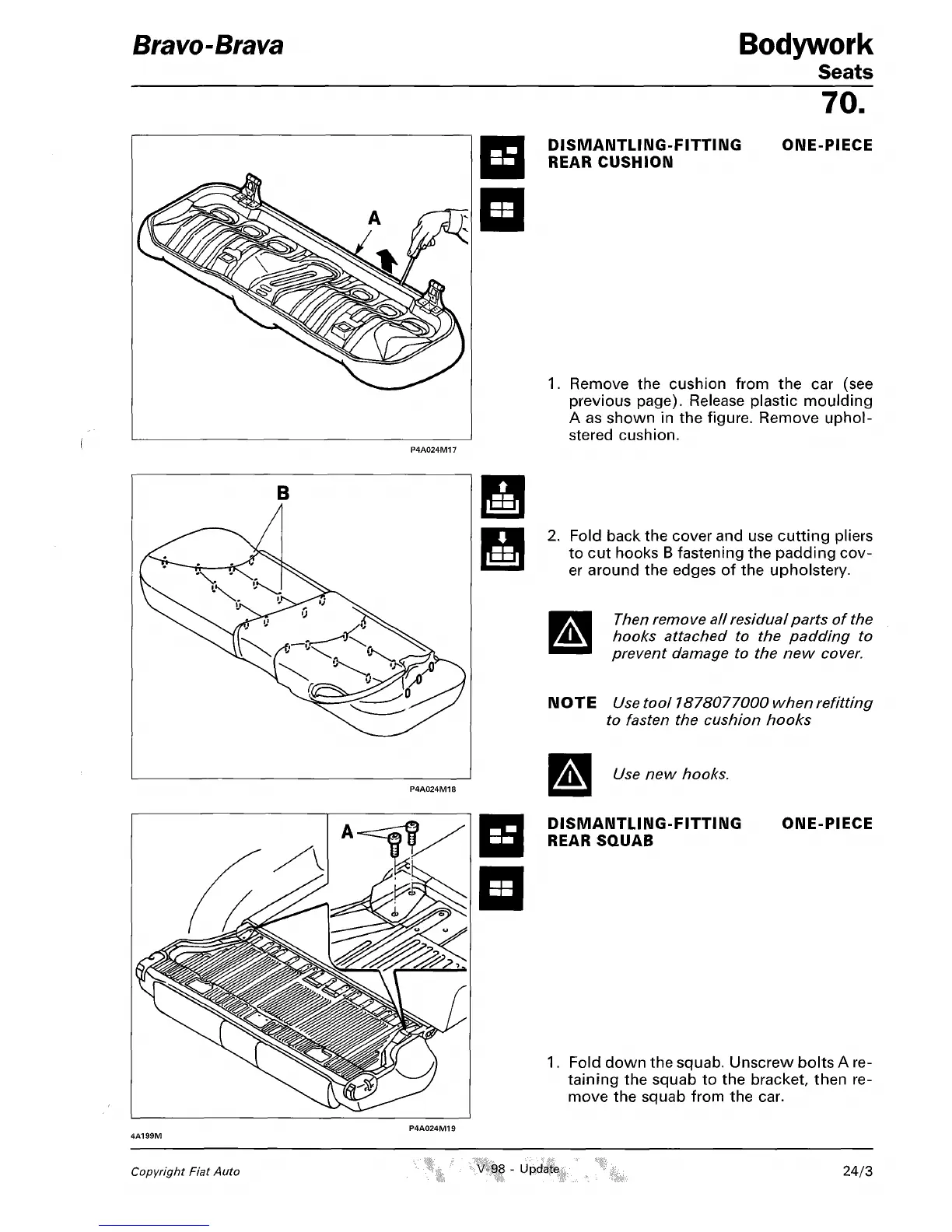

DISMANTLING-FITTING
REAR CUSHION
ONE-PIECE
1.
Remove the cushion from the car (see
previous page). Release plastic moulding
A as shown in the figure. Remove uphol-
stered cushion.
P4A024M17
Fold back the cover and use cutting pliers
to cut hooks B fastening the padding cov-
er around the edges of the upholstery.
Then remove all residual parts of the
hooks attached to the padding to
prevent damage to the new
cover.
NOTE Use tool 1878077000 when refitting
to fasten the cushion hooks
PSlCT
U
se new
hooks.
DISMANTLING-FITTING ONE-PIECE
REAR SQUAB
Fold down the squab. Unscrew bolts A re-
taining the squab to the bracket, then re-
move the squab from the car.
P4A024M19
Copyright Fiat Auto .
■■
'W|| "
u
R
d
#|§::'. 24/3
