Fiat Brava - Diagram of Hot-Wire Device

To Next Page

To Previous Page

Bravo-Brava

Electrical system

Protection and safety devices

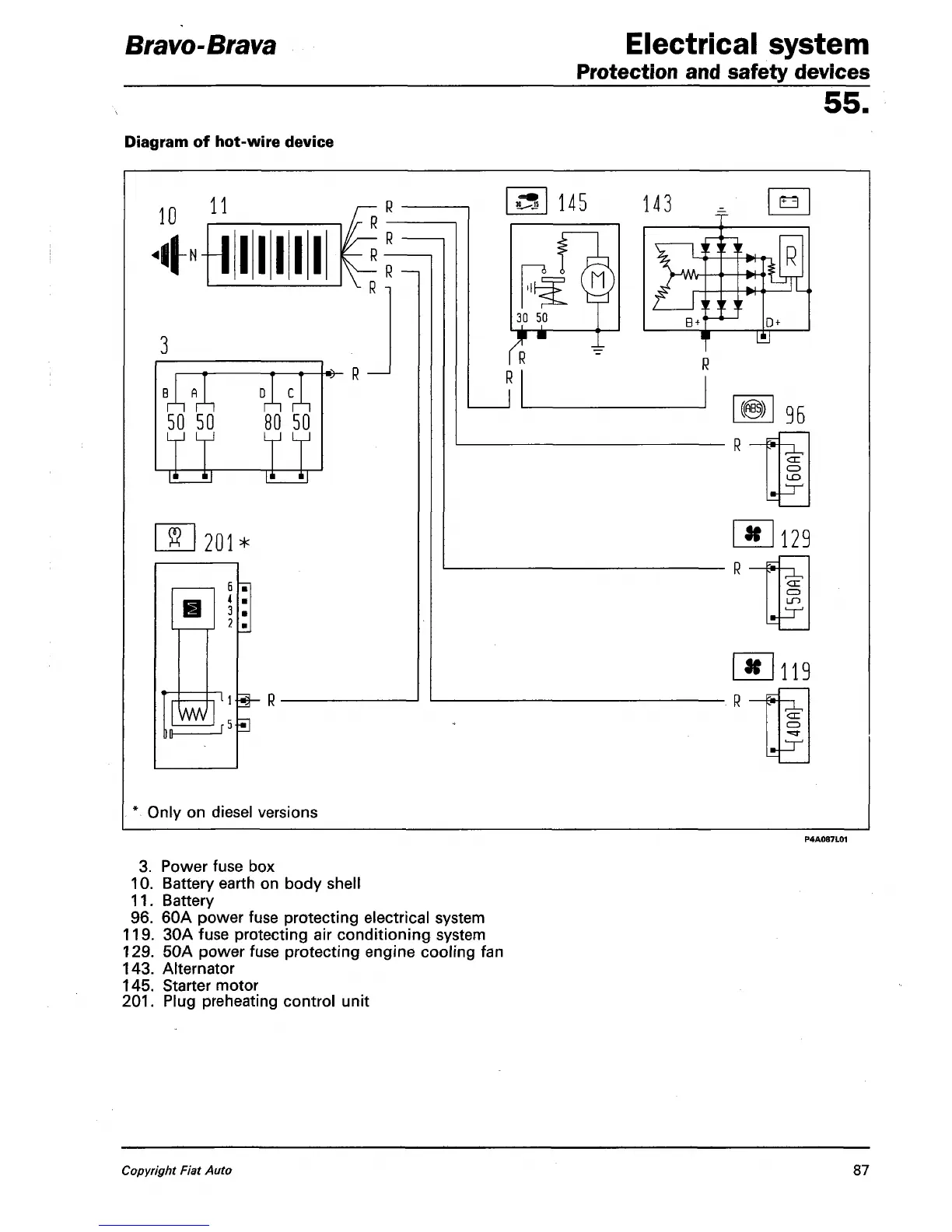

Diagram of hot-wire device

55.

•I MINI

50 80 50

*- R —'

ffi

201*

Only on diesel versions

145

143

y y

y y y.

*71 .

-■

119

3. Power fuse box

10.

Battery earth on body shell

11.

Battery

96.

60A power fuse protecting electrical system

119.

30A fuse protecting air conditioning system

129.

50A power fuse protecting engine cooling fan

143.

Alternator

145.

Starter motor

201.

Plug preheating control unit
