Bravo-Brava

Bodywork

Bodyshell

70.

TYPICAL MEASUREMENTS

Measuring windscreen housing and engine compartment dimensions

The figures for the housings, given below, are taken from the technical designs and are subject to toler-

ances of around ± 2 mm.

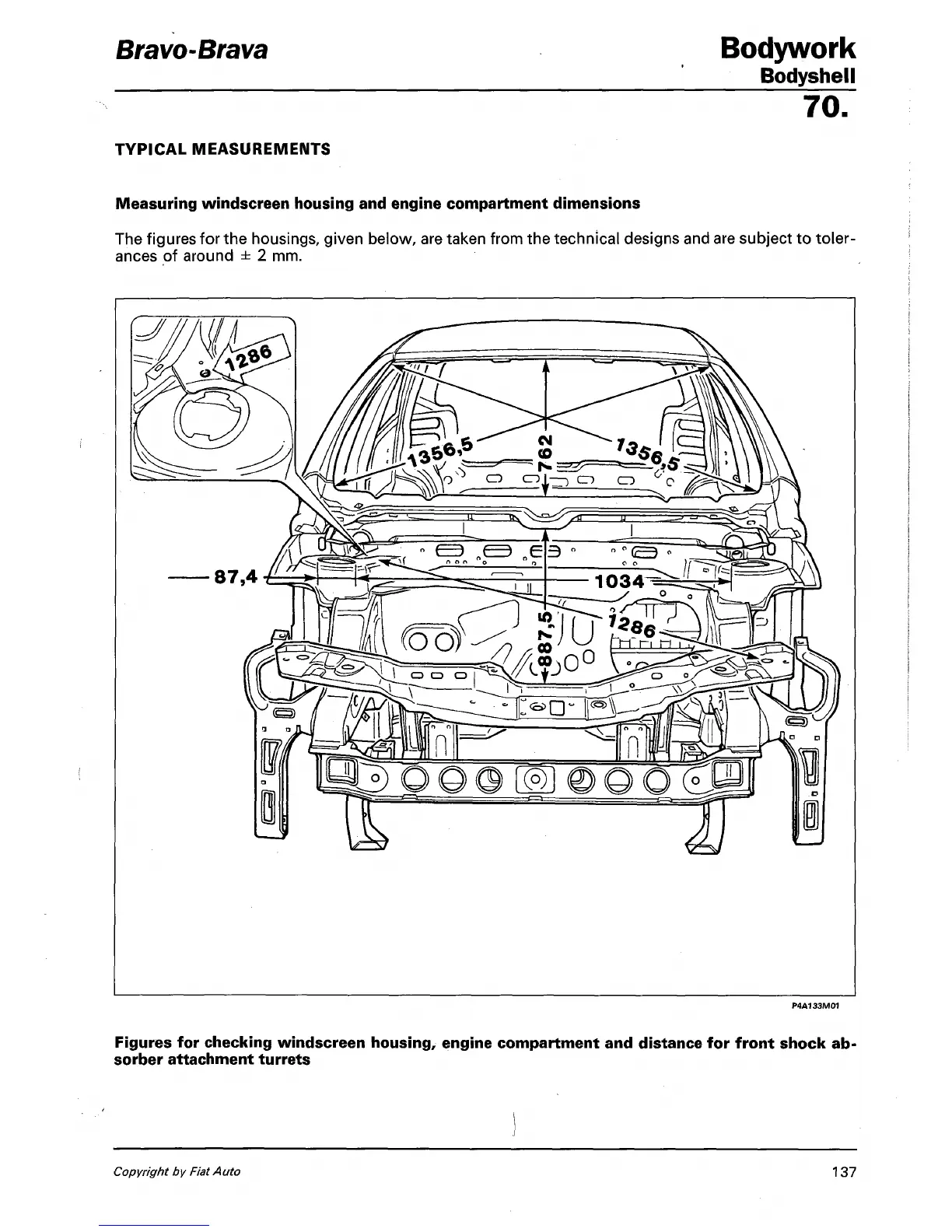

Figures for checking windscreen housing, engine compartment and distance for front shock ab-

sorber attachment turrets

137
