Bravo-Brava

Electrical equipment

Air bag

55.

P4A110U5

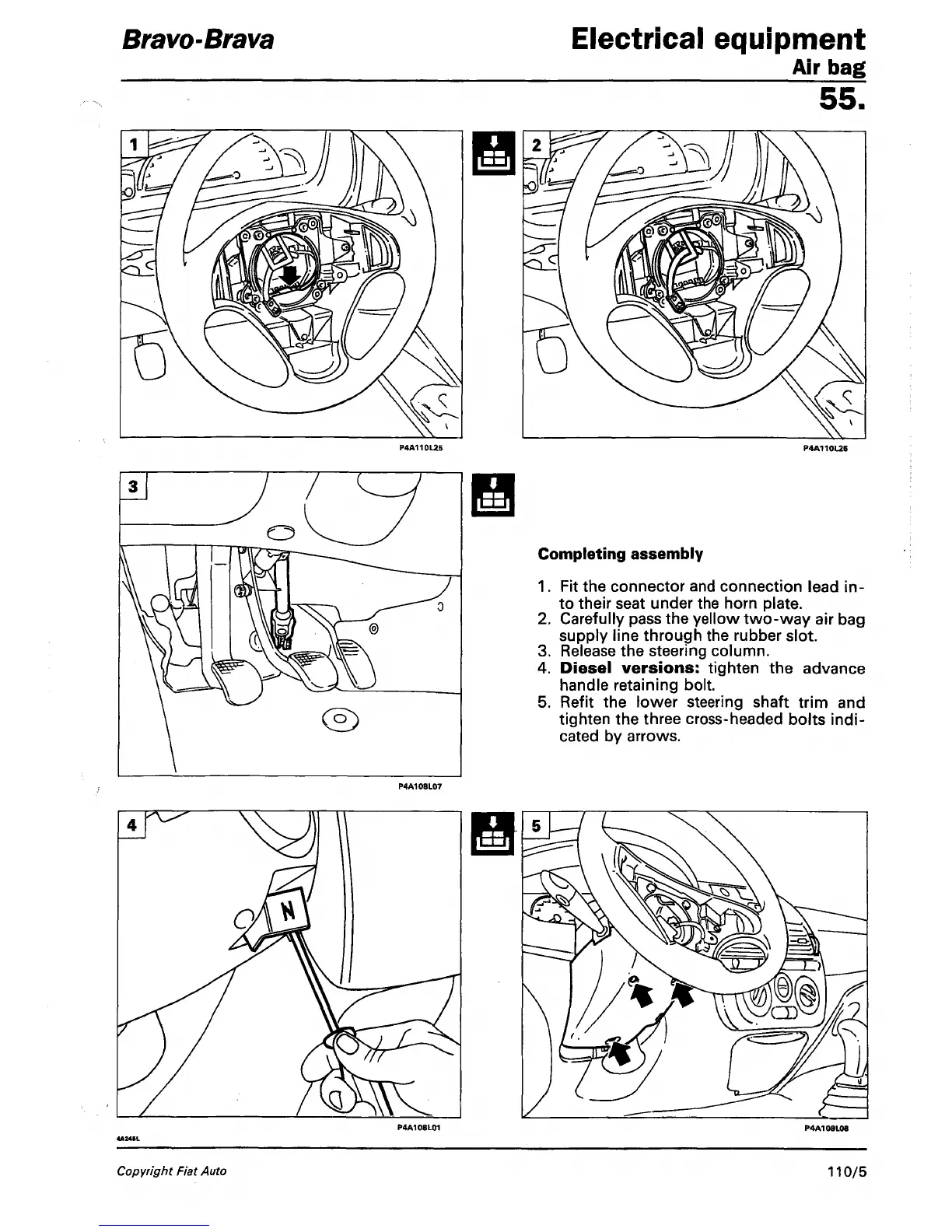

Completing assembly

Fit the connector and connection lead in-

to their seat under the horn plate.

Carefully pass the yellow two-way air bag

supply line through the rubber slot.

3. Release the steering column.

Diesel versions: tighten the advance

handle retaining bolt.

5. Refit the lower steering shaft trim and

tighten the three cross-headed bolts

indi-

cated by arrows.

P4A108L01

P4A108L08

110/5
