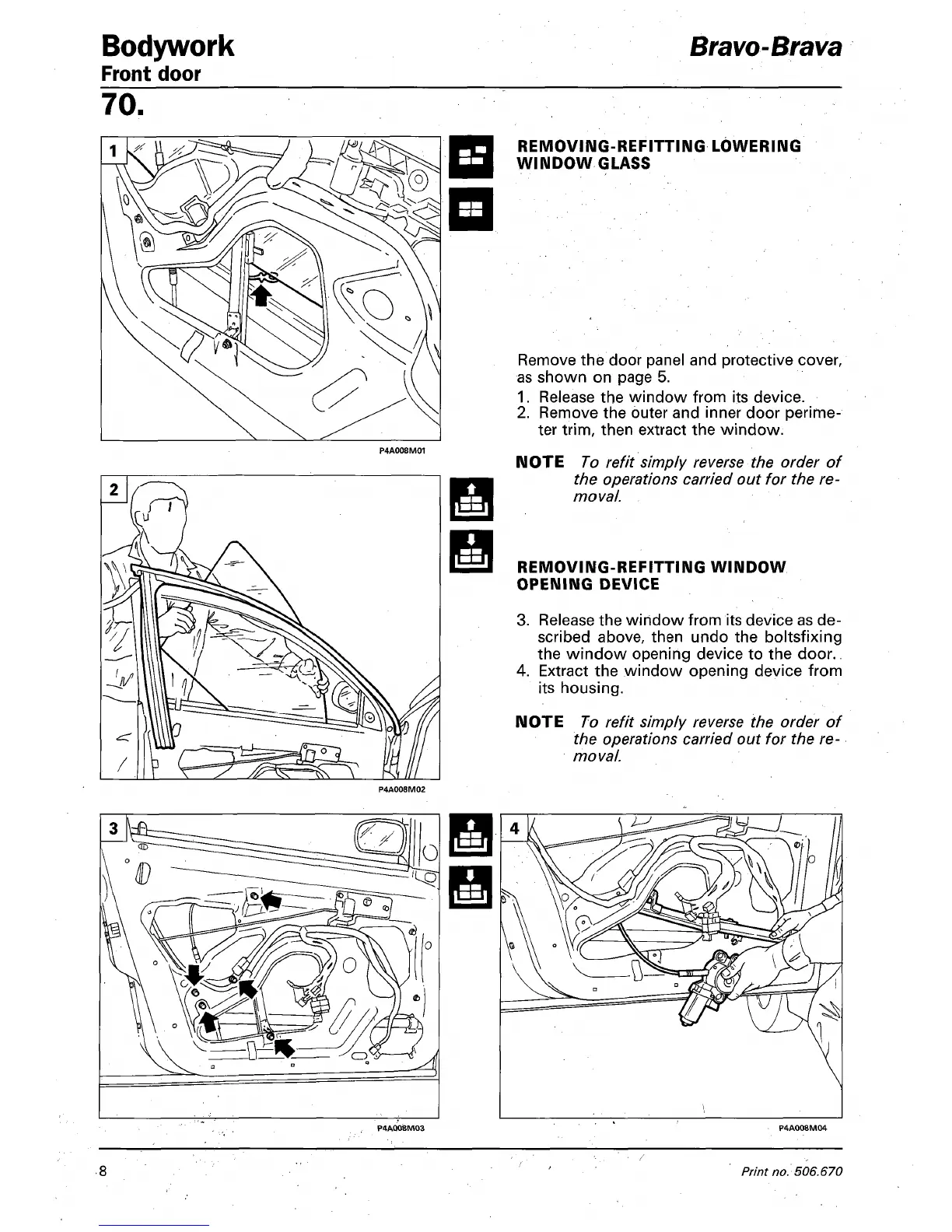

Bodywork
Front door
Bravo-Brava
70.
REMOVING-REFITTING LOWERING
WINDOW GLASS
Remove the door panel and protective cover,
as shown on page 5.
1.
Release the window from its device.
2.
Remove the outer and inner door perime-
ter
trim,
then extract the window.
NOTE To refit simply reverse the order of
the operations carried out for the re-
moval.
REMOVING-REFITTING WINDOW
OPENING DEVICE
3. Release the window from its device as de-
scribed above, then undo the boltsfixing
the window opening device to the door.
4.
Extract the window opening device from
its housing.
NOTE To refit simply reverse the order of
the operations carried out for the re-
moval.
P4A008M02
P4A008M04
8
Print no. 506.670
