Electrical system
Lighting
Bravo-Brava
55.
ELECTRIC HEADLAMP ADJUSTER
The vertical alignment of the front lights clus-
ters is adjusted in accordance with the car
load by means of a potentiometer located on
the instrument panel.
Four numbers are engraved on this poten-
tiometer, corresponding to four different load
conditions.
- Position 0:
driver only or with passenger on front seat.
- Position 1:
all seats occupied (5 persons).
- Position 2:
all seats occupied plus load in the luggage
compartment.
- Position 3:
driver plus maximum permitted load in
lug-
gage compartment.

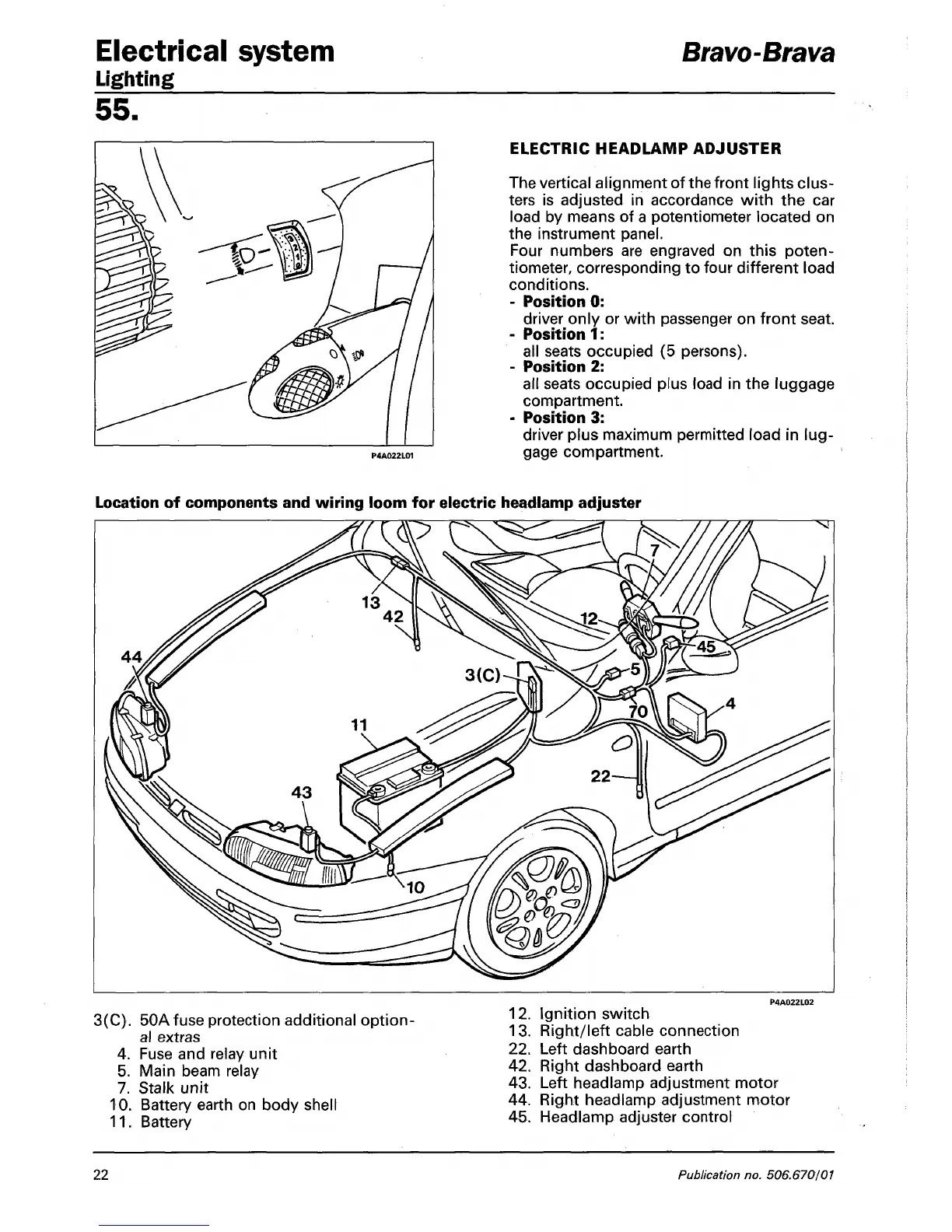

Location of components and wiring loom for electric headlamp adjuster
3(C).
4.
5.
7.
10.
11.
50Afuse protection additional option-
al extras
Fuse and relay unit
Main beam relay
Stalk unit
Battery earth on body shell
Battery
12.
Ignition switch
13.
Right/left cable connection
22.
Left dashboard earth
42.
Right dashboard earth
43.
Left headlamp adjustment motor
44.
Right headlamp adjustment motor
45.
Headlamp adjuster control
